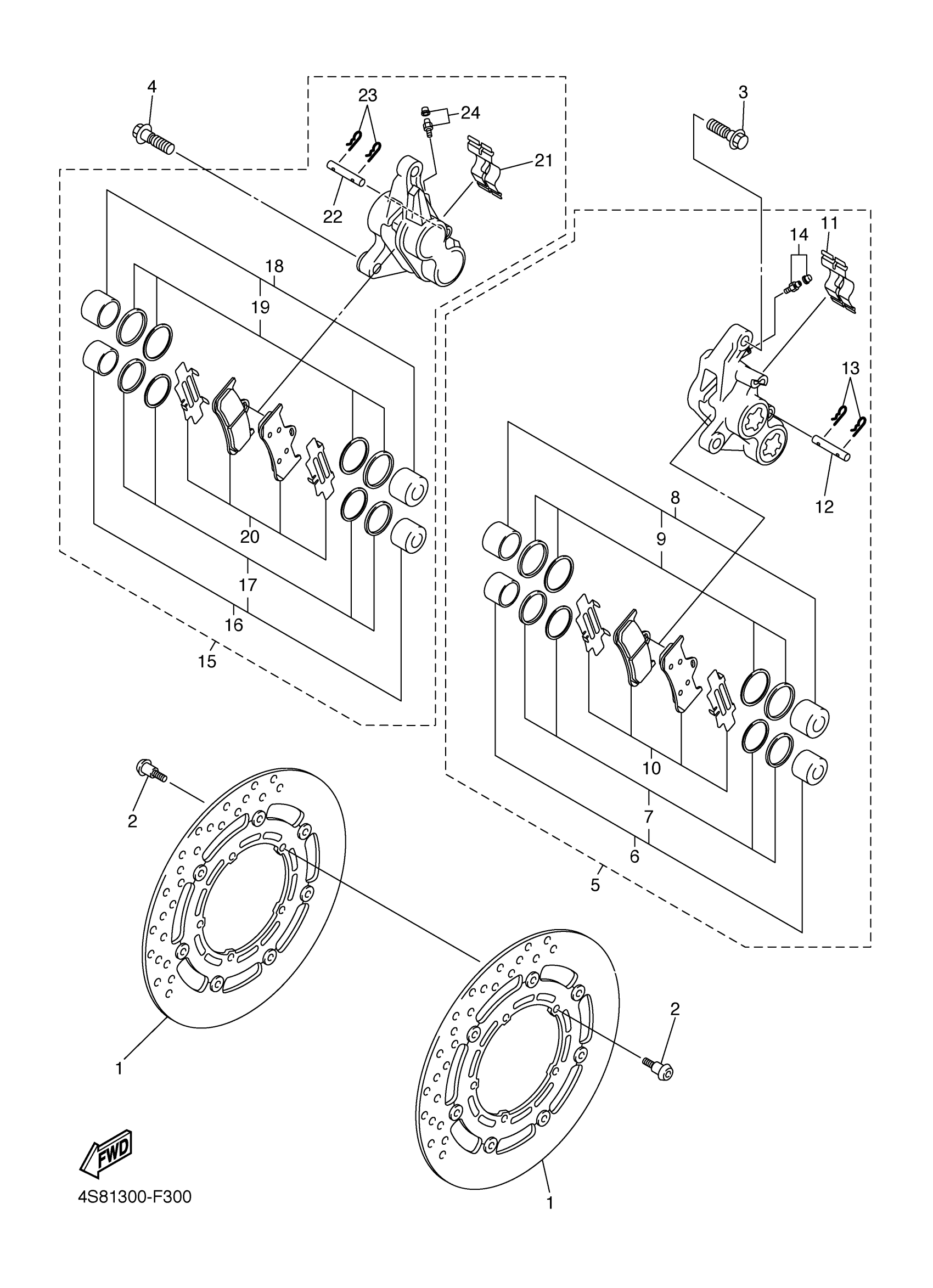

Yamaha FZS6WC (FZ6 CA) 4S83 2007 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5VX-2581T-01-00

$404.45

2

BOLT

90109-06254-00

$2.57

3

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

4

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

5

CALIPER ASSY (LEFT)

4S8-2580T-00-00

Unavailable

6

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

7

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

8

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

9

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

10

BRAKE PAD KIT

5VN-25805-00-00

$52.60

11

SUPPORT, PAD

4SV-25919-00-00

$20.59

12

PIN, PAD

4SV-25924-00-00

$34.81

13

CLIP, PAD PIN

3GM-25925-00-00

$9.15

14

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

15

CALIPER ASSY (RIGHT)

4S8-2580U-00-00

Unavailable

16

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

17

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

18

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

19

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

20

BRAKE PAD KIT

5VN-25805-00-00

$52.60

21

SUPPORT, PAD

4SV-25919-00-00

$20.59

22

PIN, PAD

4SV-25924-00-00

$34.81

23

CLIP, PAD PIN

3GM-25925-00-00

$9.15

24

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable
