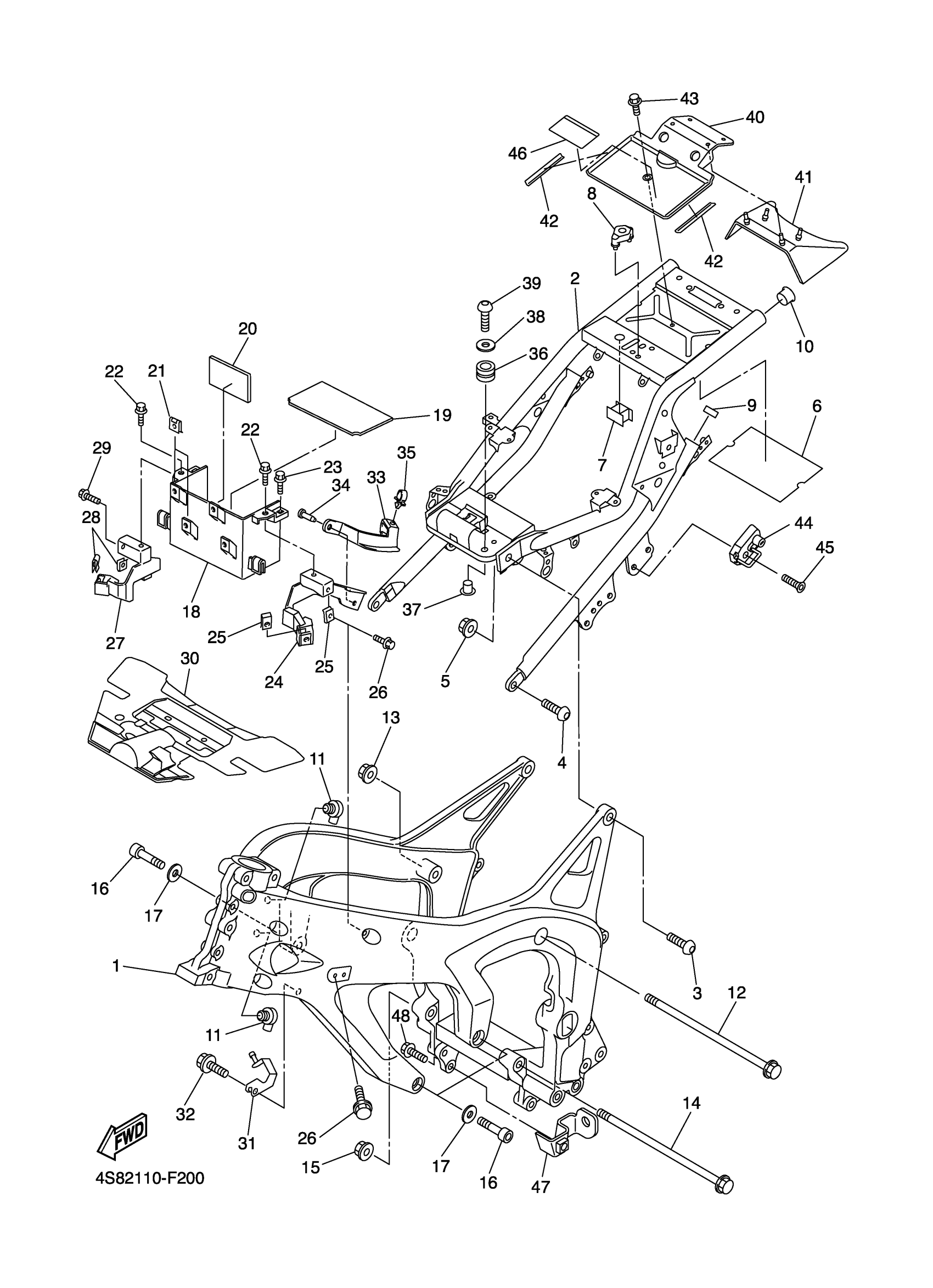

Yamaha FZS6WC (FZ6 CA) 4S83 2007 FRAME Diagram
#
1
FRAME COMP.
4S8-21110-09-00
Unavailable
2
REAR FRAME COMP.
4S8-21190-09-00
Unavailable
3
SCREW
90149-10006-00
Unavailable
4
SCREW
90149-10001-00
Unavailable
6
SEAL
5VX-21268-00-00
Unavailable
7
SEAL
5VX-2139B-00-00
Unavailable
9
PLUG
3YJ-24481-00-00
Unavailable
11
PLUG, BLIND
5VX-21279-10-00
Unavailable
16
BOLT,SOCKET
91314-10050-00
Unavailable
17
WASHER, PLATE
90201-10020-00
Unavailable
18
BOX, BATTERY
5VX-2177G-00-00
Unavailable
19
SEAT, BATTERY
5VX-82122-00-00
Unavailable
20
DAMPER, PLATE 1
5EJ-2414H-00-00
Unavailable
21
NUT, SPRING(4ES)
90183-06069-00
Unavailable
22
BOLT
90109-06060-00
Unavailable
23
BOLT, FLANGE
95817-06025-00
Unavailable
24
BRACKET
5VX-21238-00-00
Unavailable
25
NUT, SPRING
90183-060A1-00
Unavailable
26
BOLT, FLANGE
95817-06020-00
Unavailable
27
BRACKET 2
5VX-21239-00-00
Unavailable
28
NUT, SPRING
90183-060A1-00
Unavailable
29
BOLT, FLANGE
95817-06020-00
Unavailable
30
COVER 2
5VX-2117M-01-00
Unavailable
31
BRACKET
5VX-21249-00-00
Unavailable
32
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
33
COVER
5VX-2135F-00-00
Unavailable
34
RIVET
90269-08069-00
Unavailable
35
CLAMP(3XV)
90464-15157-00
Unavailable
36
GROMMET (2T4)
90480-12237-00
Unavailable
37
COLLAR
90387-06078-00
Unavailable
38
WASHER, PLATE
90201-06055-00
Unavailable
39
BOLT, BUTTON
92017-06020-00
Unavailable
40
COVER
5VX-2139W-00-00
Unavailable
41
COVER 2
5VX-2139R-00-00
Unavailable
42
SEAL
5VX-21269-00-00
Unavailable
43
BOLT(4EW)
90109-067F4-00
Unavailable
44
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
45
SCREW (4G1)
90149-06154-00
Unavailable
46
LABEL, WARNING
5VX-2117B-01-00
Unavailable
47
BRACKET
4S8-2119V-00-00
Unavailable
48
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
