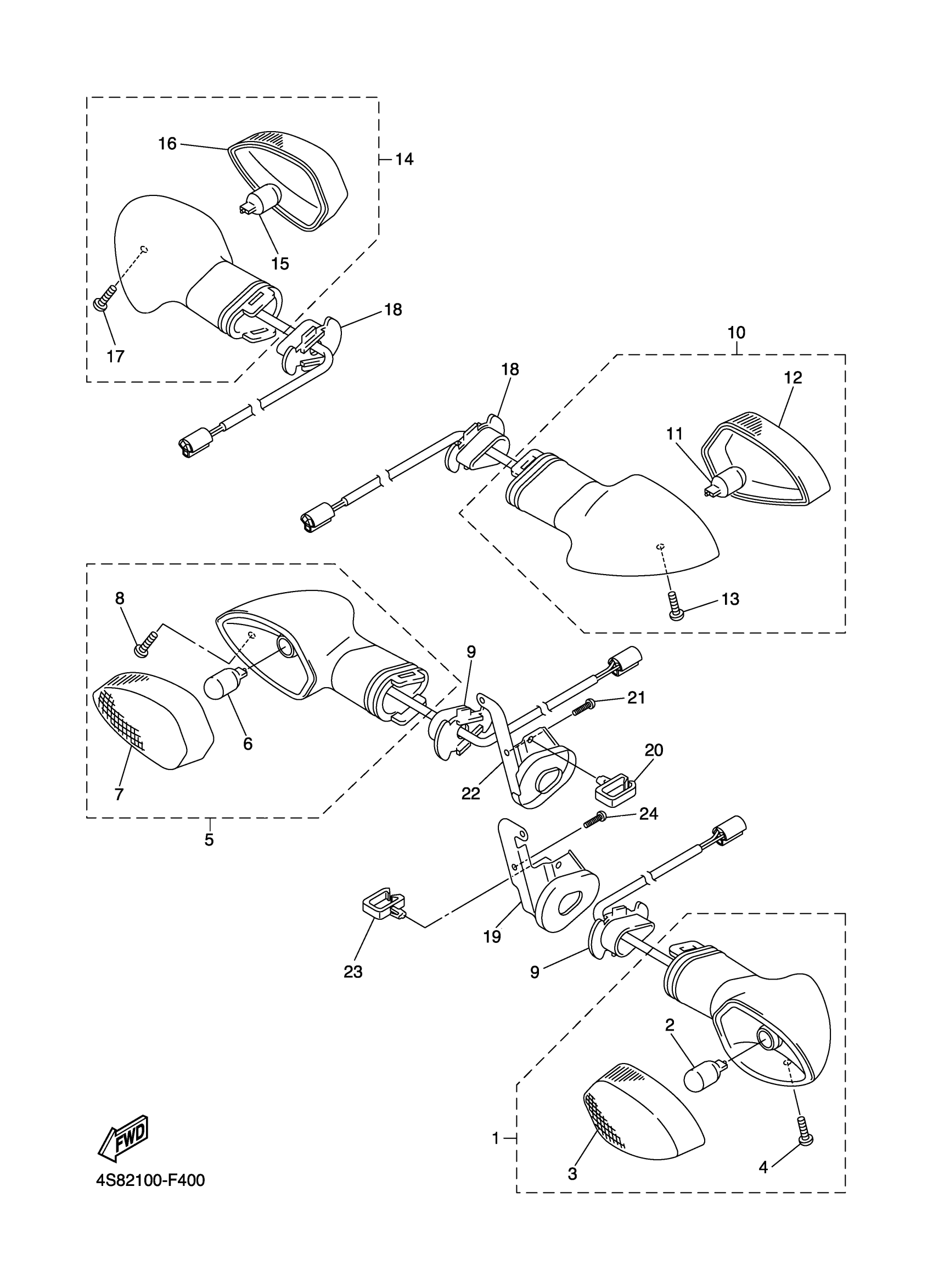

Yamaha FZS6WC (FZ6 CA) 4S83 2007 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5PW-83310-10-00

$87.43

2

BULB, FLASHER

5GJ-83331-00-00

$11.61

3

LENS COMP

5PW-8333A-10-00

$26.90

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

FRONT FLASHER LIGHT ASSY 2

5PW-83320-11-00

Unavailable

6

BULB, FLASHER

5GJ-83331-00-00

$11.61

7

LENS COMP

5PW-8334A-10-00

$28.41

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

STAY, FLASHER 1

5PW-83318-00-00

$5.96

10

REAR FLASHER LIGHT ASSY 1

5VX-83330-10-00

Unavailable

11

BULB, FLASHER

5PW-83331-00-00

$11.32

12

LENS COMP

5PW-8334A-10-00

$28.41

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

REAR FLASHER LIGHT ASSY 2

5VX-83340-10-00

Unavailable

15

BULB, FLASHER

5PW-83331-00-00

$11.32

16

LENS COMP

5PW-8333A-10-00

$26.90

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

STAY, FLASHER 1

5PW-83318-00-00

$5.96

19

STAY, SIDE 1

4S8-2831U-00-00

Unavailable

20

CLAMP

90464-06005-00

Unavailable

21

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

22

STAY, SIDE 1

4S8-2832U-00-00

Unavailable

23

CLAMP

90464-06005-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable
