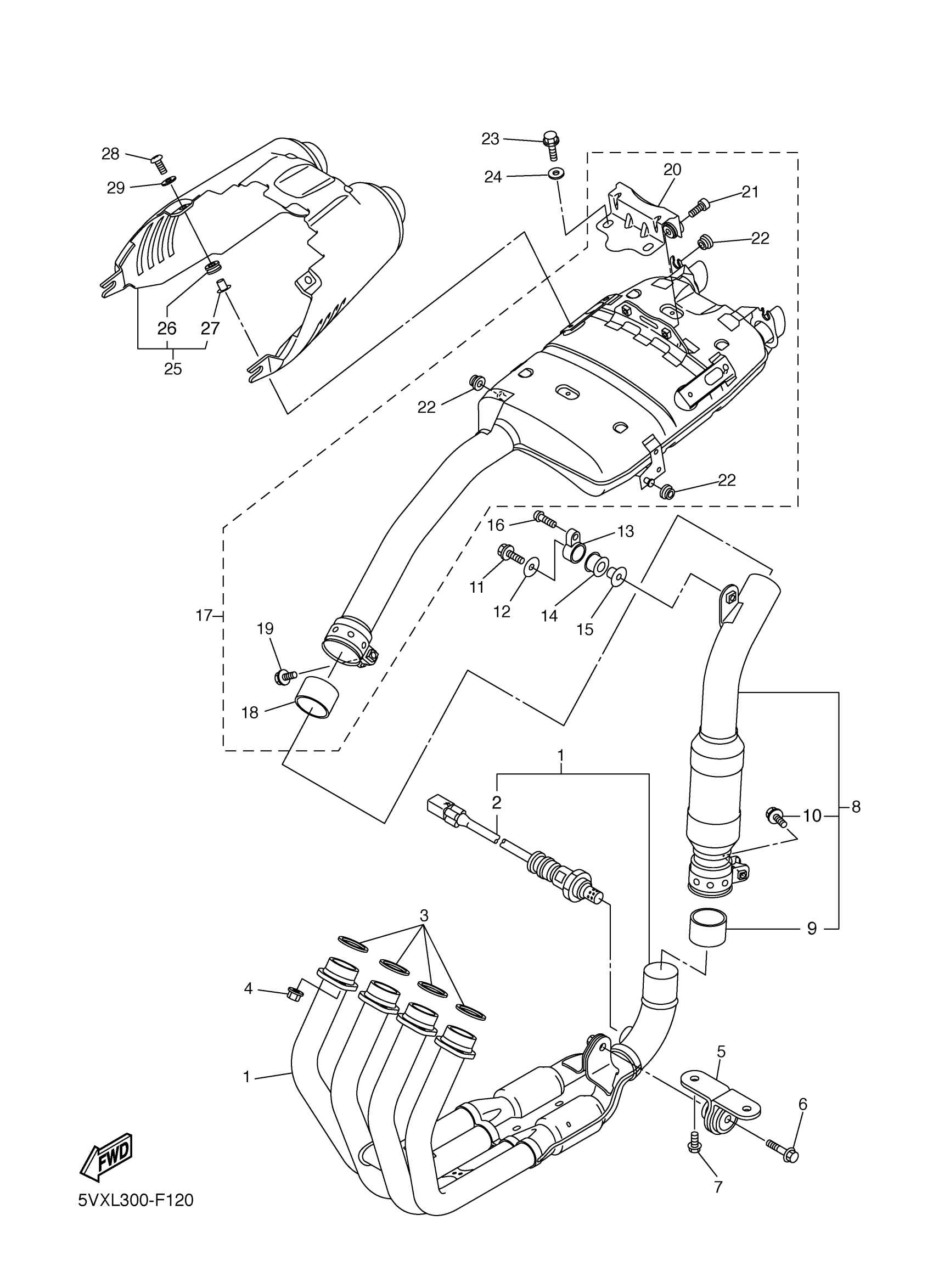

Yamaha FZS6WC (FZ6 CA) 4S83 2007 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSY 1
4S8-14610-00-00
Unavailable
2
SENSOR
2D1-8592A-00-00
Unavailable
5
STAY, MUFFLER 1
4S8-21445-00-00
Unavailable
8
CATALYST ASSY.
4S8-14740-00-00
Unavailable
15
COLLAR(3MA)
90387-082W9-00
Unavailable
16
BOLT, BUTTON HEAD
92014-08045-00
Unavailable
17
MUFFLER ASSY 1
5VX-14710-01-00
Unavailable
18
GASKET, MUFFLER
5EB-14714-01-00
Unavailable
20
BRACKET, SILENCER 3
5VX-1467K-00-00
Unavailable
21
BOLT, SOCKET
91317-08030-00
Unavailable
22
GROMMET
90480-10017-00
Unavailable
23
BOLT, FLANGE
95817-08014-00
Unavailable
24
WASHER, PLATE
90201-082U5-00
Unavailable
25
PROTECTOR ASSY
5VX-14708-10-00
Unavailable
26
GROMMET
90480-12006-00
Unavailable
27
COLLAR(80L)
90387-061N6-00
Unavailable
28
SCREW, BIND (J17)
98980-06020-00
Unavailable
29
WASHER, PROTECTOR
4FB-14766-00-00
Unavailable
