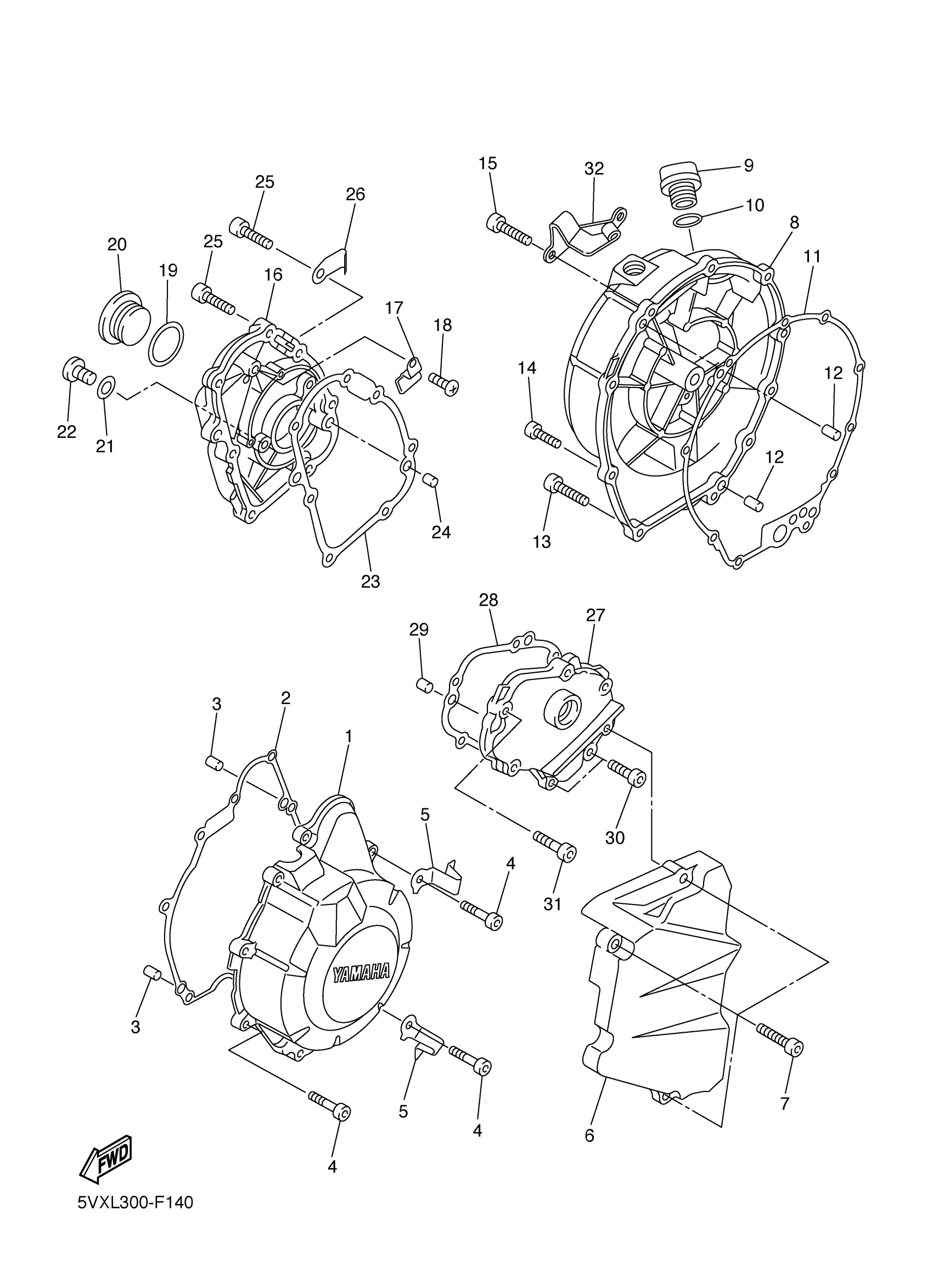

Yamaha FZS6WC (FZ6 CA) 4S83 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

36P-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5VX-15451-01-00

Unavailable

3

PIN, DOWEL

99530-08012-00

Unavailable

4

BOLT,SOCKET HEAD

91314-06025-00

$8.49

5

CLAMP

90465-08045-00

Unavailable

6

COVER, CHAIN CASE

1B3-15418-00-00

Unavailable

7

BOLT,SOCKET HEAD

91314-06025-00

$8.49

8

COVER, CRANKCASE 2

1B3-15421-00-00

Unavailable

9

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

10

O-RING(1KT)

93210-27778-00

$8.49

11

GASKET, CRANKCASE COVER 2

5SL-15461-01-00

$29.99

12

PIN, DOWEL

93608-17263-00

$2.92

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

BOLT,SOCKET HEAD

91314-06025-00

$8.49

15

BOLT, SOCKET

91314-06030-00

$8.49

16

COVER, OIL PUMP

1B3-15416-00-00

Unavailable

17

CLAMP

90465-14011-00

Unavailable

18

SCREW, PAN

98517-06012-00

Unavailable

19

O-RING (341)

93210-32172-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-32004-00

Unavailable

21

. GASKET

90430-08143-00

Unavailable

22

BOLT, BUTTON HEAD

92014-08014-00

Unavailable

23

GASKET, OIL PUMP COVER 1

5SL-15456-01-00

Unavailable

24

PIN, DOWEL

99530-08012-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

CLAMP

90465-10042-00

Unavailable

27

COVER, GENERATOR 2

1B3-15425-00-00

Unavailable

28

GASKET, COVER PINION 2

5VX-15463-01-00

Unavailable

29

PIN, DOWEL

99530-08012-00

Unavailable

30

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

31

BOLT,SOCKET HEAD

91314-06025-00

$8.49

32

HOLDER, CLUTCH CABLE

5VX-15441-00-00

Unavailable
