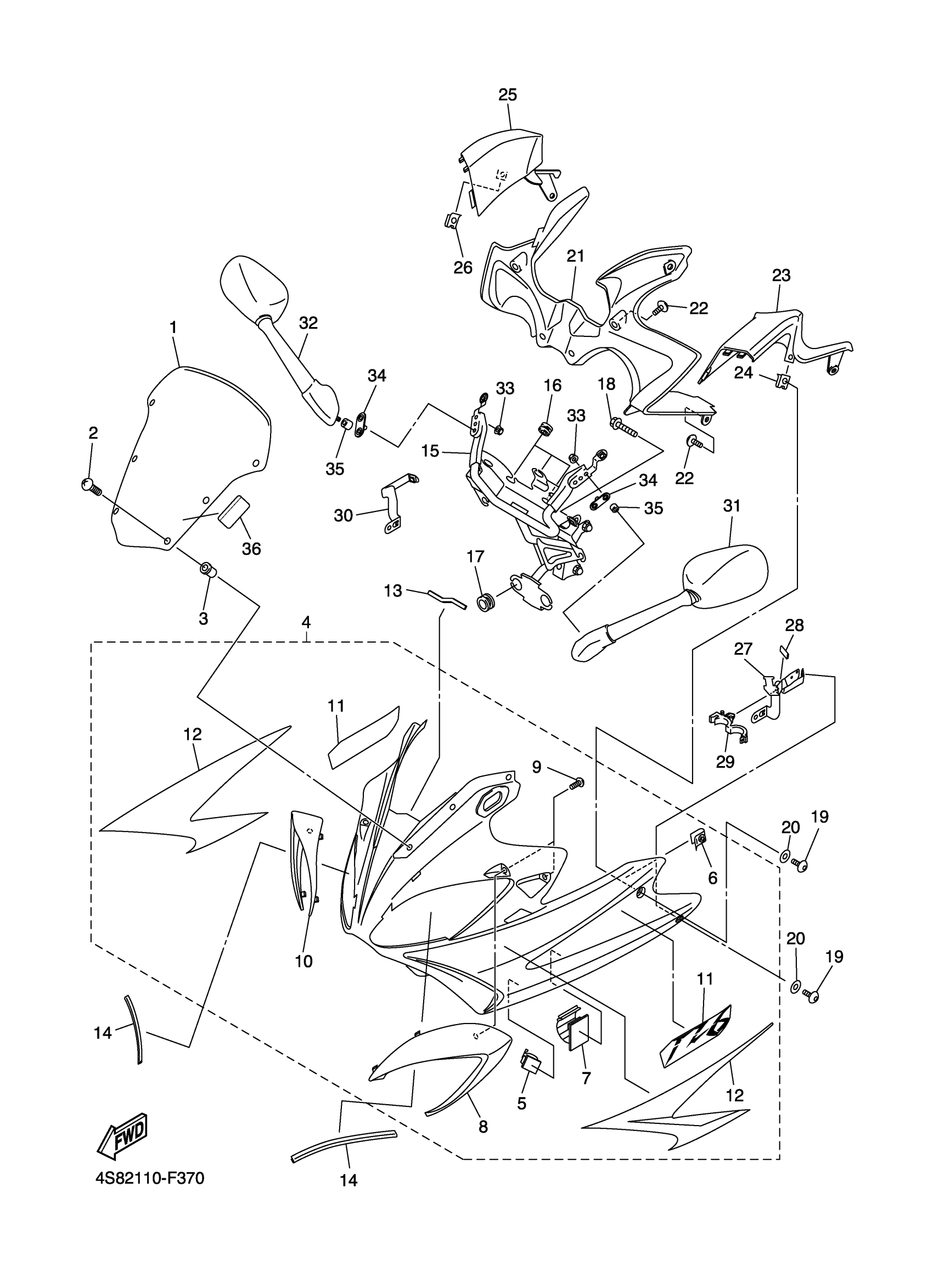

Yamaha FZS6WC (FZ6 CA) 4S83 2007 COWLING 1 Diagram
#
1
WINDSHIELD
4S8-28381-10-00
Unavailable
4
BODY, FRONT UPPER 1 (DEEP RED METALLIC K)
4S8-Y283G-60-P1
Unavailable
4
BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC C)
4S8-Y283G-70-P2
Unavailable
8
MOLE 1
4S8-28345-00-P1
Unavailable
8
MOLE 1
4S8-28345-00-P2
Unavailable
10
MOLE 2
4S8-28346-00-P1
Unavailable
10
MOLE 2
4S8-28346-00-P2
Unavailable
11
EMBLEM
4S8-28328-00-00
Unavailable
11
EMBLEM
4S8-28328-10-00
Unavailable
12
GRAPHIC SET
4S8-283B1-10-00
Unavailable
12
GRAPHIC SET
4S8-283B1-20-00
Unavailable
13
MOLE 3
4S8-28347-00-00
Unavailable
14
TRIM
4S8-28376-00-00
Unavailable
15
STAY 1
4S8-28356-00-00
Unavailable
16
DAMPER
3C3-83513-00-00
Unavailable
17
GROMET (3X3)
90480-14229-00
Unavailable
18
BOLT, WITH WASHER
90119-08081-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
20
WASHER, PLATE
90202-06170-00
Unavailable
21
PANEL, INNER 1
4S8-2836K-00-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
23
PANEL, INNER 2
4S8-2836L-00-00
Unavailable
24
NUT, SPRING(4ES)
90183-06069-00
Unavailable
25
PANEL, INNER 3
4S8-2836M-00-00
Unavailable
26
NUT, SPRING(4ES)
90183-06069-00
Unavailable
27
BRACKET 3
4S8-2836F-00-00
Unavailable
28
MOLE, SIDE COVER 1
1FK-2171L-00-00
Unavailable
29
CLAMP
90464-16006-00
Unavailable
30
BRACKET 2
4S8-2836E-00-00
Unavailable
31
REAR VIEW MIRROR ASSY (LEFT)
4S8-26280-00-00
Unavailable
32
REAR VIEW MIRROR ASSY (RIGHT)
4S8-26290-00-00
Unavailable
33
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
34
PLATE, MIRROR FITTING 1
5VY-26298-00-00
Unavailable
35
COLLAR
90387-06106-00
Unavailable
36
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
