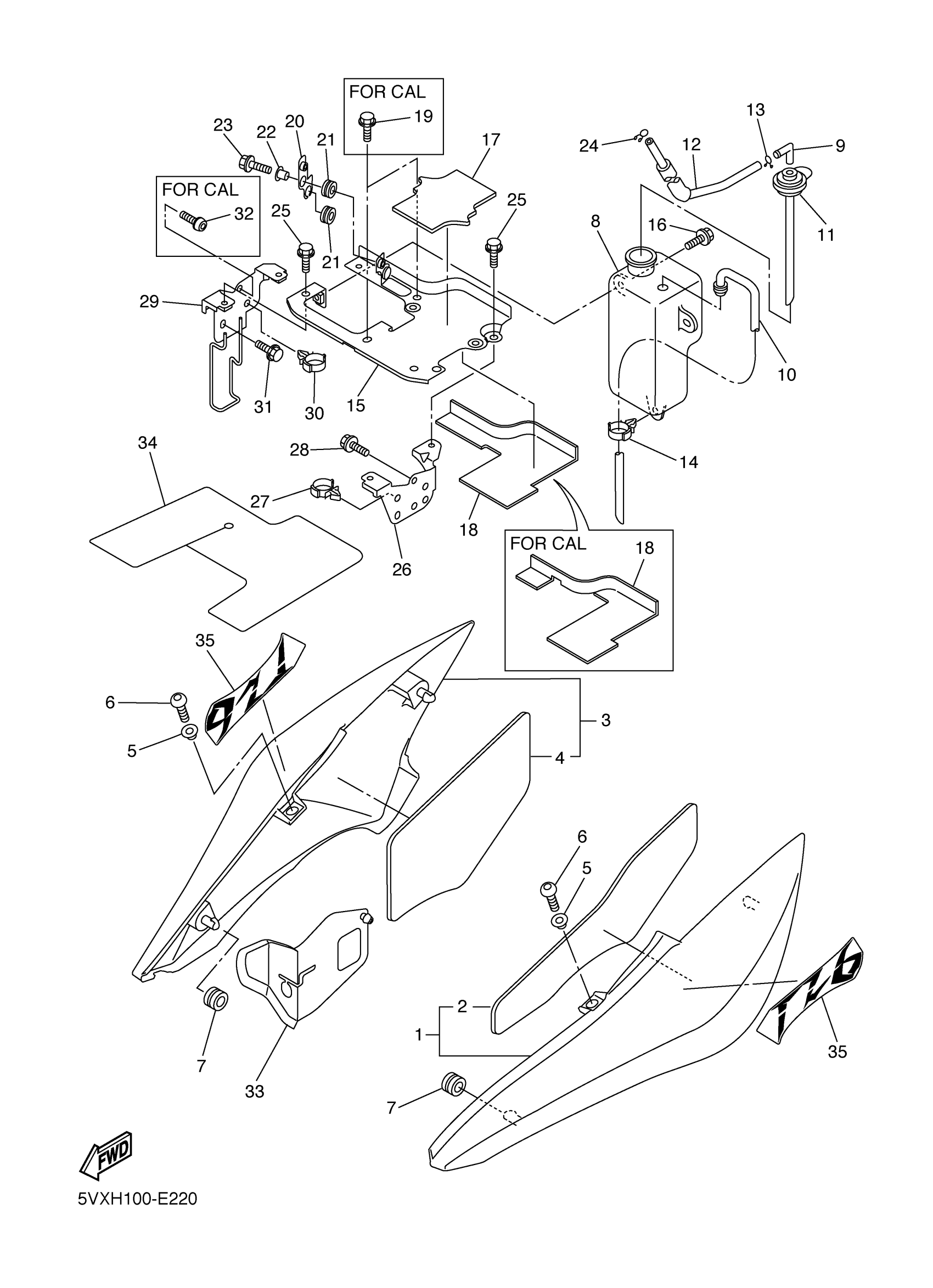

Yamaha FZS6VC (FZ6 CA) 5VXJ 2006 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5VX-21710-A0-P0

Unavailable

1

SIDE COVER ASSY 1

5VX-21710-A0-P1

Unavailable

2

DAMPER

5VX-2174X-00-00

Unavailable

3

SIDE COVER ASSY 2 (DEEP RED METALLIC K)

5VX-21720-A0-P0

Unavailable

3

SIDE COVER ASSY 2

5VX-21720-A0-P1

Unavailable

4

DAMPER

5VX-2174Y-00-00

$2.39

5

COLLAR

90387-06107-00

$8.49

6

BOLT, BUTTON HEAD

92017-06014-00

$4.29

7

GROMMET(4DN)

90480-01558-00

$4.19

8

TANK, RECOVERY

5VX-21871-00-00

Unavailable

9

ELBOW

26H-21828-00-00

$27.99

10

PIPE 1

5VX-21816-00-00

Unavailable

11

CAP

5VX-21875-00-00

Unavailable

12

HOSE (615)

90445-08018-00

$8.49

13

CLIP (16G)

90467-08021-00

$8.49

14

CLAMP(4AP)

90464-20181-00

Unavailable

15

BRACKET, RECOVERY TANK

5VX-21873-00-00

Unavailable

16

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

17

DAMPER, LOCATING 2

5VX-21779-00-00

Unavailable

18

SEAL 3

5VX-2173M-00-00

Unavailable

18

SEAL 3

5VX-2173M-10-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

20

BRACKET, RESERVE TANK

5VX-21228-00-00

Unavailable

21

GROMMET (1E5)

90480-13163-00

Unavailable

22

SPACER (4F2)

90560-06201-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

CLIP (16G)

90467-08021-00

$8.49

25

BOLT, FLANGE

95817-06010-00

Unavailable

26

STAY, 4

5VX-21843-00-00

Unavailable

27

CLAMP(4AP)

90464-20181-00

Unavailable

28

BOLT, FLANGE

95817-06010-00

Unavailable

29

STAY, 3

5VX-22836-00-00

Unavailable

30

CLAMP

90464-16006-00

Unavailable

31

BOLT, FLANGE

95817-06010-00

Unavailable

32

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

33

COVER, REAR FENDER 1

5VX-2163A-00-00

Unavailable

34

FLAP

5VX-2177F-00-00

Unavailable

35

EMBLEM 1 (DEEP RED METALLIC K)

1B3-21781-40-00

Unavailable

35

EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)

1B3-21781-50-00

Unavailable
