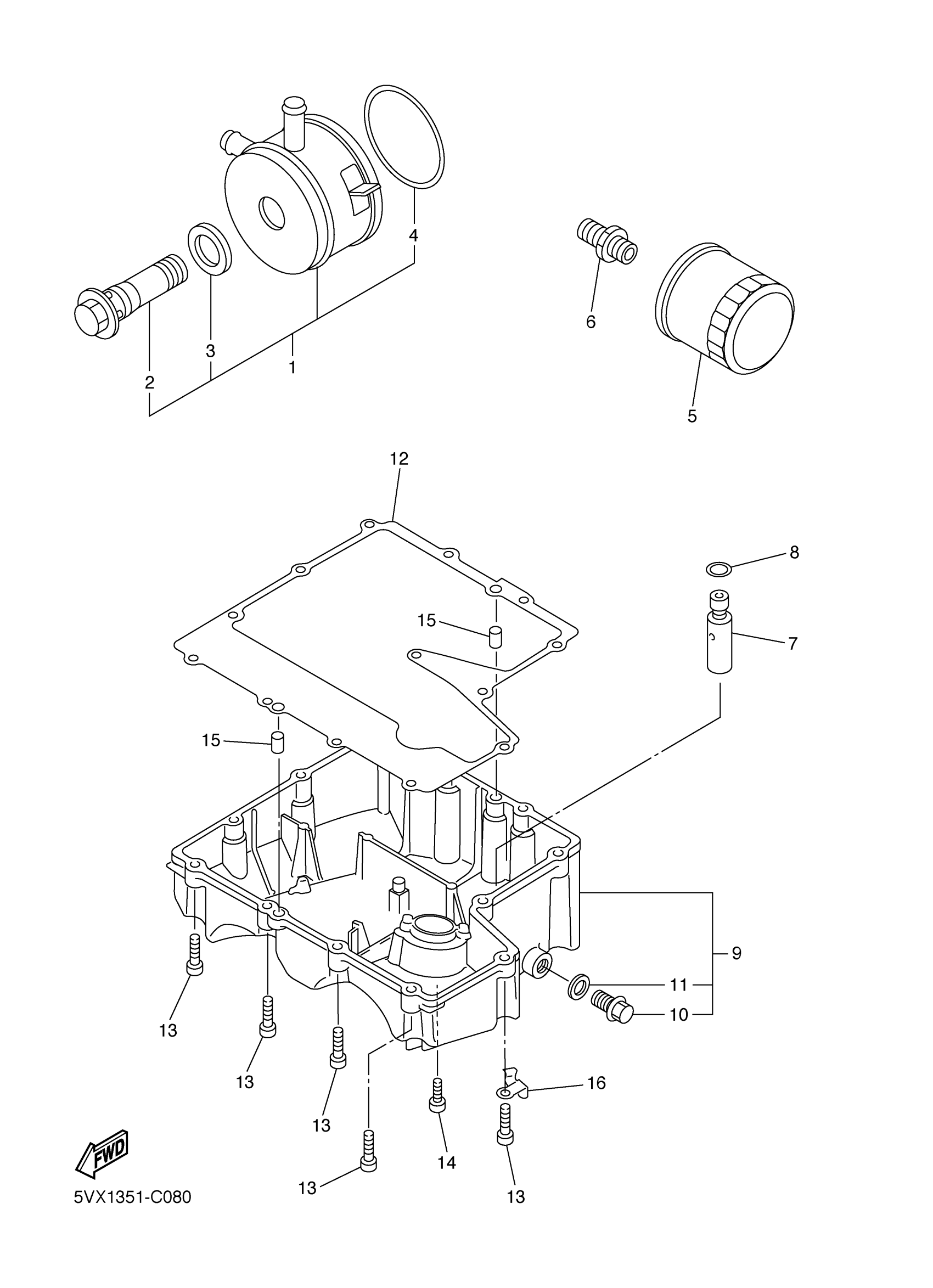

Yamaha FZS6VC (FZ6 CA) 5VXJ 2006 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSY

5EB-13470-00-00

Unavailable

2

BOLT, UNION

5EB-12822-00-00

$45.71

3

GASKET

5EB-13475-00-00

$14.59

4

O-RING

5JW-13473-00-00

$33.95

5

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

Unavailable

6

BOLT, UNION

90401-20007-00

$13.86

7

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

8

O-RING (22U)

93210-15566-00

$5.39

9

STRAINER COVER ASSY

1B3-13400-00-00

Unavailable

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

11

GASKET

214-11198-01-00

$1.93

12

GASKET, STRAINER COVER

5VX-13414-01-00

$20.14

13

BOLT,SOCKET

91317-06025-00

$1.91

14

BOLT,SOCKET

91317-06025-00

$1.91

15

PIN, DOWEL

99530-08012-00

$4.89

16

CLAMP

90465-10030-00

Unavailable
