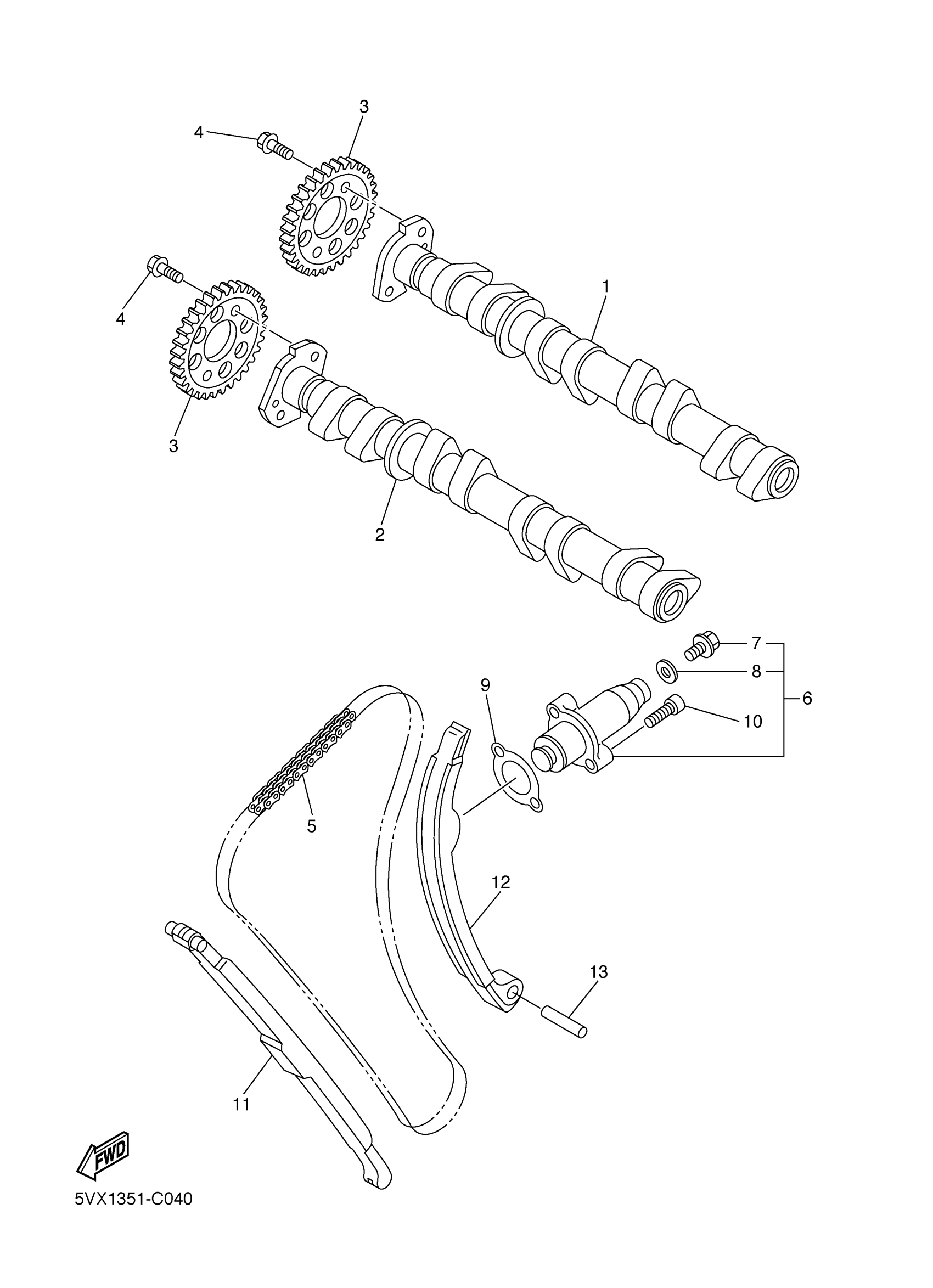

Yamaha FZS6VC (FZ6 CA) 5VXJ 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5VX-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

5VX-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

5VX-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94591-49120-00

$40.99

6

TENSIONER ASSY.

5SL-12210-11-00

Unavailable

7

BOLT

5EL-12228-00-00

$5.49

8

GASKET

5SL-12214-00-00

$7.99

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

10

BOLT,SOCKET HEAD

91314-06025-00

$8.49

11

DAMPER, CHAIN 1

5EB-12251-01-00

$55.99

12

DAMPER, CHAIN 2

5EB-12252-11-00

$77.99

13

PIN, DOWEL (8V8)

93607-44190-00

$16.99
