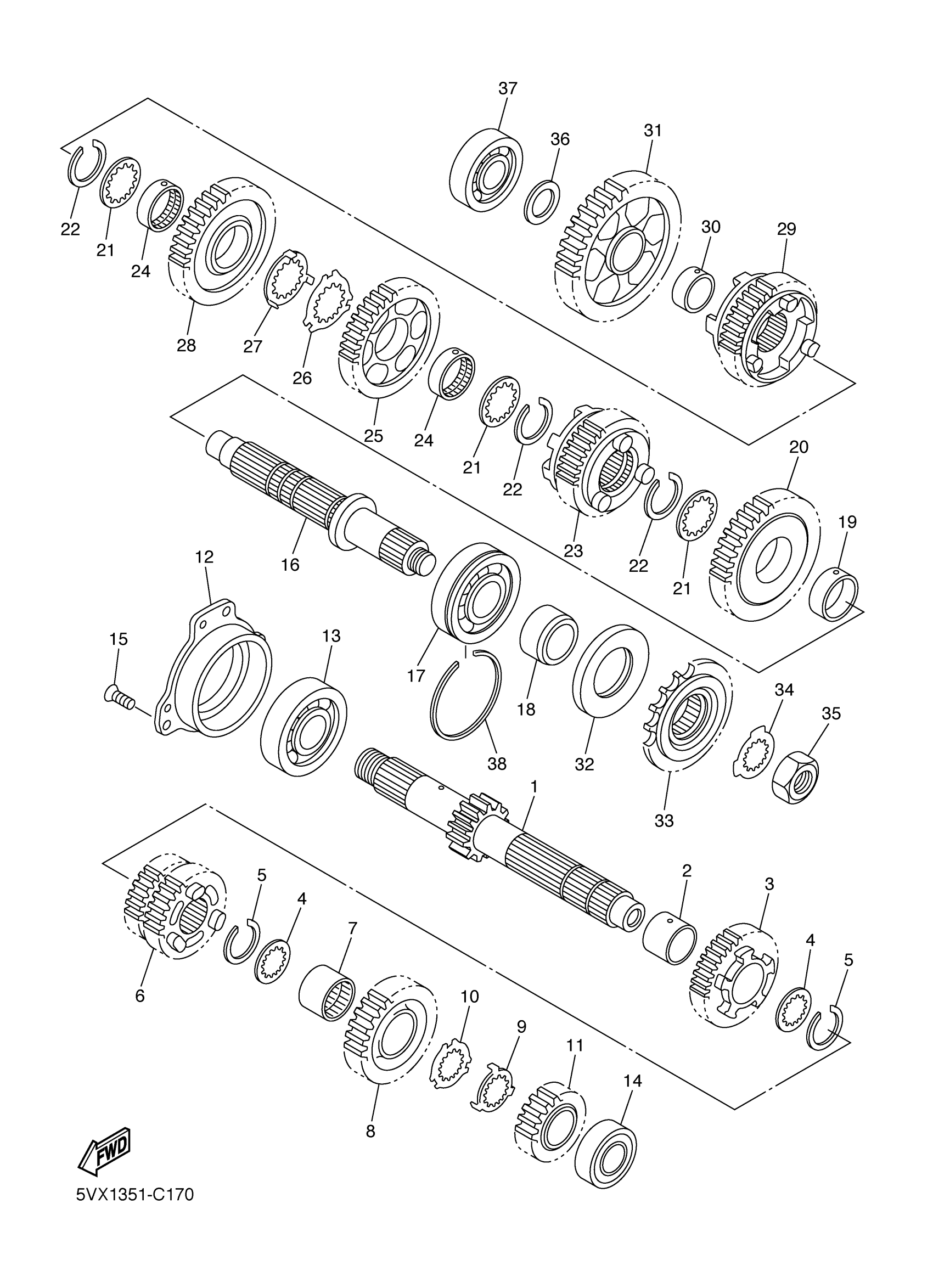

Yamaha FZS6TC (FZ6 CA) 5VX9 2005 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (13T)

5SL-17411-00-00

Unavailable

2

COLLAR(1FN)

90387-253M6-00

Unavailable

3

GEAR, 5TH PINION

5VX-17151-00-00

Unavailable

4

WASHER(3VD)

90209-21332-00

$7.49

5

CIRCLIP

93440-25186-00

$7.49

6

GEAR, 3RD PINION (18T/24T)

5SL-17131-20-00

Unavailable

7

COLLAR

90387-2513E-00

Unavailable

8

GEAR, 6TH PINION

5SL-17161-00-00

$164.99

9

WASHER

90209-22352-00

$20.99

10

WASHER

90209-21351-00

$12.49

11

GEAR, 2ND PINION

5SL-17121-00-00

Unavailable

12

HOUSING, BEARING 1

5EB-15163-01-00

Unavailable

13

BEARING (3Y1)

93306-30525-00

$63.99

14

BEARING(3LD)

93306-20464-00

Unavailable

15

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

16

AXLE, DRIVE

5SL-17421-00-00

Unavailable

17

BEARING (B6305A5 SPECIAL)(1AE)

93306-30546-00

Unavailable

18

COLLAR(4JH)

90387-2504A-00

Unavailable

19

COLLAR

90387-2813C-00

Unavailable

20

GEAR, 2ND WHEEL

5VX-17221-00-00

Unavailable

21

WASHER

90209-25342-00

Unavailable

22

CIRCLIP (2H7)

93440-28062-00

Unavailable

23

GEAR, 6TH WHEEL

5VX-17261-00-00

Unavailable

24

COLLAR

90387-2813D-00

Unavailable

25

GEAR, 4TH WHEEL

5SL-17241-00-00

Unavailable

26

WASHER

90209-25349-00

Unavailable

27

WASHER

90209-25350-00

Unavailable

28

GEAR, 3RD WHEEL

5SL-17231-00-00

Unavailable

29

GEAR, 5TH WHEEL

5VX-17251-00-00

Unavailable

30

COLLAR

90387-2202V-00

Unavailable

31

GEAR, 1ST WHEEL

5SL-17211-00-00

Unavailable

32

OIL SEAL(3GM)

93102-35423-00

Unavailable

33

SPROCKET, DRIVE

5VX-17460-00-00

Unavailable

34

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

35

NUT

90179-18006-00

Unavailable

36

WASHER PLATE 168171160000

90201-20278-00

Unavailable

37

BEARING(3LD)

93306-20464-00

Unavailable

38

CIRCLIP

278-17424-01-00

Unavailable
