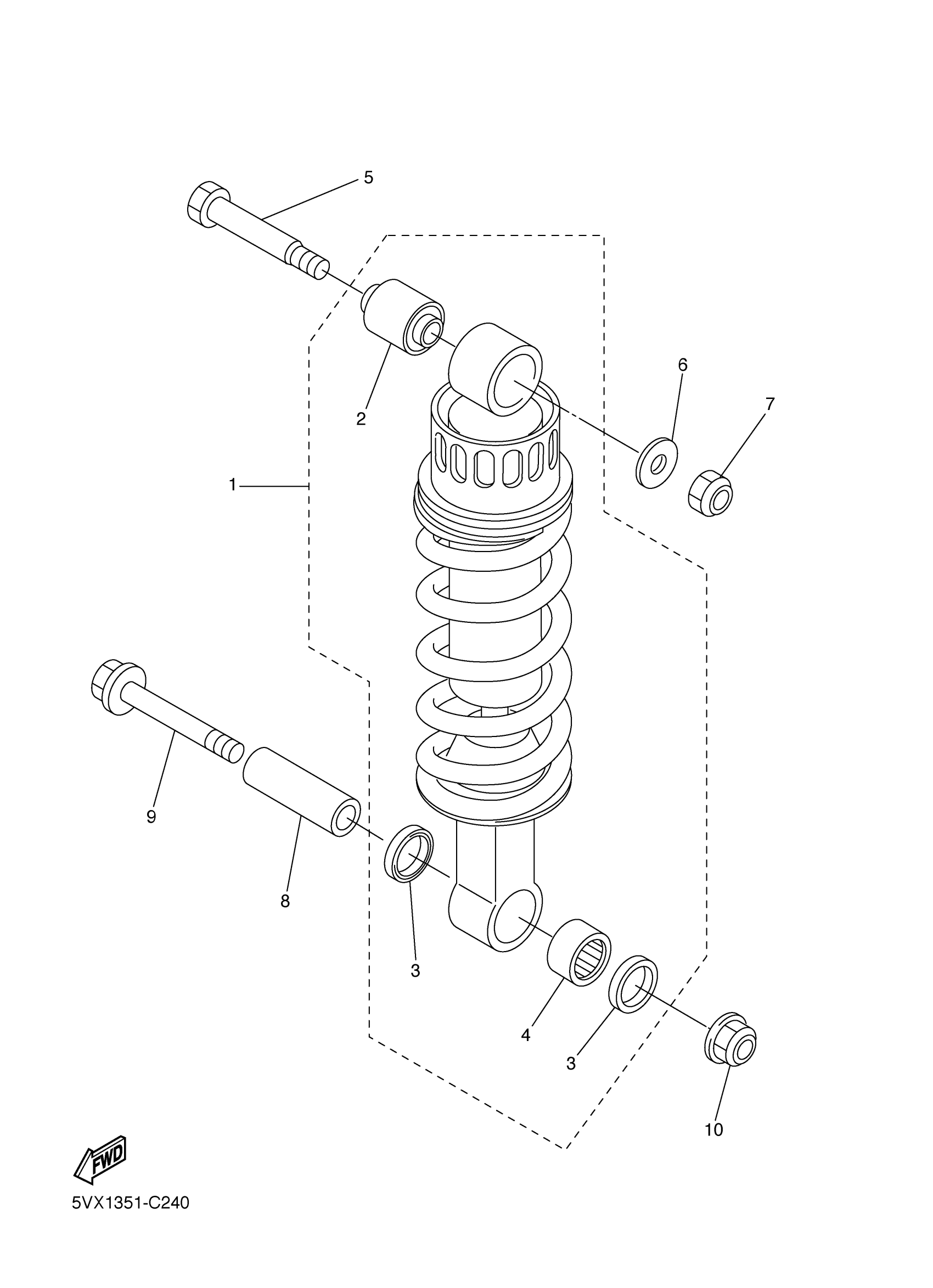

Yamaha FZS6TC (FZ6 CA) 5VX9 2005 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5VX-22210-10-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

34L-22216-00-00

Unavailable

3

OIL SEAL

93109-17071-00

$6.29

4

BEARING

93315-31758-00

$32.40

5

BOLT (12R)

90109-10654-00

$11.50

6

WASHER, PLATE(47X)

90201-101J1-00

$5.75

7

NUT, U

95617-10100-00

$5.76

8

COLLAR

90387-1012B-00

$16.29

9

B0LT,FLANGE (1KT)

90105-10323-00

$3.88

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.11
