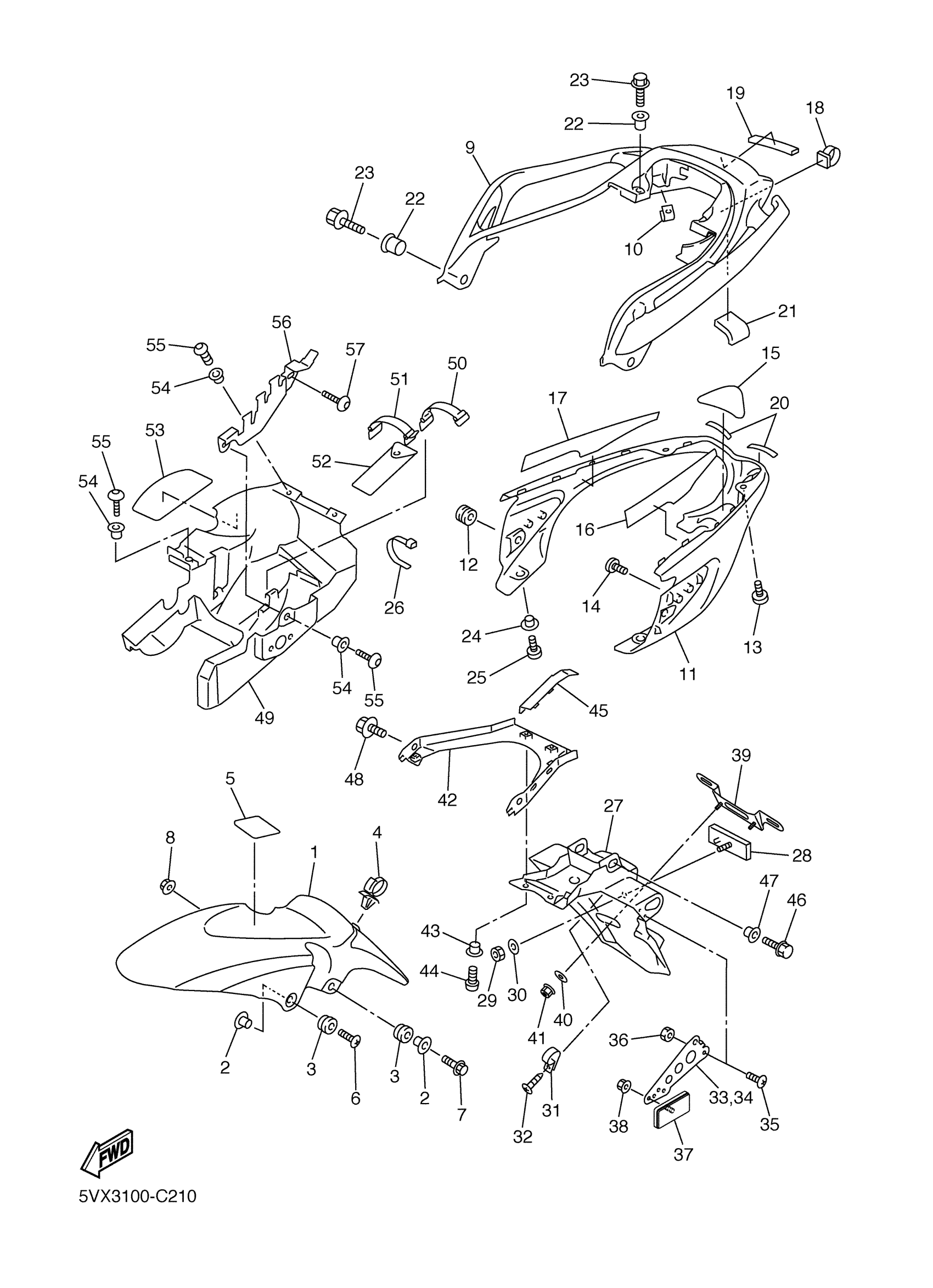

Yamaha FZS6TC (FZ6 CA) 5VX9 2005 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5VX-21511-00-00

Unavailable

1

FENDER, FRONT

5VX-21511-10-00

Unavailable

2

COLLAR

90387-06159-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

CLAMP

90464-18002-00

$8.49

5

SEAL 1

5VX-21575-00-00

Unavailable

6

SCREW, BINDING(3XV)

90154-06061-00

$8.49

7

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

8

NUT (21W)

90179-06403-00

Unavailable

9

HANDLE, SEAT

5VX-24773-00-P1

Unavailable

9

HANDLE, SEAT

5VX-24773-01-P5

$375.99

10

NUT, SPRING(3GM)

90183-05061-00

$5.60

11

COVER, REAR FENDER

5VX-21651-00-00

Unavailable

12

GROMMET

90480-13014-00

$8.49

13

SCREW, BINDING

98907-05012-00

$8.49

14

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

15

SEAL

5VX-21669-00-00

Unavailable

16

SEAL 1

5VX-21732-00-00

Unavailable

17

SEAL 2

5VX-21735-01-00

Unavailable

18

CLAMP

90464-14002-00

Unavailable

19

DAMPER

5VX-88158-00-00

Unavailable

20

DAMPER 2

5VX-21639-00-00

Unavailable

21

DAMPER 1

31A-28217-00-00

Unavailable

22

COLLAR

90387-09012-00

Unavailable

23

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

24

COLLAR

90387-06107-00

Unavailable

25

SCREW, BINDING

98907-06012-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

FLAP

5VX-21621-10-00

Unavailable

28

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

29

NUT, U

95617-05100-00

Unavailable

30

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

31

CLAMP (712)

90464-18029-00

Unavailable

32

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

33

STAY 3

5VX-2164H-00-00

Unavailable

34

STAY 4

5VX-2164J-00-00

Unavailable

35

SCREW, ROUND HEAD(4KM)

90150-04041-00

Unavailable

36

NUT, U (7LY)

95617-04100-00

Unavailable

37

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

38

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

39

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

40

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

41

NUT, SELF-LOCKING

95617-06100-00

Unavailable

42

BRACKET 6

5VX-2161G-00-00

Unavailable

43

COLLAR

90387-06107-00

Unavailable

44

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

45

GUIDE, MUD GUARD

5VX-21665-00-00

Unavailable

46

BOLT, WITH WASHER

90119-06242-00

Unavailable

47

COLLAR

90387-06075-00

Unavailable

48

BOLT, FLANGE

95817-08012-00

Unavailable

49

GUARD, MUD

5VX-21629-00-00

Unavailable

50

BAND, BATTERY

3TJ-82131-00-00

Unavailable

51

BAND, BATTERY

26L-82131-00-00

Unavailable

52

TOOL KIT

5VX-28100-00-00

Unavailable

53

SEAL 4

5VX-2173N-00-00

Unavailable

54

COLLAR

90387-06107-00

Unavailable

55

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

56

STAY 1

5VX-2164F-00-00

Unavailable

57

BOLT, BUTTON HEAD

92017-06016-00

Unavailable
