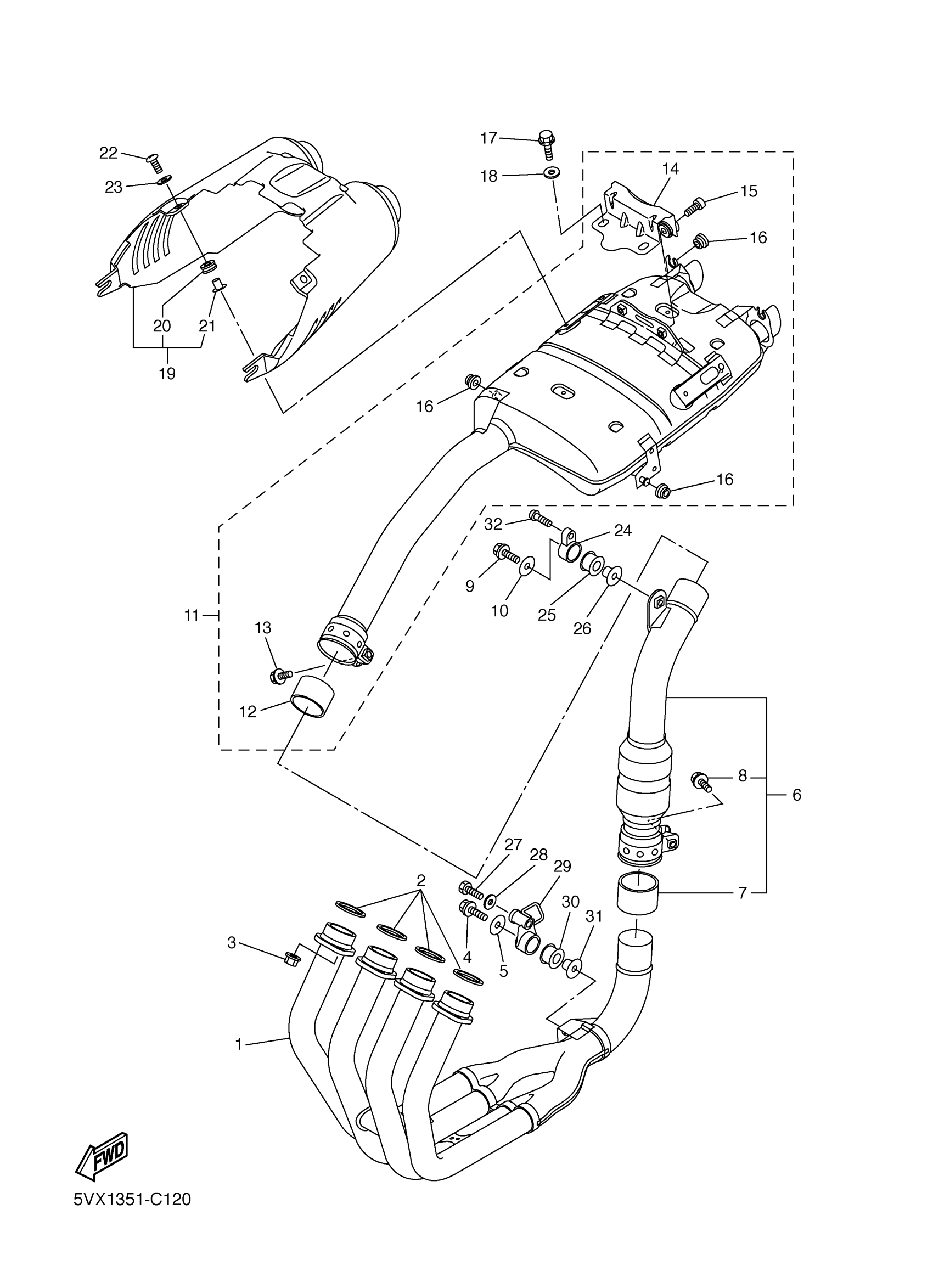

Yamaha FZS6TC (FZ6 CA) 5VX9 2005 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

5VX-14602-00-00

Unavailable

2

GASKET, EXHAUST PIPE

3YF-14613-01-00

$13.49

3

NUT (22U)

90179-08410-00

$9.49

4

BOLT, FLANGE

95817-08035-00

$9.49

5

WASHER, PLATE (1A0)

90201-08612-00

$8.49

6

CATALYST ASSY.

5VX-14740-00-00

Unavailable

7

GASKET, MUFFLER

3XW-14714-00-00

$37.99

8

BOLT, FLANGE

95814-08045-00

$4.29

9

BOLT, FLANGE

95817-08035-00

$9.49

10

WASHER, PLATE (1A0)

90201-08612-00

$8.49

11

MUFFLER ASSY 1

5VX-14710-00-00

Unavailable

12

GASKET, MUFFLER

5EB-14714-01-00

Unavailable

13

BOLT, FLANGE

95814-08045-00

$4.29

14

BRACKET, SILENCER 3

5VX-1467K-00-00

Unavailable

15

BOLT, SOCKET

91317-08030-00

$8.49

16

GROMMET

90480-10017-00

Unavailable

17

BOLT, FLANGE

95817-08014-00

Unavailable

18

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

19

PROTECTOR ASSY

5VX-14708-10-00

Unavailable

20

GROMMET

90480-12006-00

Unavailable

21

COLLAR(80L)

90387-061N6-00

Unavailable

22

SCREW, BINDING

98907-06020-00

Unavailable

23

WASHER, PROTECTOR

4FB-14766-00-00

Unavailable

24

STAY, MUFFLER 2

5VX-21446-00-00

Unavailable

25

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

26

COLLAR(3MA)

90387-082W9-00

Unavailable

27

BOLT(47X)

90109-082A1-00

Unavailable

28

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

29

STAY, MUFFLER 2

5VX-21446-10-00

Unavailable

30

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

31

COLLAR(3MA)

90387-082W9-00

Unavailable

32

BOLT, BUTTON

92017-08045-00

Unavailable
