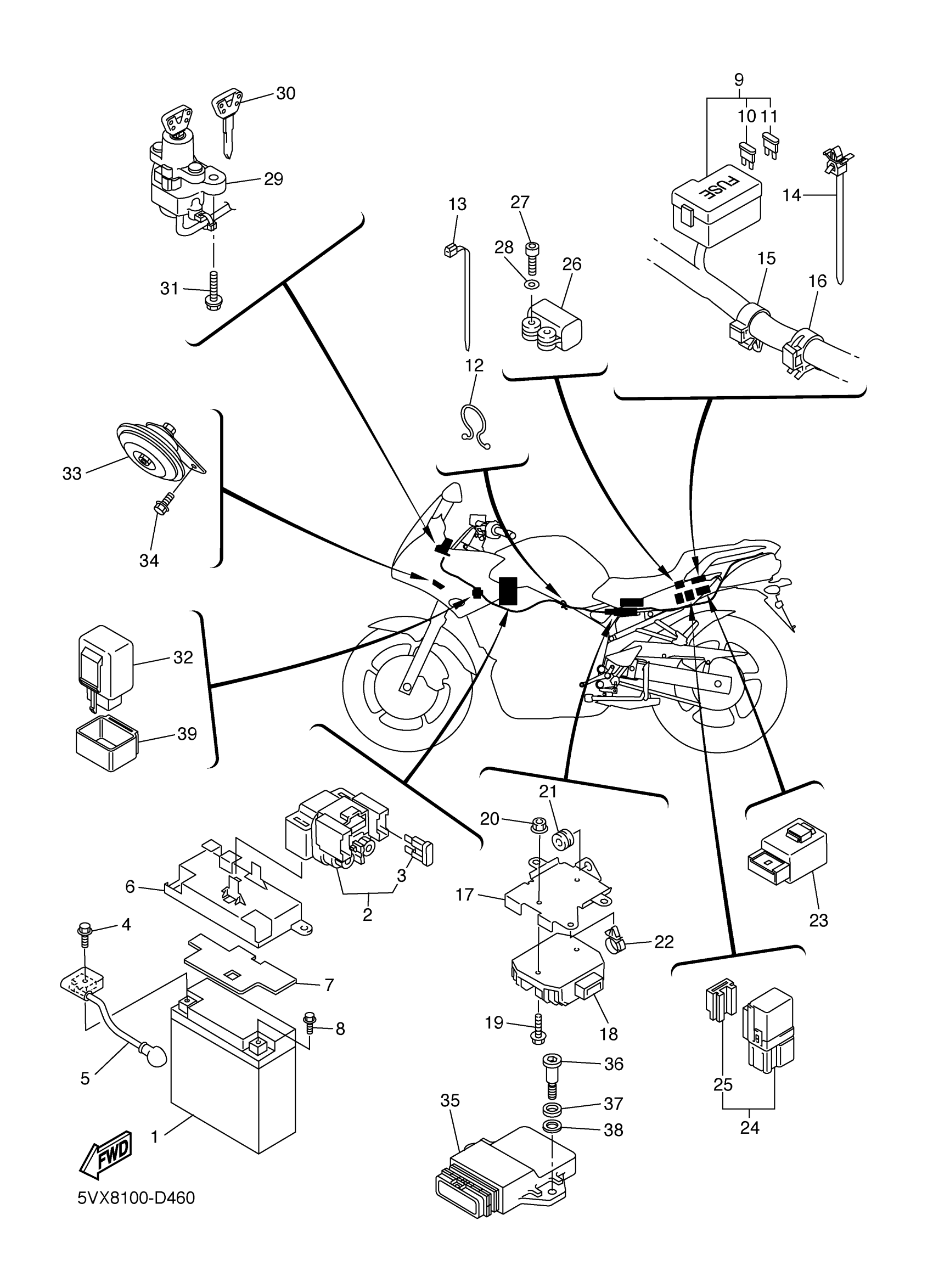

Yamaha FZS6TC (FZ6 CA) 5VX9 2005 ELECTRICAL 2 Diagram

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

$113.99

FUSE (12V 30A)

1AE-82151-00-00

$7.99

BOLT, SMALL FLANGE

95027-06008-00

$7.99

WIRE, POSITIVE LEAD

5VX-82115-00-00

Unavailable

COVER, BATTERY

5VX-2124E-00-00

Unavailable

SEAT, BATTERY

5VX-82123-00-00

$6.99

BOLT, SMALL FLANGE

95027-06008-00

$7.99

WIRE HARNESS ASSY

5VX-82590-10-00

Unavailable

. FUSE (10A)

67F-82151-40-00

Unavailable

FUSE

5JJ-82151-20-00

$7.99

CLAMP (3Y2)

90464-16039-00

$9.49

CLAMP

90464-13077-00

$8.49

CLAMP(2TV)

90464-10112-00

$8.49

CLAMP

90464-16006-00

$9.49

CLAMP(4HM)

90464-15192-00

Unavailable

BRACKET, REGULATOR

5VX-2128A-00-00

Unavailable

RECTIFIER & REGULATOR ASSY

5VX-81960-00-00

Unavailable

BOLT, FLANGE

95817-06020-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

GROMMET

90480-11005-00

Unavailable

CLAMP

90464-13249-00

Unavailable

RELAY ASSY

5VK-81950-33-00

Unavailable

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

HOLDER,RELAY

5EA-81952-00-00

Unavailable

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

BOLT,SOCKET

91317-04025-00

Unavailable

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

MAIN SWITCH STEERING LOCK

5VX-82501-11-00

Unavailable

BLANK KEY

4BH-82511-09-00

Unavailable

BOLT

90109-08196-00

Unavailable

FLASHER RELAY ASSY

4VR-83350-02-00

Unavailable

HORN

5VX-83371-01-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable

ENGINE CONTROL UNIT ASSY

5VX-8591A-10-00

Unavailable

ENGINE CONTROL UNIT ASSY

5VX-8591A-20-00

Unavailable

BOLT

90109-06055-00

Unavailable

DAMPER, LOCATING 1

5VX-21778-00-00

Unavailable

WASHER, PLATE(87G)

90202-08205-00

Unavailable

DAMPER

4VR-8338V-00-00

Unavailable
