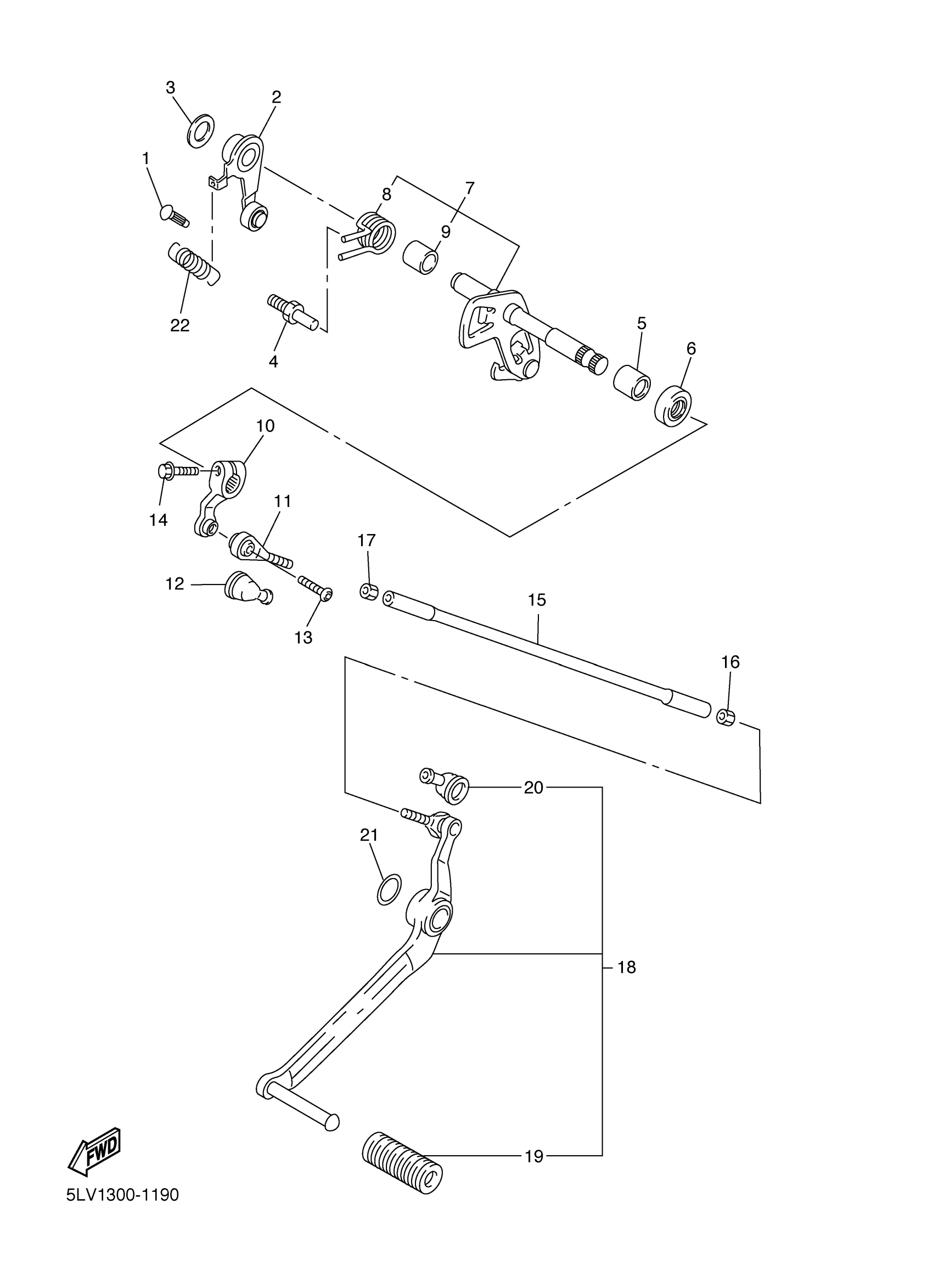

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 SHIFT SHAFT Diagram

#

Description
Price

1

HOOK, SPRING

132-16346-00-00

$8.14

2

STOPPER LEVER ASSY

5JJ-18140-00-00

Unavailable

3

WASHER, PLATE(51Y)

90201-120K4-00

$6.77

4

STOPPER, SCREW

5VK-18127-00-00

Unavailable

5

BEARING

93317-11287-00

$19.11

6

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

7

SHIFT SHAFT ASSY

5LV-18101-01-00

Unavailable

8

SPRING, TORSION

90508-295B2-00

$7.56

9

COLLAR

90387-1211D-00

$6.39

10

ARM, SHIFT

5EB-18112-01-00

$64.08

11

JOINT, ROD 1

5LV-18116-00-00

$46.67

12

COVER, DUST

4XV-18154-00-00

$6.29

13

BOLT, BUTTON

92017-06020-00

$2.38

14

BOLT, FLANGE

95814-06020-00

$6.22

15

ROD, SHIFT

5LV-18115-00-00

Unavailable

16

NUT (2H9)

90170-06228-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

SHIFT PEDAL ASSY

5LV-18110-00-00

Unavailable

19

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

20

COVER, DUST

4XV-18154-00-00

$6.29

21

WASHER, WAVE(46X)

90206-17084-00

Unavailable

22

SPRING, TENSION

90506-14002-00

Unavailable
