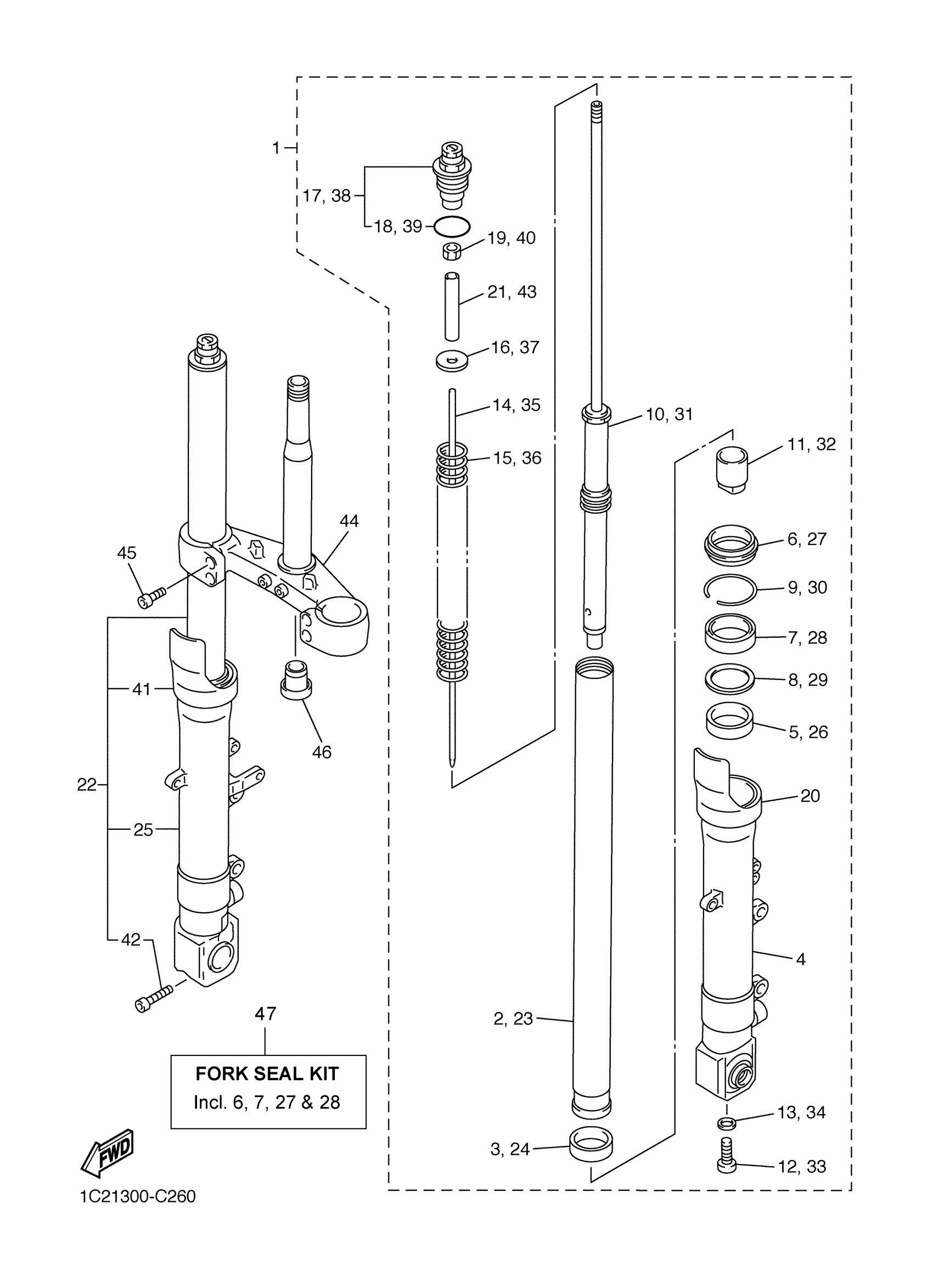

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5LV-23102-10-00

Unavailable

2

. INNER TUBE COMP 1

5LV-23110-00-00

Unavailable

3

METAL, SLIDE 2

4TX-23135-B0-00

$20.99

4

. OUTER TUBE COMP (LH)

5LV-23106-00-00

Unavailable

5

METAL, SLIDE 1

4TX-23125-B0-00

$18.49

6

SEAL, DUST

4TX-23144-01-00

$23.99

6

SEAL, DUST

4TX-23144-01-00

$23.99

7

OIL SEAL

5VX-23145-00-00

Unavailable

8

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

9

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

10

. CYLINDER COMP, FRONT FORK

5LV-23170-00-00

Unavailable

11

SPINDLE, TAPER

5LV-23173-00-00

$60.99

12

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

13

GASKET (5R6)

90430-10171-00

$3.18

14

. PLUNGER

5LV-2318Y-00-00

Unavailable

15

SPRING, FRONT FORK

5LV-23141-00-00

Unavailable

16

WASHER, PLATE (856)

90201-10321-00

Unavailable

17

. BOLT, CAP

5LV-23111-10-00

Unavailable

18

O-RING (21A)

93210-34633-00

Unavailable

19

NUT(6TD)

95337-10600-00

Unavailable

20

COVER

4TX-2331G-00-00

Unavailable

21

. SPACER

5LV-23118-00-00

Unavailable

22

FRONT FORK ASSY (R.H)

5LV-23103-10-00

Unavailable

23

. INNER TUBE COMP 1

5LV-23110-00-00

Unavailable

24

METAL, SLIDE 2

4TX-23135-B0-00

$20.99

25

OUTER TUBE COMP. (R.H)

5LV-23107-00-00

Unavailable

26

METAL, SLIDE 1

4TX-23125-B0-00

$18.49

27

SEAL, DUST

4TX-23144-01-00

$23.99

27

SEAL, DUST

4TX-23144-01-00

$23.99

28

OIL SEAL

5VX-23145-00-00

Unavailable

29

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

30

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

31

. CYLINDER COMP, FRONT FORK

5LV-23170-00-00

Unavailable

32

SPINDLE, TAPER

5LV-23173-00-00

$60.99

33

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

34

GASKET (5R6)

90430-10171-00

$3.18

35

. PLUNGER

5LV-2318Y-00-00

Unavailable

36

SPRING, FRONT FORK

5LV-23141-00-00

Unavailable

37

WASHER, PLATE (856)

90201-10321-00

Unavailable

38

. BOLT, CAP

5LV-23111-10-00

Unavailable

39

O-RING (21A)

93210-34633-00

Unavailable

40

NUT(6TD)

95337-10600-00

Unavailable

41

COVER

4TX-2331G-00-00

Unavailable

42

BOLT,SOCKET

91314-08045-00

Unavailable

43

. SPACER

5LV-23118-00-00

Unavailable

44

UNDER BRACKET COMP.

5LV-23340-00-00

Unavailable

45

BOLT,SOCKET

91314-08025-00

Unavailable

46

COVER, LOWER 1

4KM-23123-01-00

Unavailable

47

FORK SEAL KIT (TWO FORKS)

5VX-W003B-00-00

Unavailable
