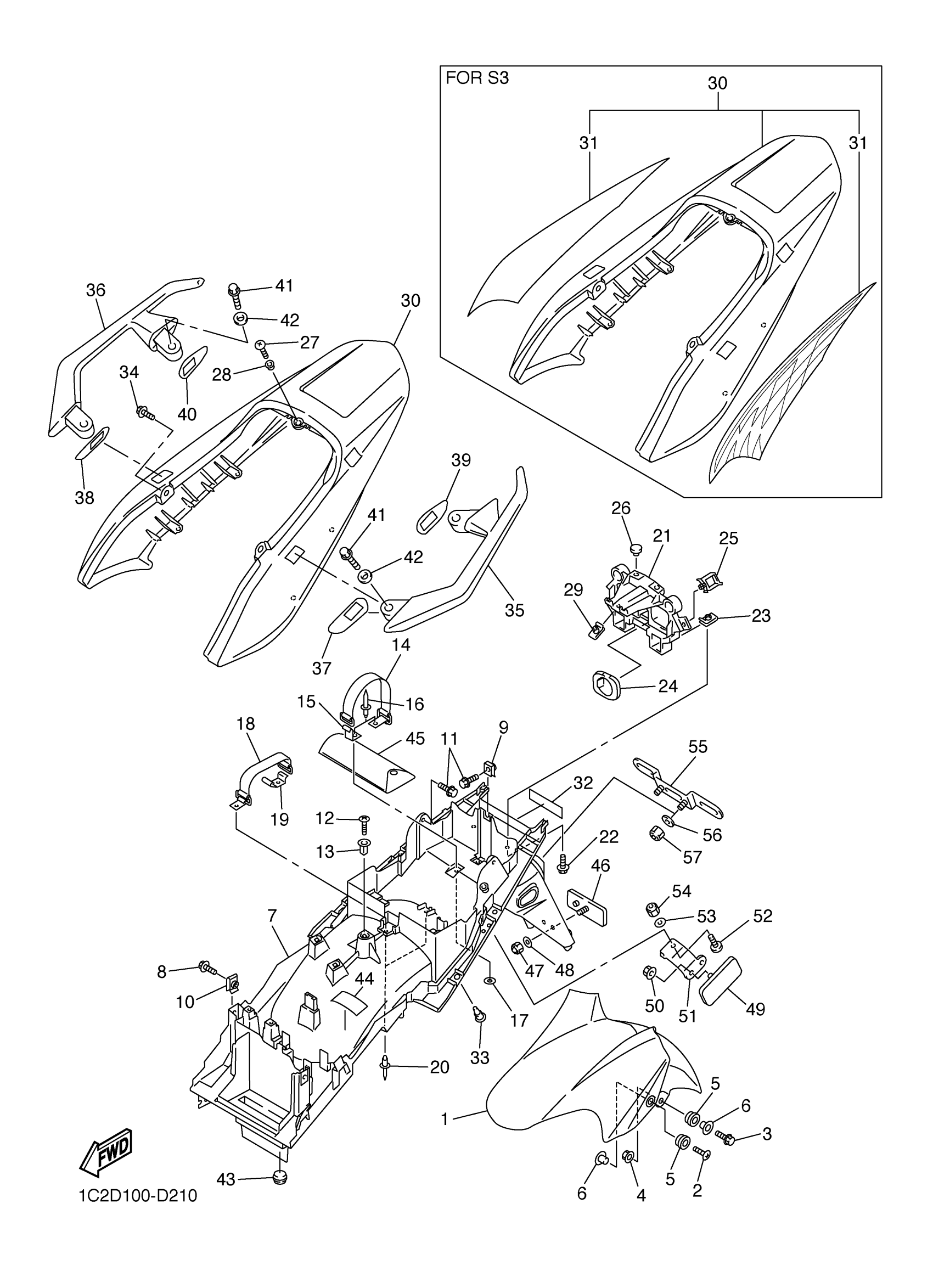

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 FENDER Diagram
#
1
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C)
5LV-21511-00-P0
Unavailable
1
FENDER, FRONT
5LV-21511-00-P2
Unavailable
4
NUT (21W)
90179-06403-00
Unavailable
7
FENDER, REAR
5LV-21611-00-00
Unavailable
9
NUT, SPRING(4ES)
90183-06069-00
Unavailable
12
SCREW, TAPPING
97707-60020-00
Unavailable
14
BAND
4HM-21647-00-00
Unavailable
15
HOOK
4HM-2162A-00-00
Unavailable
16
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
17
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
18
BAND, BATTERY
4HM-82131-00-00
Unavailable
19
HOOK
5LV-2162A-00-00
Unavailable
20
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
21
BRACKET, TAILLIGHT
5LV-2117E-00-00
Unavailable
22
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
23
NUT, SPRING(4ES)
90183-06069-00
Unavailable
24
COVER, TAILLIGHT
5JJ-2172X-00-00
Unavailable
25
CLAMP (1J7)
90464-16025-00
Unavailable
26
DAMPER, SEAT
3L7-24724-00-00
Unavailable
27
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
28
COLLAR
90387-06008-00
Unavailable
29
NUT, SPRING(3GM)
90183-05061-00
Unavailable
30
COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC C)
5LV-21651-00-P0
Unavailable
30
COVER, REAR FENDER (SILVER 3)
5LV-Y2165-40-P2
Unavailable
31
. GRAPHIC (SILVER 3)
1C2-21660-10-00
Unavailable
32
EMBLEM, YAMAHA
99246-00080-00
Unavailable
33
RIVET(4PH)
90269-07077-00
Unavailable
34
BOLT(3KJ)
90109-063F1-00
Unavailable
35
ASSIST, GRIP (DEEP PURPLISH BLUE METALLIC C)
5LV-2474A-00-P0
Unavailable
35
ASSIST, GRIP (SILVER 3)
5LV-2474A-00-P2
Unavailable
36
ASSIST, GRIP 2 (DEEP PURPLISH BLUE METALLIC C)
5LV-2474W-00-P0
Unavailable
36
ASSIST, GRIP 2 (SILVER 3)
5LV-2474W-00-P2
Unavailable
37
DAMPER, SEAT
5LV-24723-00-00
Unavailable
38
DAMPER, SEAT
5LV-24724-00-00
Unavailable
39
DAMPER, SEAT
5LV-24723-10-00
Unavailable
40
DAMPER, SEAT
5LV-24724-10-00
Unavailable
41
BOLT, FLANGE(4MY)
95027-08025-00
Unavailable
42
WASHER, PLATE (12X)
90201-087F0-00
Unavailable
43
GROMMET 285216390000
90480-14100-00
Unavailable
44
PLATE, EPA 2 (CALIFORNIA)
1C2-2179R-00-00
Unavailable
44
PLATE, EPA 1 (NON CALIFORNIA)
1C2-2179V-00-00
Unavailable
45
TOOL KIT
5LV-28100-00-00
Unavailable
46
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
47
NUT, S/L FLANGE
95607-05200-00
Unavailable
48
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
49
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
50
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
51
BRACKET, REAR STAY
4XV-21688-00-00
Unavailable
52
SCREW(3HE)
90149-04278-00
Unavailable
53
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
54
NUT, U (7LY)
95617-04100-00
Unavailable
55
BRACKET, LICENSE
5JJ-84751-00-00
Unavailable
56
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
57
NUT, SELF-LOCKING
95617-06100-00
Unavailable
