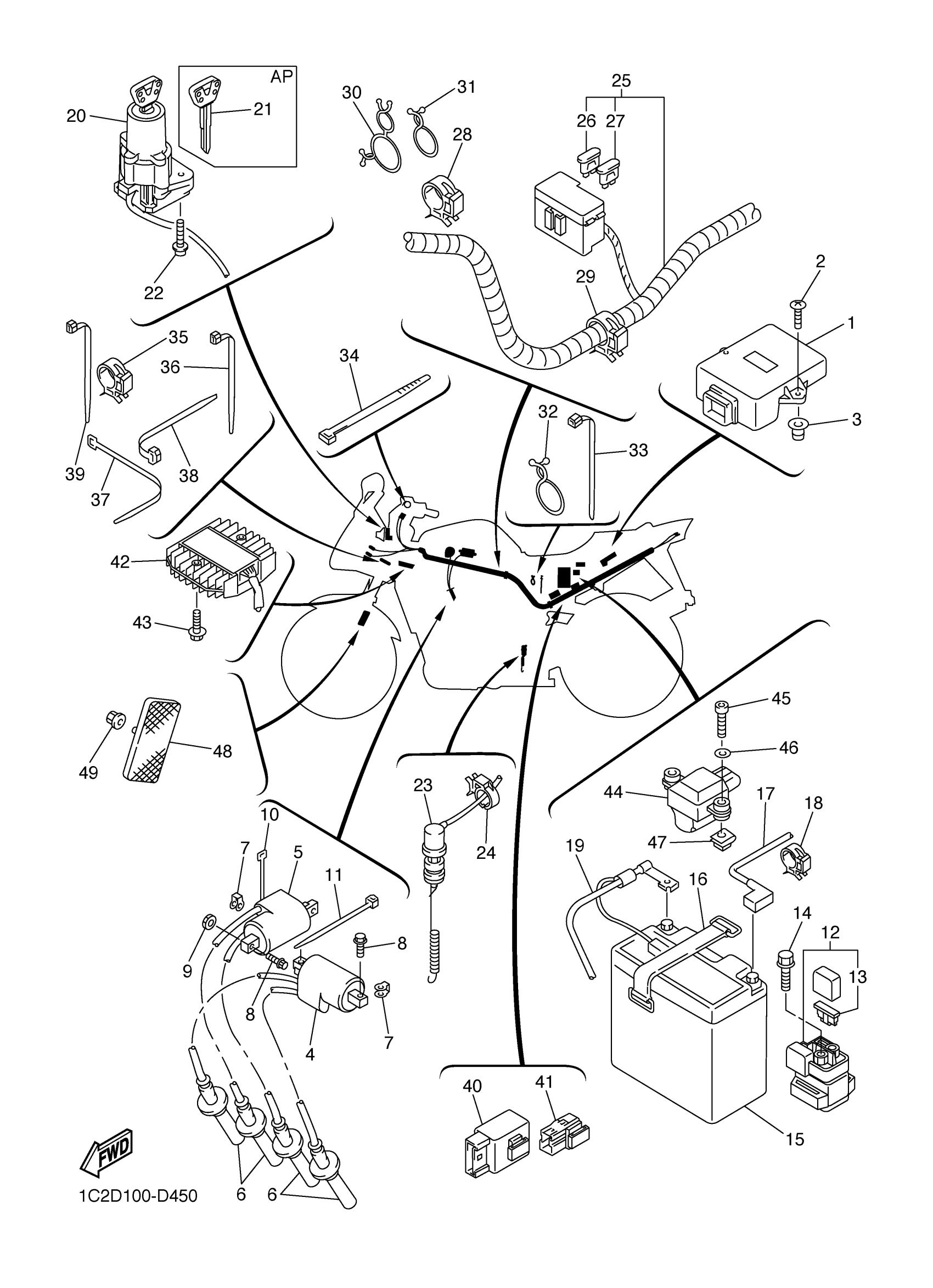

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

5LV-82305-30-00

Unavailable

2

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

3

RIVET(J50)

90269-08058-00

$1.07

4

IGNITION COIL ASSY

5DM-82310-00-00

Unavailable

5

IGNITION COIL ASY

4BH-82320-01-00

Unavailable

6

PLUG CAP ASSY

4XV-82370-01-00

Unavailable

7

DAMPER, IGNITION COIL

5LV-82317-00-00

Unavailable

8

BOLT(7U8)

97080-06020-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

BAND, SWITCH CORD

25G-83936-01-00

$4.78

11

CLAMP(4FM)

90464-15195-00

$4.41

12

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

13

FUSE (12V 30A)

1AE-82151-00-00

$7.99

14

BOLT, SMALL FLANGE

95027-06008-00

$7.99

15

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

16

BAND, BATTERY

26L-82131-00-00

Unavailable

17

WIRE, PLUS LEAD

5LV-82115-00-00

Unavailable

18

CLAMP(4GY)

90464-10190-00

Unavailable

19

WIRE, MINUS LEAD

5LV-82116-10-00

Unavailable

20

MAIN SWITCH STEERING LOCK

5LV-82501-10-00

Unavailable

21

BLANK KEY

4BH-82511-09-00

Unavailable

22

BOLT

90109-08196-00

Unavailable

23

STOP SWITCH ASSY

3DM-82530-00-00

Unavailable

24

CLAMP(4GY)

90464-08189-00

Unavailable

25

WIRE HARNESS ASSY

5LV-82590-10-00

Unavailable

26

. FUSE (10A)

67F-82151-40-00

Unavailable

27

FUSE

5JJ-82151-20-00

Unavailable

28

CLAMP(4KM)

90464-25217-00

Unavailable

29

CLAMP(4KM)

90464-25217-00

Unavailable

30

CLAMP

90464-25098-00

Unavailable

31

CLAMP

90464-25267-00

Unavailable

32

CLAMP

90464-25267-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

$4.41

34

BAND, SWITCH CORD

437-83936-01-00

Unavailable

35

CLAMP(4HM)

90464-15192-00

Unavailable

36

CLAMP

90464-13077-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

$4.41

38

BAND

1UA-82591-00-00

Unavailable

39

CLAMP

90464-13077-00

Unavailable

40

RELAY ASSY (5EB-20)

5EB-81950-20-00

Unavailable

41

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

42

RECTIFIER & REGULATOR ASSY

5KP-81960-00-00

Unavailable

43

BOLT, FLANGE

95817-06020-00

Unavailable

44

EMERGENCY STOP SWITCH ASSY

5LV-82576-00-00

Unavailable

45

BOLT,SOCKET

91317-04025-00

Unavailable

46

WASHER, PLATE

90201-042E0-00

Unavailable

47

NUT, SPRING(47R)

90183-04039-00

Unavailable

48

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

49

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
