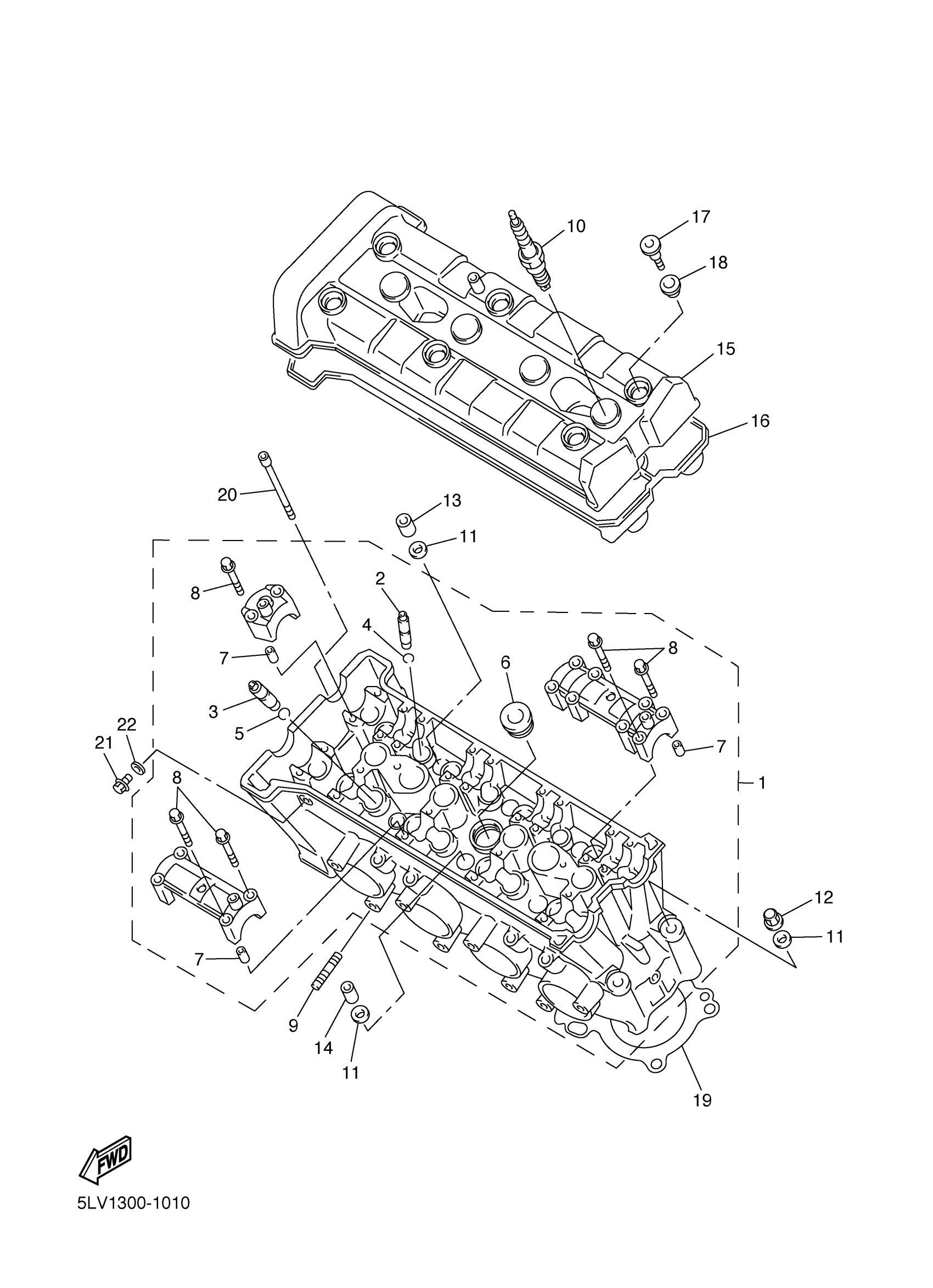

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5LV-11101-12-00

Unavailable

2

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

3

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

4

CIRCLIP(1HX)

93440-07149-00

$8.49

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

. BOLT, FLANGE

90105-06026-00

Unavailable

9

BOLT, STUD 3

95617-08625-00

$8.49

10

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

10

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

11

WASHER, PLATE

90201-10033-00

$8.49

12

NUT, CROWN(2GG)

90176-10075-00

$8.49

13

NUT

90179-10006-00

$9.49

14

NUT (26H)

90179-10414-00

$11.49

15

COVER, CYLINDER HEAD 1

5LV-11191-10-00

Unavailable

16

GASKET, HEAD COVER 1

5LV-11193-00-00

Unavailable

17

BOLT(4BP)

90109-066F0-00

Unavailable

18

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

19

GASKET, CYLINDER HEAD 1

5LV-11181-00-00

Unavailable

20

BOLT, SOCKET

91314-06060-00

Unavailable

21

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable
