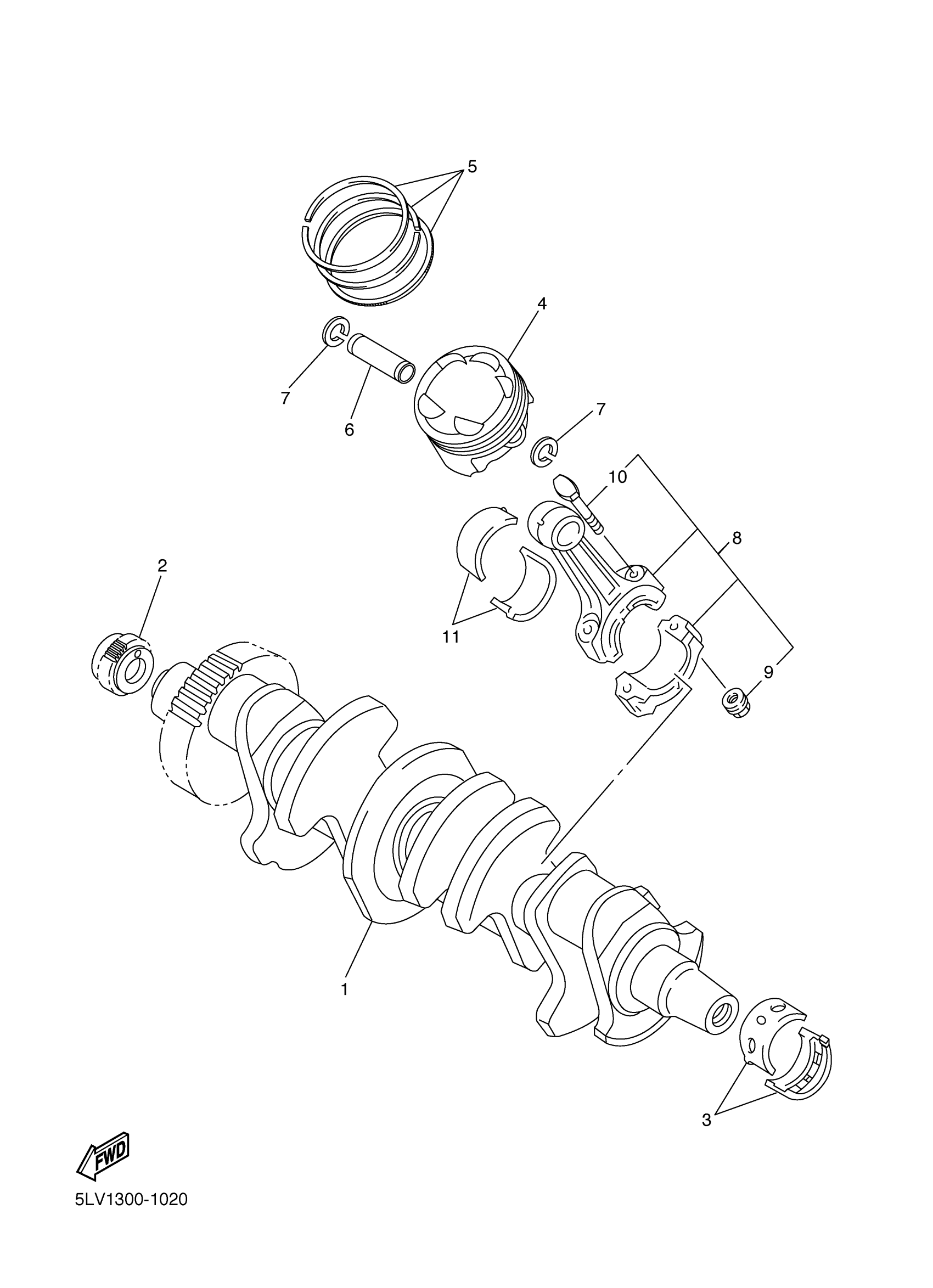

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5LV-11411-00-00

Unavailable

2

SPROCKET, CAM CHAIN

4XV-11549-00-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-00-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-10-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-20-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-A0-00

$28.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-B0-00

$35.99

4

PISTON (STD)

4XV-11631-10-00

$133.99

5

PISTON RING SET (STD)

5LV-11603-00-00

$76.99

6

PIN, PISTON

4XV-11633-00-00

$28.99

7

CLIP (1J7)

90468-12069-00

$9.49

8

CONNECTING ROD ASSY

5PW-11650-00-00

Unavailable

9

NUT (11H)

90179-08327-00

$9.49

10

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.49

11

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

$34.99

11

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-A0-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-B0-00

Unavailable
