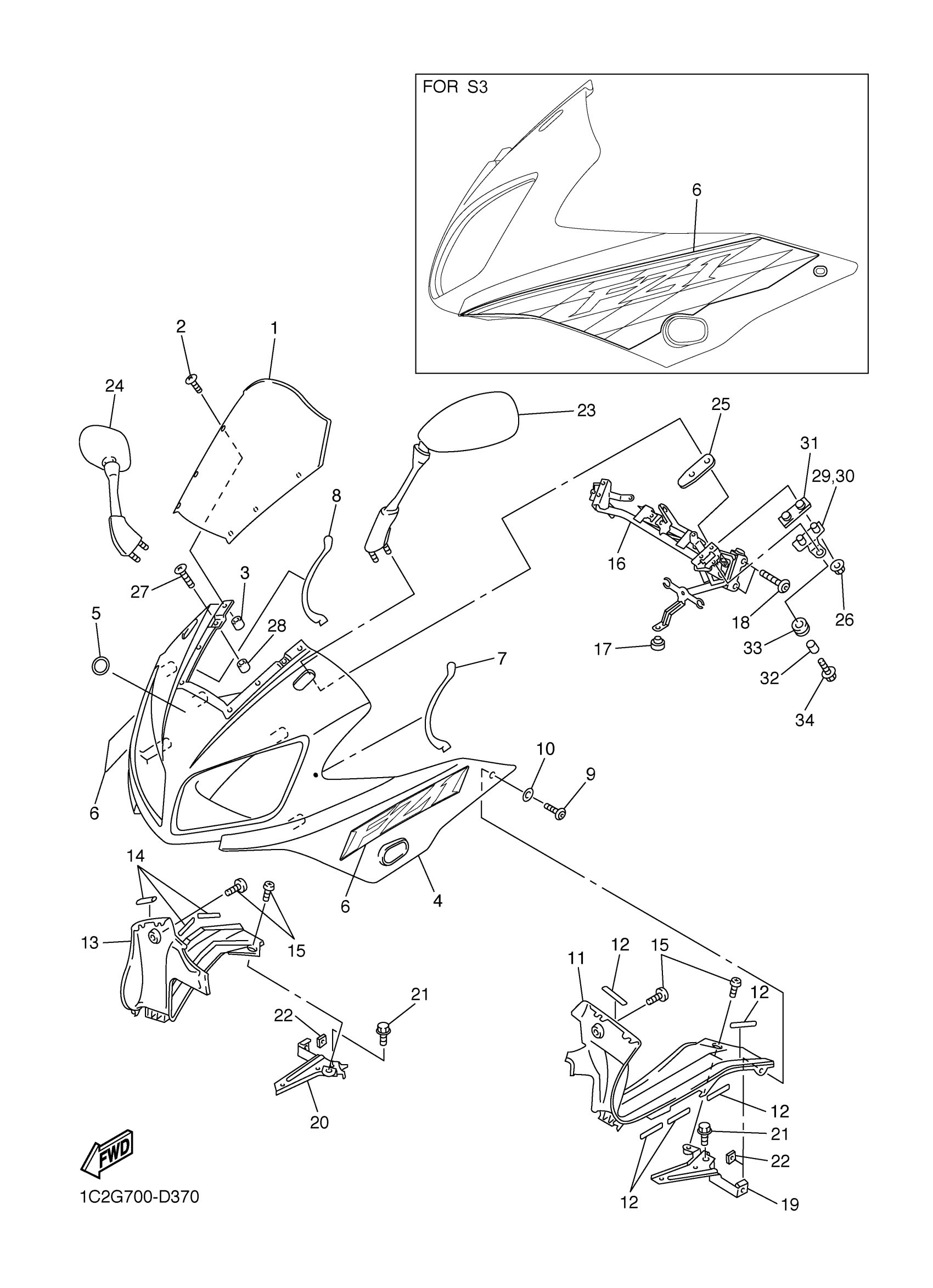

Yamaha FZS1TC (FZ1 CA) 1C2E 2005 COWLING 1 Diagram

WINDSHIELD

5LV-28381-11-00

$132.99

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

NUT(1KT)

90179-05523-00

$8.49

BODY, FRONT UPPER 1

5LV-2835G-01-P0

$281.99

BODY FRONT UPPER 1

5LV-2835G-01-P2

$281.99

TUNING FORK MARK

5LV-2836B-01-00

$50.99

GRAPHIC SET, COWLING (SILVER 3)

1C2-28390-10-00

Unavailable

EMBLEM (DEEP PURPLISH BLUE METALLIC C)

5LV-28328-60-00

Unavailable

SEAL

5LV-28307-00-00

$28.99

SEAL

5LV-28307-10-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

WASHER, PLATE

90202-06170-00

Unavailable

PANEL, INNER 1

5LV-2836K-00-00

Unavailable

DAMPER

5LV-2834E-00-00

$7.99

PANEL, INNER 2

5LV-2836L-00-00

Unavailable

DAMPER

5LV-2834E-00-00

$7.99

SCREW, BINDING (10V)

90154-05013-00

Unavailable

STAY 1

5LV-28356-00-00

Unavailable

DAMPER

18A-24724-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

BRACKET 1

5LV-2836A-00-00

Unavailable

BRACKET 2

5LV-2836E-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable

NUT,SQUARE

90173-06802-00

Unavailable

REAR VIEW MIRROR ASSY(LEFT)

5LV-26280-00-00

Unavailable

REAR VIEW MIRROR ASSY(RIGHT)

5LV-26290-00-00

Unavailable

PLATE, MIRROR FITTING 1

4SV-26298-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

SCREW, BINDING

90154-05007-00

Unavailable

NUT(1KT)

90179-05523-00

$8.49

PLATE

5LV-28336-00-00

Unavailable

PLATE

5LV-28337-00-00

Unavailable

DAMPER

5LV-28371-00-00

Unavailable

SPACER (4F2)

90560-06201-00

Unavailable

GROMMET

90480-13003-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable
