Description

Price

1

DOUBLE SEAT ASSY

5LV-24730-10-00

Unavailable

2

COVER, SEAT

5LV-2470F-11-00

$237.99

3

BRACKET, SEAT

4HM-24728-00-00

$11.99

4

NUT, FLANGE(7NB)

95780-06500-00

$2.60

5

PAD, SEAT

1T4-24741-00-00

Unavailable

6

DAMPER, SEAT

5LV-24737-00-00

$8.99

7

BAND, BATTERY

4J2-82131-01-00

$29.99

8

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

CABLE, SEAT LOCK

4HM-2478E-00-00

Unavailable

12

HELMET HANGER ASSY

3YX-21308-00-00

Unavailable

13

SCREW(4HM)

90149-06308-00

$8.49

14

PAD, SEAT

1T4-24741-00-00

Unavailable

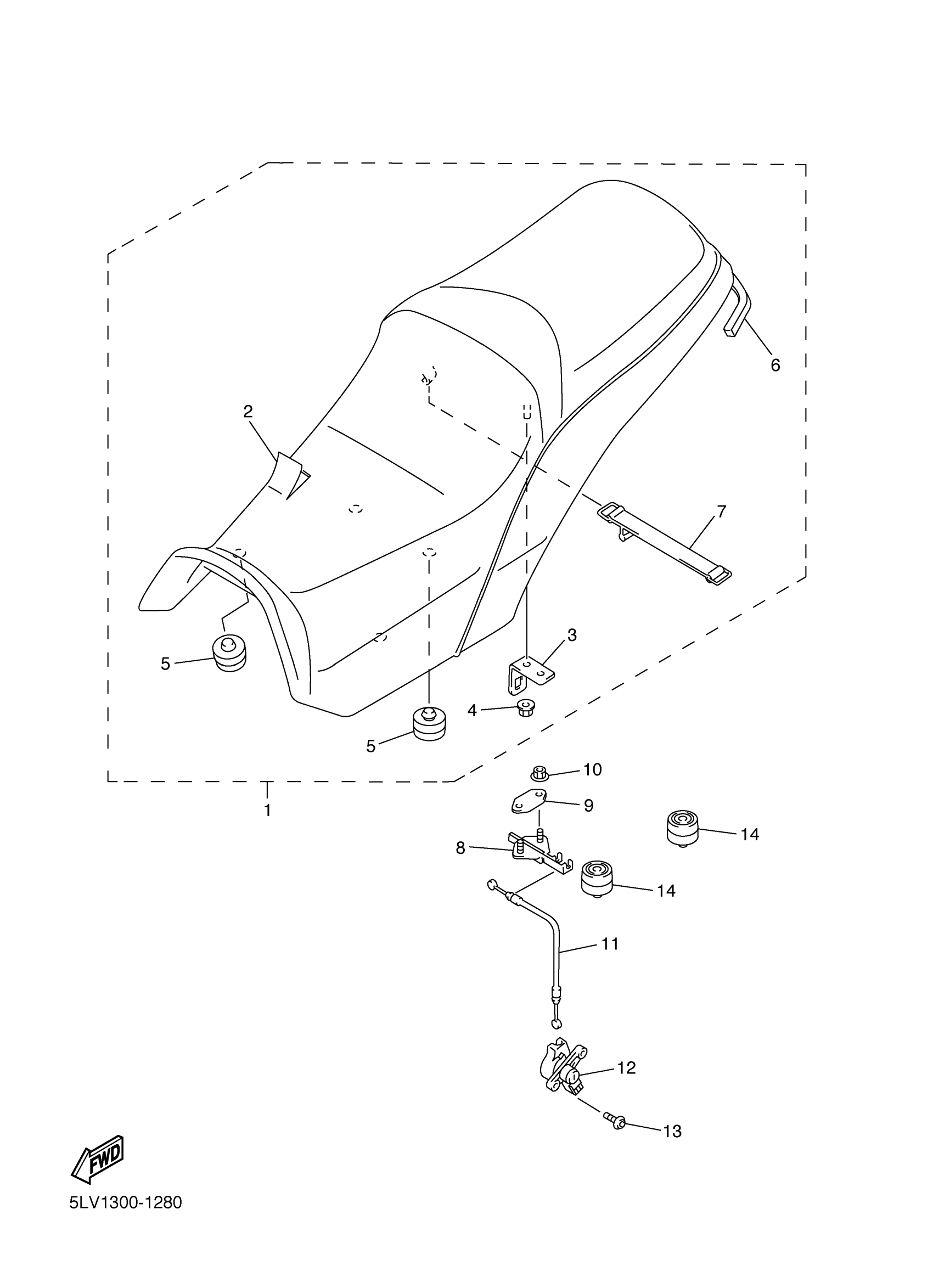

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 SEAT Diagram

DOUBLE SEAT ASSY

COVER, SEAT

BRACKET, SEAT

NUT, FLANGE(7NB)

PAD, SEAT

DAMPER, SEAT

BAND, BATTERY

SEAT LOCK ASSY

PLATE

NUT, FLANGE(4MV)

CABLE, SEAT LOCK

HELMET HANGER ASSY

SCREW(4HM)

PAD, SEAT
