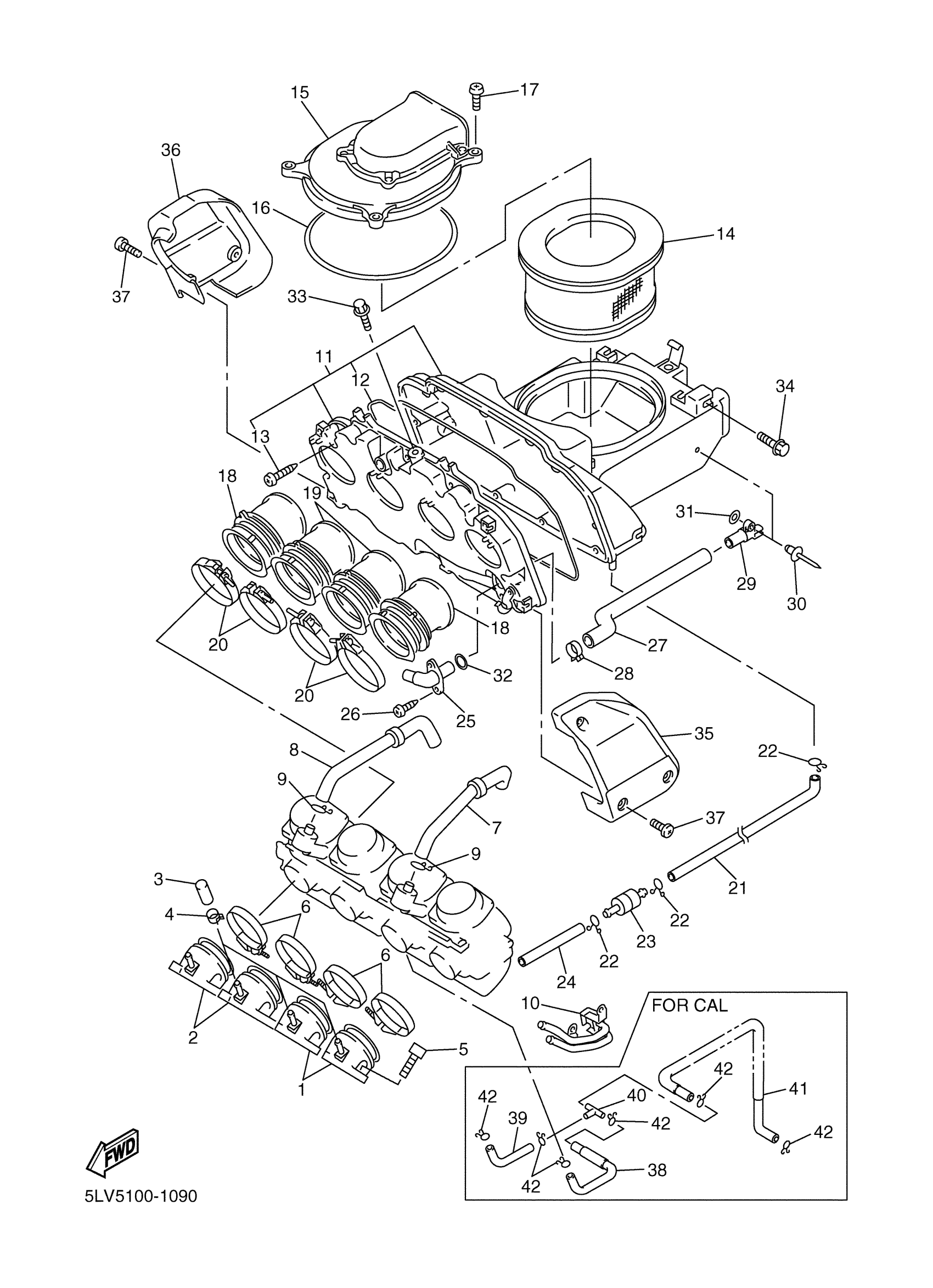

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
5LV-13586-01-00
Unavailable
2
JOINT, CARBURETOR 2
5LV-13596-01-00
Unavailable
5
BOLT,SOCKET
91317-06020-00
Unavailable
7
HOSE
5LV-13895-00-00
Unavailable
8
HOSE
5LV-13892-00-00
Unavailable
10
PIPE
5LV-14197-00-00
Unavailable
11
AIR CLEANER CASE ASSY
5LV-14401-00-00
Unavailable
14
ELEMENT, AIR CLEANER
5LV-14451-00-00
Unavailable
15
CAP ASSY, AIR CLEANER
5LV-14402-01-00
Unavailable
17
SCREW, PAN
98517-06020-00
Unavailable
18
JOINT, AIR CLEANER 1
5LV-14453-00-00
Unavailable
19
JOINT, AIR CLEANER 2
5LV-14463-00-00
Unavailable
20
HOSE CLAMP ASSY
90450-63002-00
Unavailable
21
PIPE, DRAIN
5LV-1443E-00-00
Unavailable
22
CLIP
90467-100A1-00
Unavailable
23
FILTER ASSY
4X7-2149Y-00-00
Unavailable
24
HOSE (L198)
90445-11293-00
Unavailable
25
PIPE, JOINT
5LV-14485-00-00
Unavailable
26
SCREW, PAN TAP.2 SLIT
97707-50620-00
Unavailable
27
HOSE
5LV-13926-00-00
Unavailable
28
CLIP
90468-08104-00
Unavailable
29
PIPE
5LV-14419-00-00
Unavailable
30
RIVET, BLIND
90267-40029-00
Unavailable
31
WASHER(JF2)
92907-04600-00
Unavailable
32
O-RING (2H7)
93210-13361-00
Unavailable
33
BOLT, FLANGE
95817-06010-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
COVER 1
5LV-14417-00-00
Unavailable
36
COVER 2
5LV-14418-00-00
Unavailable
37
SCREW, BINDING
90154-06075-00
Unavailable
38
PIPE
5LV-14465-00-00
Unavailable
39
PIPE
5LV-14466-00-00
Unavailable
40
PIPE, JOINT
3H3-24376-00-00
Unavailable
41
PIPE
5LV-1443J-00-00
Unavailable
42
CLIP
90467-100A1-00
Unavailable
