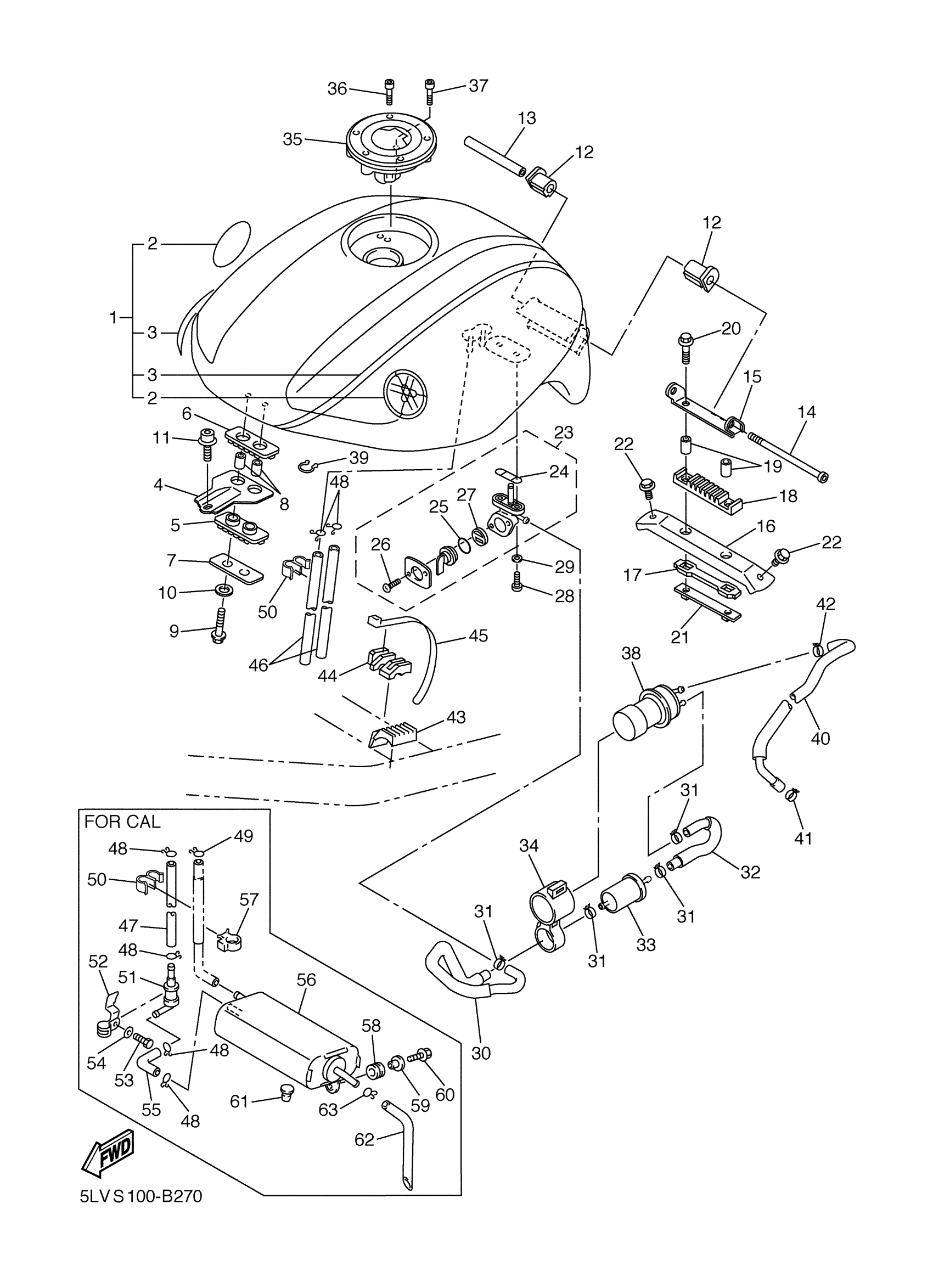

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 FUEL TANK Diagram
#
1
FUEL TANK COMP.
5LV-Y2410-10-X5
Unavailable
1
FUEL TANK COMP. (YAMAHA BLACK) (BLUISH SILVER 4)
5LV-Y2410-10-X7
Unavailable
3
. GRAPHIC SET (BLUISH SILVER 4)
5LV-24240-20-00
Unavailable
4
BRACKET, FUEL TANK 1
5LV-24191-01-00
Unavailable
5
DAMPER, LOCATING 1
5LV-24181-10-00
Unavailable
6
DAMPER, LOCATING 3
5LV-24183-10-00
Unavailable
7
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
11
BOLT(4KG)
90109-081G0-00
Unavailable
12
DAMPER, LOCATING 1
4YR-24181-00-00
Unavailable
15
BRACKET, TANK FITTING
5DM-21346-00-00
Unavailable
16
BRACKET, TANK FITTING
5LV-21346-00-00
Unavailable
17
DAMPER, LOCATING 1
5LV-24181-00-00
Unavailable
18
DAMPER, LOCATING 1
5DM-24181-00-00
Unavailable
20
BOLT, FLANGE
95817-06025-00
Unavailable
21
NUT
5DM-21296-00-00
Unavailable
22
BOLT, FLANGE
95817-06010-00
Unavailable
23
FUEL COCK ASSY 1
2VN-24500-02-00
Unavailable
24
O-RING
4X8-24512-00-00
Unavailable
25
SEAL, COCK
3AJ-24534-01-00
Unavailable
26
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
27
VALVE PACKING
3AC-24523-00-00
Unavailable
28
SCREW 256241430000
90149-06011-00
Unavailable
29
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
30
PIPE, FUEL 1
5LV-24311-00-00
Unavailable
31
CLIP(3GM)
90467-12124-00
Unavailable
32
PIPE 2
5LV-24312-00-00
Unavailable
33
FILTER ASSY
1FK-24560-10-00
Unavailable
34
BAND 1
5LV-24398-10-00
Unavailable
35
CAP ASSY
39P-24602-00-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
37
BOLT, SOCKET
91317-05010-00
Unavailable
38
FUEL PUMP COMP.
4SV-13907-03-00
Unavailable
39
CLAMP(2LM)
90464-44109-00
Unavailable
40
PIPE, FUEL 1
5LV-13971-00-00
Unavailable
41
CLIP
90467-13114-00
Unavailable
42
CLIP(3GM)
90467-12124-00
Unavailable
43
DAMPER, LOCATING 2
5LV-24182-00-00
Unavailable
44
DAMPER, LOCATING 3
5LV-24183-00-00
Unavailable
45
BAND
1UA-82591-00-00
Unavailable
46
HOSE
90445-10021-00
Unavailable
47
HOSE
90445-11025-00
Unavailable
48
CLIP
90467-090A2-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
CLIP
90467-090A2-00
Unavailable
50
CLAMP(6M7)
90464-09M31-00
Unavailable
51
ROLL OVER VALVE ASSY
5LV-24180-00-00
Unavailable
52
PLATE, FITTING
5LV-2411F-00-00
Unavailable
53
BOLT
97027-05010-00
Unavailable
54
WASHER(1RW)
92907-05600-00
Unavailable
55
PIPE 4
5LV-24314-00-00
Unavailable
56
CANISTER ASSY
5LV-24170-00-00
Unavailable
57
CLAMP(4HM)
90464-15192-00
Unavailable
58
GROMMET (1E5)
90480-13163-00
Unavailable
59
COLLAR(42G)
90387-062L2-00
Unavailable
60
BOLT, FLANGE
95817-06016-00
Unavailable
61
GROMMET (397)
90480-10068-00
Unavailable
62
HOSE
90445-12003-00
Unavailable
63
CLIP (4X4)
90467-12052-00
Unavailable
