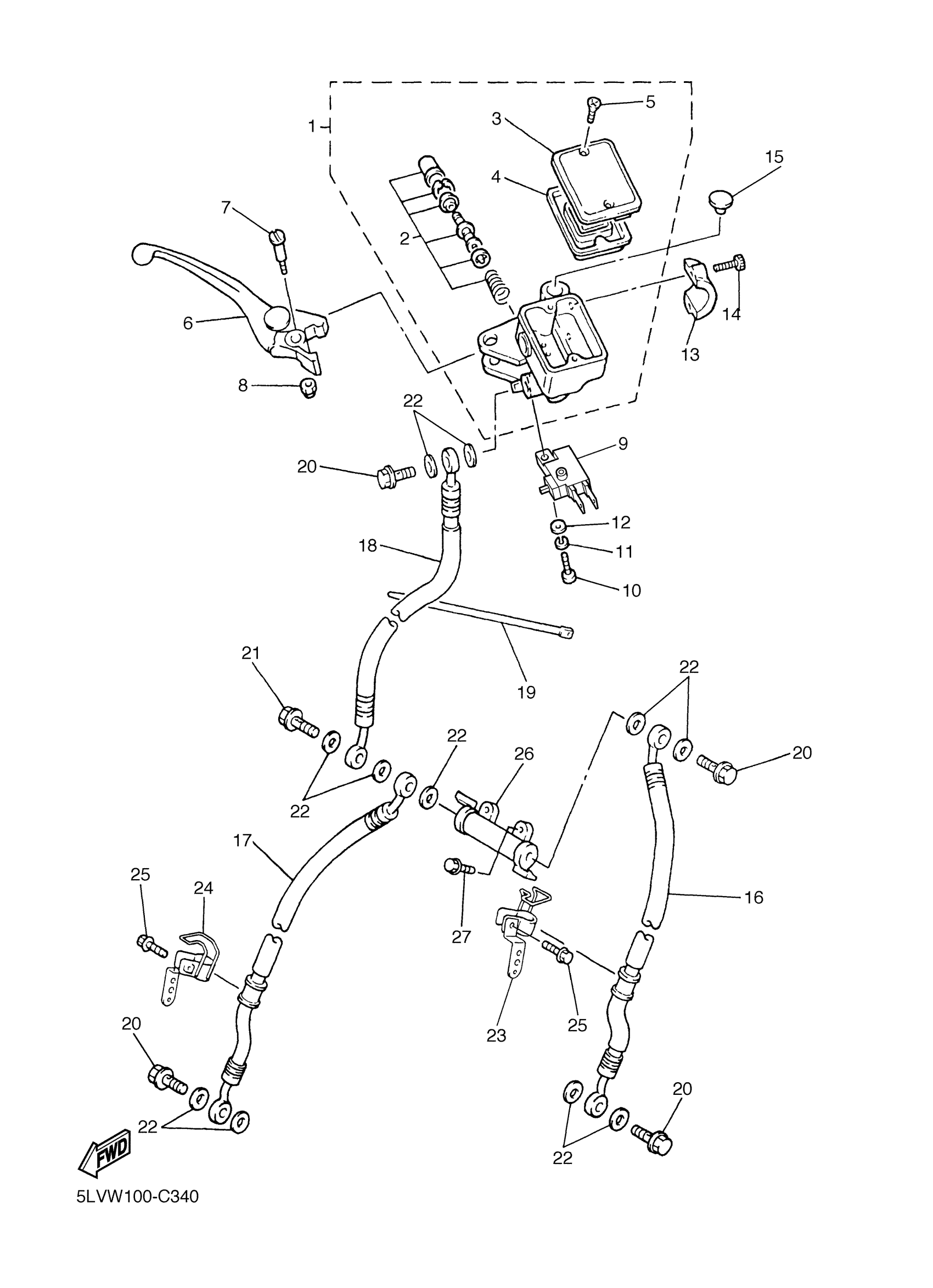

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5DM-W2587-01-00

$313.99

2

CYLINDER KIT, MASTER

5DM-W0041-50-00

$75.99

3

RESERVOIR CAP SET

4HM-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

LEVER 2

5EB-83922-01-00

$81.99

7

BOLT, LEVER

3FV-2589F-00-00

$16.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

10

SCREW, PAN HEAD

98511-04012-00

Unavailable

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

WASHER, PLAIN (646)

92990-04600-00

$5.99

13

BRACKET, MASTER CYLINDER

4HM-25867-00-00

$37.99

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

PLUG (341-26329-00)

90338-09012-00

$9.49

16

HOSE, BRAKE 1

5LV-25872-01-00

Unavailable

17

HOSE, BRAKE 2

5LV-25873-01-00

Unavailable

18

HOSE, BRAKE

5LV-25874-01-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

BOLT, UNION

90401-10038-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

5LV-25875-20-00

Unavailable

24

HOLDER, BRAKE HOSE 2

5LV-25876-20-00

Unavailable

25

BOLT, WASHER BASED(4KG)

90105-060A0-00

Unavailable

26

JOINT

42H-25885-01-00

Unavailable

27

. BOLT, FLANGE

95027-06020-00

Unavailable
