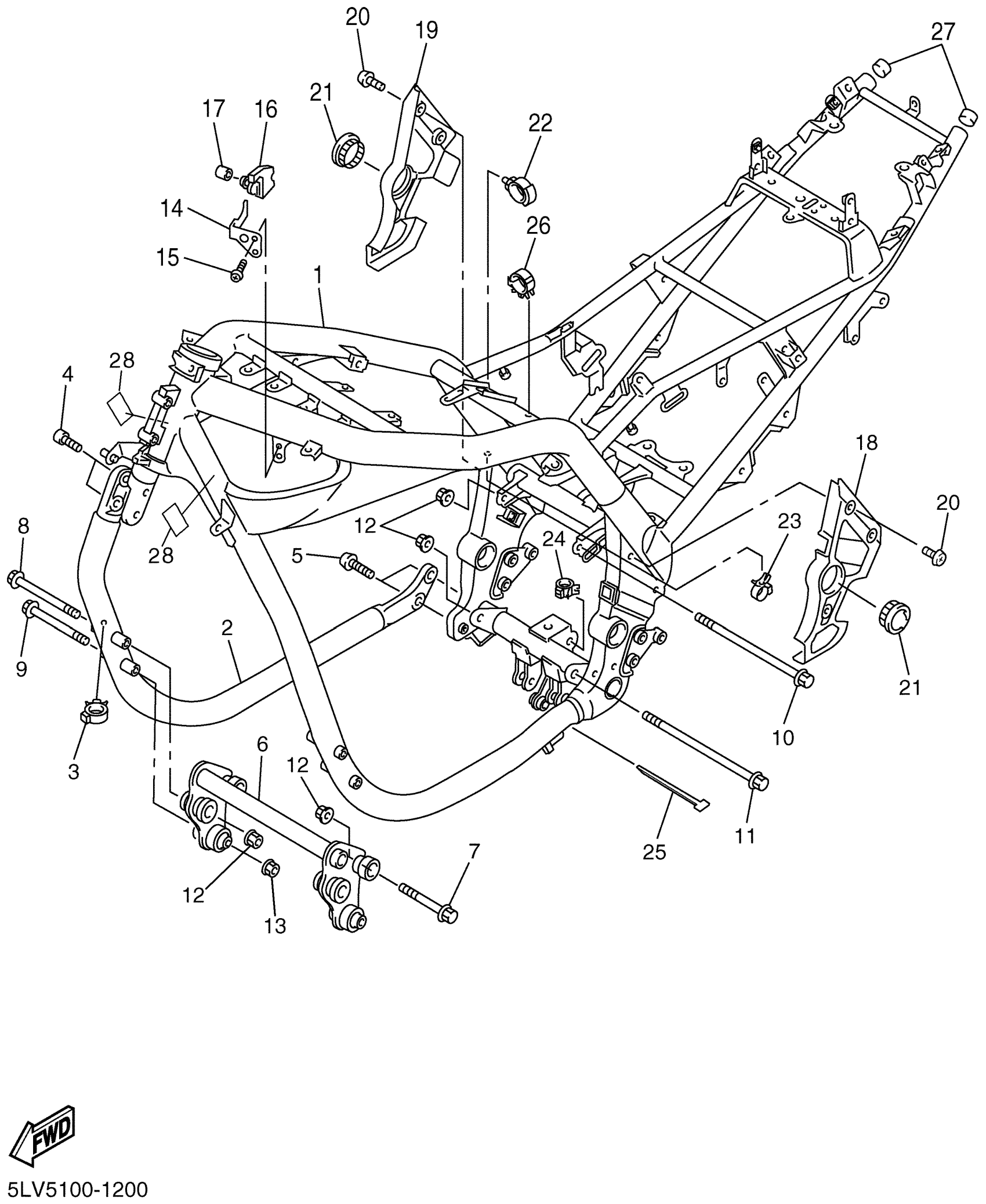

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5LV-21110-20-00

Unavailable

2

DOWN TUBE COMP. 2

5LV-21150-10-00

Unavailable

3

CLAMP(4KM)

90464-25217-00

$4.14

4

BOLT, SOCKET

91317-10025-00

$8.49

5

BOLT,HEX. SOCKET BUTTON

90111-10019-00

$3.55

6

ENGINE BRACKET COMP.

5LV-21400-00-00

Unavailable

7

BOLT, WASHER BASED

90105-10028-00

Unavailable

8

BOLT, WASHER BASED

90105-10027-00

$10.49

9

BOLT, FLANGE

90105-08042-00

Unavailable

10

BOLT, FLANGE

95817-10180-00

Unavailable

11

BOLT, FLANGE(MH0)

95817-10190-00

$5.60

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

NUT, SELF-LOCKING

90185-08169-00

$8.49

14

BRACKET 7

4XV-2116J-00-00

Unavailable

15

SCREW, BINDING

98907-06012-00

$9.49

16

STAY 1

4XV-2116A-00-00

Unavailable

17

COLLAR

90387-061K9-00

Unavailable

18

COVER

5LV-2117F-00-00

Unavailable

19

COVER 2

5LV-2117M-00-00

Unavailable

20

SCREW(3XV)

90149-06298-00

Unavailable

21

COVER

4BH-2219X-00-00

Unavailable

22

CLAMP(4AP)

90464-20181-00

Unavailable

23

CLAMP(4GY)

90464-10190-00

Unavailable

24

CLAMP(4GY)

90464-08189-00

Unavailable

25

CLAMP(4FM)

90464-15195-00

Unavailable

26

CLAMP(4KM)

90464-25217-00

$4.14

27

CAP

3YX-2143A-00-00

Unavailable

28

SEAL

1JK-21268-00-00

Unavailable
