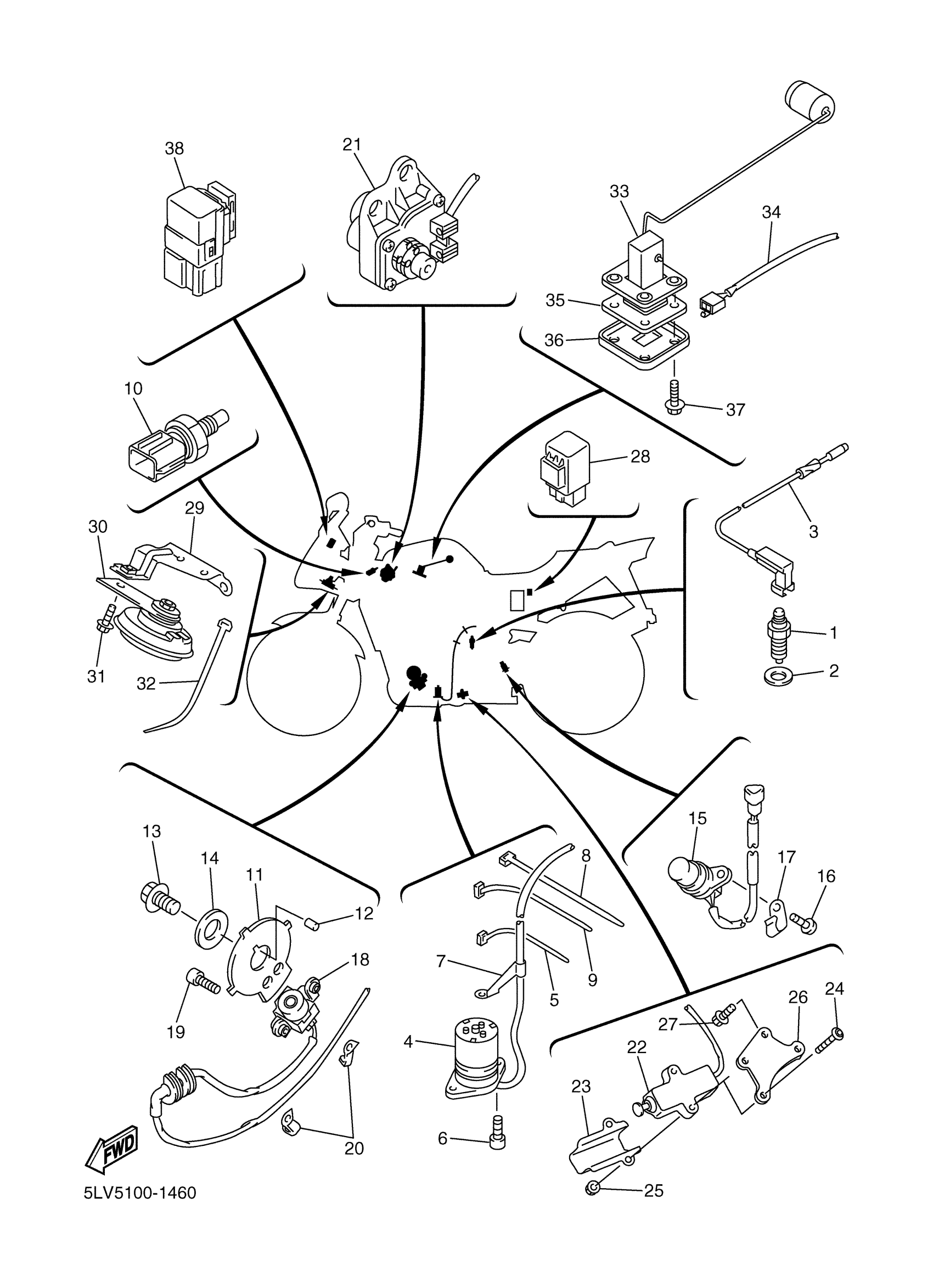

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

2

GASKET (1KH,1.0T)

90430-10148-00

$5.60

3

WIRE, LEAD

5LV-82541-00-00

Unavailable

4

OIL LEVEL GAUGE ASSY

5LV-85720-01-00

$298.99

5

CLAMP

5Y9-12491-00-00

$6.99

6

BOLT,SOCKET

91317-06014-00

$9.49

7

CLAMP

90465-08013-00

Unavailable

8

CLAMP(4FM)

90464-15195-00

$4.41

9

CLAMP

90464-13077-00

$8.49

10

THERMO UNIT

5JJ-83591-00-00

$123.99

11

ROTOR

4XV-81673-00-00

Unavailable

12

PIN, DOWEL (3Y1)

93604-29151-00

$7.49

13

BOLT (30X)

90105-10290-00

Unavailable

14

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

15

SENSOR, SPEED

1C2-83755-00-00

Unavailable

16

BOLT,SOCKET

91317-06014-00

$9.49

17

CLAMP

90465-08028-00

Unavailable

18

PICK-UP ASSY

5LV-81670-01-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

CLAMP

90465-08054-00

Unavailable

21

SERVO MOTOR ASSY

5LV-Y8585-01-00

Unavailable

22

SWITCH, SIDE STAND

5EB-82566-01-00

Unavailable

23

PLATE

5JJ-82388-00-00

Unavailable

24

BOLT, BUTTON HEAD

92017-05025-00

Unavailable

25

NUT, S/L FLANGE

95607-05200-00

Unavailable

26

PLATE

5LV-8252H-00-00

Unavailable

27

BOLT, FLANGE

95817-06014-00

Unavailable

28

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

29

BRACKET, HORN

5LV-23377-00-00

Unavailable

30

HORN

2KG-83371-00-00

Unavailable

31

BOLT, FLANGE

95817-06010-00

Unavailable

32

CLAMP(4FM)

90464-15195-00

$4.41

33

SENDER UNIT ASSY, FUEL METER

5LV-85752-00-00

Unavailable

34

WIRE, SUB LEAD

5LV-82509-00-00

Unavailable

35

GASKET, SENDER UNIT

4US-85753-00-00

Unavailable

36

RETAINER

2JG-85757-00-00

Unavailable

37

BOLT, WITH WASHER

90119-05071-00

Unavailable

38

RELAY ASSY

5JJ-81950-11-00

Unavailable
