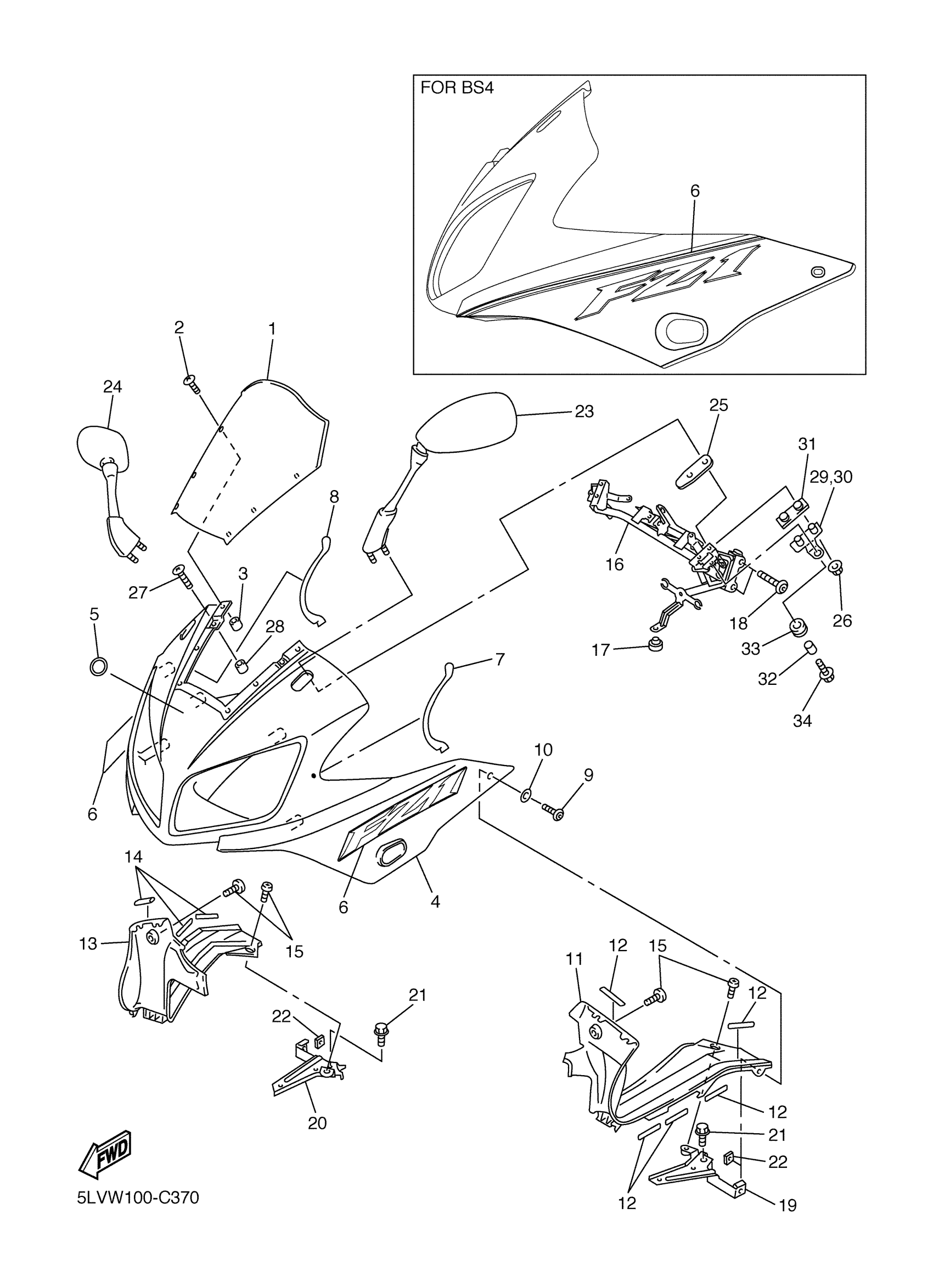

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 COWLING 1 Diagram
#
Description
Price
4
BODY, FRONT UPPER 1
5LV-2835G-00-33
Unavailable
6
EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5LV-28328-60-00
Unavailable
6
GRAPHIC SET, COWLING (BLUISH SILVER 4)
5LV-28390-20-00
Unavailable
8
SEAL
5LV-28307-10-00
Unavailable
10
WASHER, PLATE
90202-06170-00
Unavailable
11
PANEL, INNER 1
5LV-2836K-00-00
Unavailable
13
PANEL, INNER 2
5LV-2836L-00-00
Unavailable
15
SCREW, BINDING (10V)
90154-05013-00
Unavailable
16
STAY 1
5LV-28356-00-00
Unavailable
17
DAMPER
18A-24724-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD(38V)
90110-08071-00
Unavailable
19
BRACKET 1
5LV-2836A-00-00
Unavailable
20
BRACKET 2
5LV-2836E-00-00
Unavailable
21
BOLT, FLANGE
95817-06010-00
Unavailable
22
NUT,SQUARE
90173-06802-00
Unavailable
23
REAR VIEW MIRROR ASSY(LEFT)
5LV-26280-00-00
Unavailable
24
REAR VIEW MIRROR ASSY(RIGHT)
5LV-26290-00-00
Unavailable
25
PLATE, MIRROR FITTING 1
4SV-26298-00-00
Unavailable
26
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
27
SCREW, BINDING
90154-05007-00
Unavailable
29
PLATE
5LV-28336-00-00
Unavailable
30
PLATE
5LV-28337-00-00
Unavailable
31
DAMPER
5LV-28371-00-00
Unavailable
32
SPACER (4F2)
90560-06201-00
Unavailable
33
GROMMET
90480-13003-00
Unavailable
34
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
