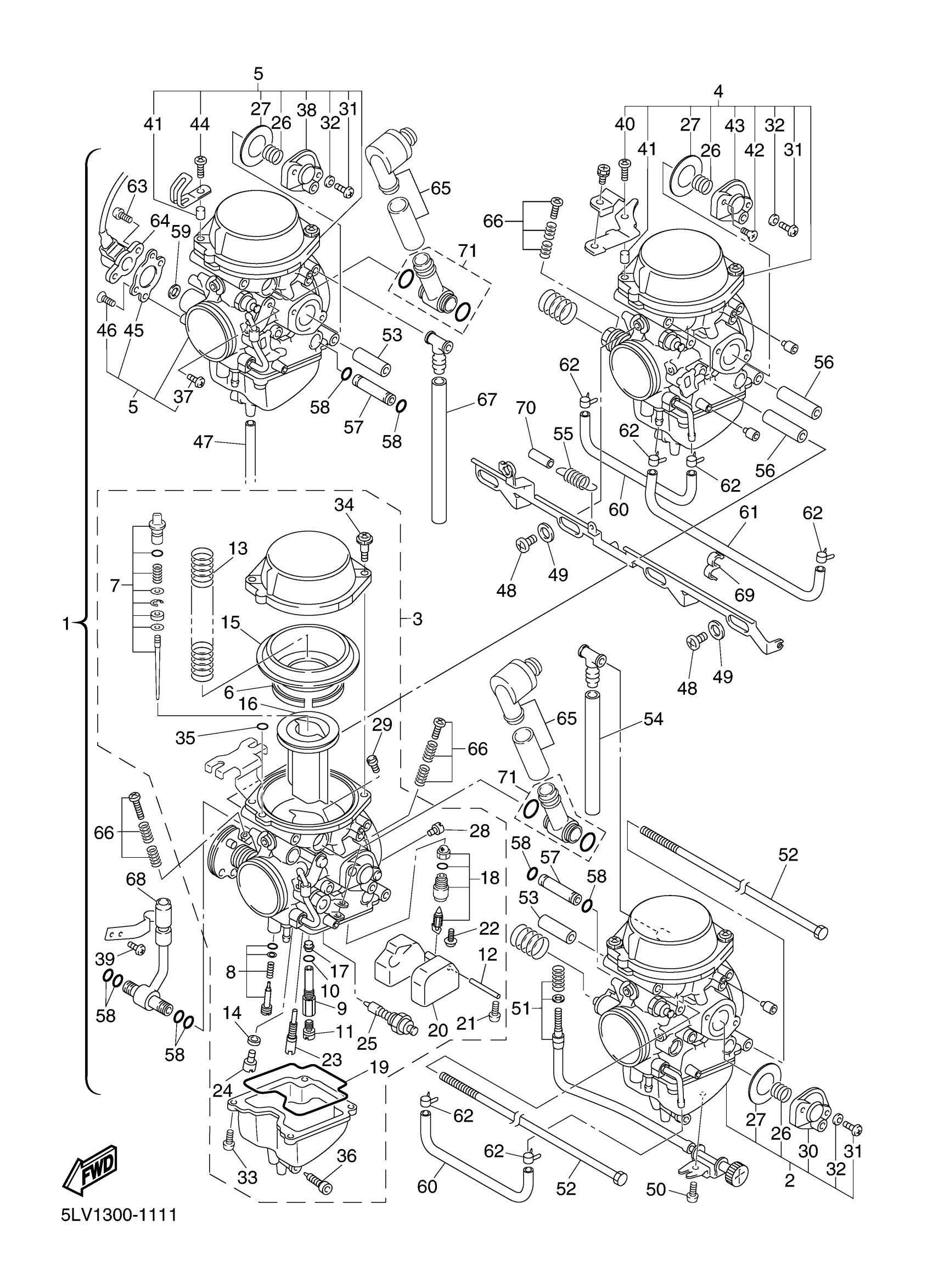

Yamaha FZS1SC (FZ1 CA) 5LVX 2004 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSY

5LV-14900-30-00

Unavailable

1

CARBURETOR ASSY

5LV-14900-40-00

Unavailable

2

. CARBURETOR ASSY 1

5LV-14901-30-00

Unavailable

2

. CARBURETOR ASSY 1

5LV-14901-40-00

Unavailable

3

. CARBURETOR ASSY 2

5LV-14902-30-00

Unavailable

3

. CARBURETOR ASSY 2

5LV-14902-40-00

Unavailable

4

. CARBURETOR ASSY 3

5LV-14903-30-00

Unavailable

4

. CARBURETOR ASSY 3

5LV-14903-40-00

Unavailable

5

. CARBURETOR ASSY 4

5LV-14904-30-00

Unavailable

5

. CARBURETOR ASSY 4

5LV-14904-40-00

Unavailable

6

O-RING

5EL-14561-00-00

$10.99

7

NEEDLE SET

5LV-1490J-20-00

Unavailable

7

.. NEEDLE SET

5LV-1490J-30-00

Unavailable

8

PILOT SCREW SET

5MP-14105-00-00

$19.99

9

HOLDER

5LV-14261-00-00

Unavailable

10

O-RING

583-14561-00-00

Unavailable

11

JET, MAIN (#130)

3G2-14231-26-A0

Unavailable

11

JET,MAIN #132.5

3G2-1423A-77-00

Unavailable

12

PIN, FLOAT

127-14186-00-00

Unavailable

13

SPRING, DIAPHRAGM

5LV-14933-00-00

Unavailable

14

RING

5EL-14918-00-00

Unavailable

15

DIAPHRAGM

5EL-24411-00-00

Unavailable

16

.... VALVE, THROTTLE 1

5LV-14112-00-00

Unavailable

17

NOZZLE, MAIN

5DM-14141-40-00

Unavailable

18

NEEDLE VALVE SET

4KM-14107-15-00

Unavailable

19

O-RING

5DM-14561-00-00

Unavailable

20

FLOAT

5DM-14985-00-00

Unavailable

21

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

22

SCREW

1FN-14565-00-00

Unavailable

23

JET, PILOT (# 15)

4KM-14142-15-00

Unavailable

24

JET,MAIN # 42.5

3G2-1423A-59-00

Unavailable

25

STARTER SET

5DM-1410A-00-00

Unavailable

26

. SPRING

4XY-14589-00-00

Unavailable

27

DIAPHRAGM ASSY

5AP-14940-00-00

Unavailable

28

JET, MAIN (# 85)

1HX-14231-17-00

Unavailable

29

JET, MAIN (#125)

1HX-14231-25-00

Unavailable

30

COVER, CARBURETOR

5AP-14280-00-00

Unavailable

31

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

31

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

32

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

32

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

33

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

34

SCREW

4KM-14216-00-00

Unavailable

34

SCREW

4KM-14216-00-00

Unavailable

35

O-RING (493-CARB.)

354-14147-00-00

Unavailable

36

PLUG, DRAIN

4KP-14191-00-00

Unavailable

37

GASKET, EXHAUST

98507-05008-00

Unavailable

38

.. COVER

5EL-14480-00-00

Unavailable

39

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

40

SCREW, PAN HEAD

90157-05M19-00

Unavailable

41

RING

4KM-14194-00-00

Unavailable

42

SCREW,FLAT

98707-04014-00

Unavailable

43

.... COVER, CARBURETOR

5HK-14280-00-00

Unavailable

44

SCREW, PAN HEAD

98507-05014-00

Unavailable

45

.... BRACKET

5EA-14867-00-00

Unavailable

46

SCREW, FLAT

98707-04008-00

Unavailable

47

PIPE

3JE-14197-00-00

Unavailable

48

SCREW

5DM-14565-00-00

Unavailable

49

PACKING

4NK-14327-00-00

Unavailable

50

SCREW, PAN HEAD (7G3)

98580-05008-00

Unavailable

51

THROTTLE SCREW SET

5EA-14103-00-00

Unavailable

52

. SCREW

4SV-14592-00-00

Unavailable

53

PIPE

5EA-14148-00-00

Unavailable

54

HOSE

4SV-14987-30-00

Unavailable

55

. SPRING

4SV-14935-00-00

Unavailable

56

PIPE

5EA-14996-00-00

Unavailable

57

PIPE

4SV-14996-40-00

Unavailable

58

O-RING

36Y-14147-00-00

Unavailable

59

WASHER

4KG-14285-00-00

Unavailable

60

HOSE

5DM-14987-00-00

Unavailable

61

PIPE

5EL-14396-00-00

Unavailable

62

CLIP

5DM-14919-00-00

Unavailable

63

SCREW

4WM-14565-00-00

Unavailable

64

THROTTLE SENSOR ASSY

4XY-85885-01-00

Unavailable

65

PIPE

4SV-14197-00-00

Unavailable

66

STOP SCREW SET

4KM-1490K-00-00

Unavailable

67

HOSE

4SV-14987-20-00

Unavailable

68

.. HOSE

5EA-14987-10-00

Unavailable

69

.. CLIP

5LV-14919-00-00

Unavailable

70

SEAT, SPRING

5DM-14936-00-00

Unavailable

71

. NIPPLE, 1

5LV-1410F-00-00

Unavailable
