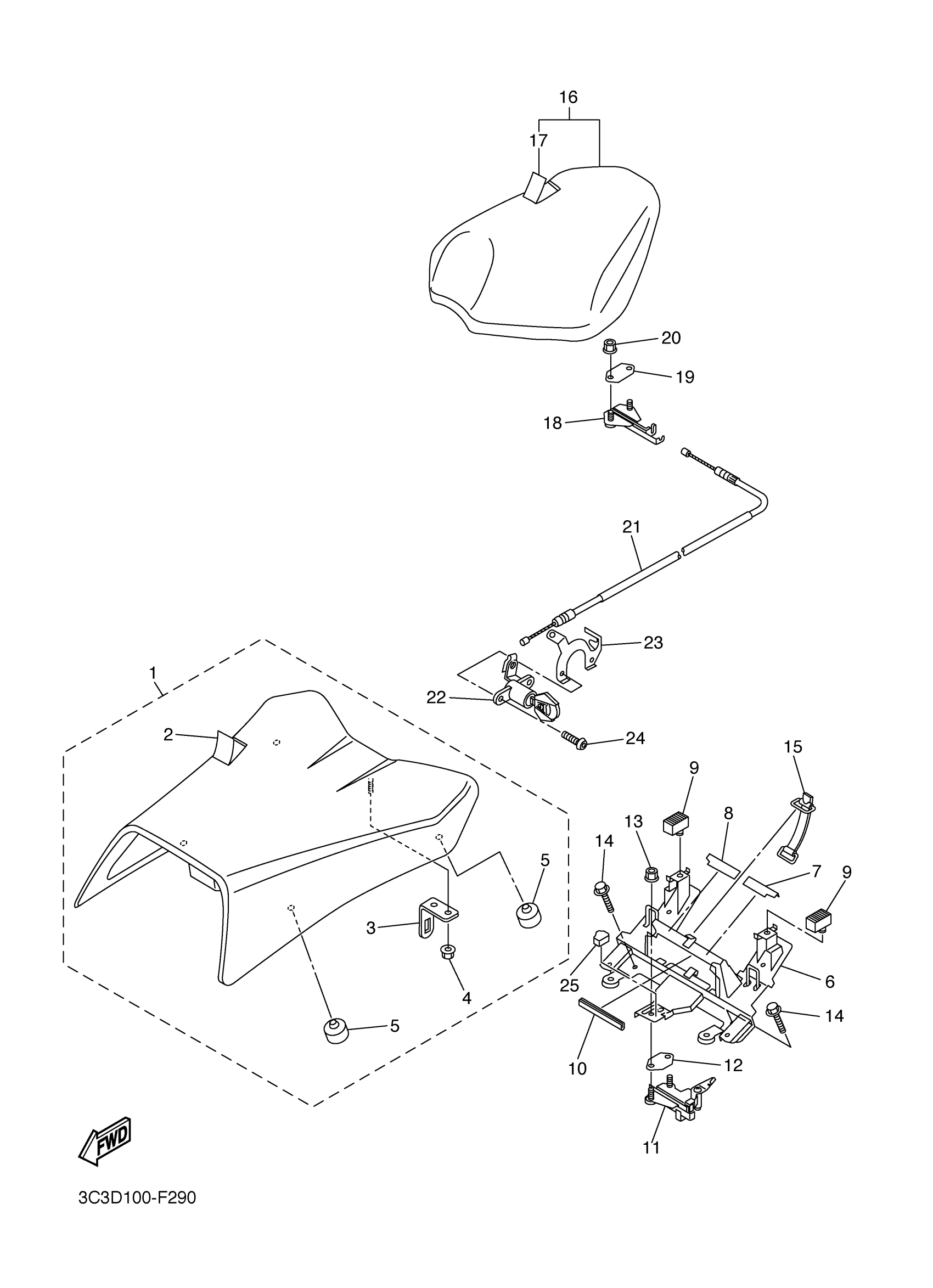

Yamaha FZS10ZR (FZ1) 1CA20 2010 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

2D1-24710-02-00

Unavailable

2

COVER, SINGLE SEAT

2D1-24711-01-00

Unavailable

3

BRACKET, SEAT

4HM-24728-00-00

$11.99

4

NUT, U FLANGE

95604-06200-00

$8.49

5

STOPPER MAIN STAND

278-27114-00-00

$8.99

6

BRACKET, SEAT 1

3C3-21341-01-00

Unavailable

7

PROTECTOR,1

2D1-2476U-00-00

$2.29

8

PROTECTOR 2

2D1-2476V-00-00

Unavailable

9

PAD, SEAT

3C3-24741-00-00

$9.99

10

MOLD, SEAT

2D1-24785-00-00

$8.99

11

SEAT LOCK ASSY

2D1-24780-02-00

Unavailable

12

PLATE

4BP-24792-00-00

Unavailable

13

NUT, FLANGE

95702-06500-00

$2.39

14

BOLT, FLANGE

95817-06020-00

$3.81

15

BAND,BATTERY

7H3-82131-00-00

$17.49

16

TANDEM SEAT ASSY

3C3-24750-03-00

Unavailable

17

COVER, TANDEM SEAT

3C3-24751-01-00

Unavailable

18

SEAT LOCK ASSY

4BP-24780-00-00

Unavailable

19

PLATE

4BP-24792-00-00

Unavailable

20

NUT, FLANGE

95702-06500-00

$2.39

21

CABLE, SEAT LOCK

2D1-2478E-00-00

Unavailable

22

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

23

STAY, LOCK

4XV-2117K-00-00

Unavailable

24

SCREW

90149-06135-00

Unavailable

25

DAMPER

2D1-24665-00-00

Unavailable
