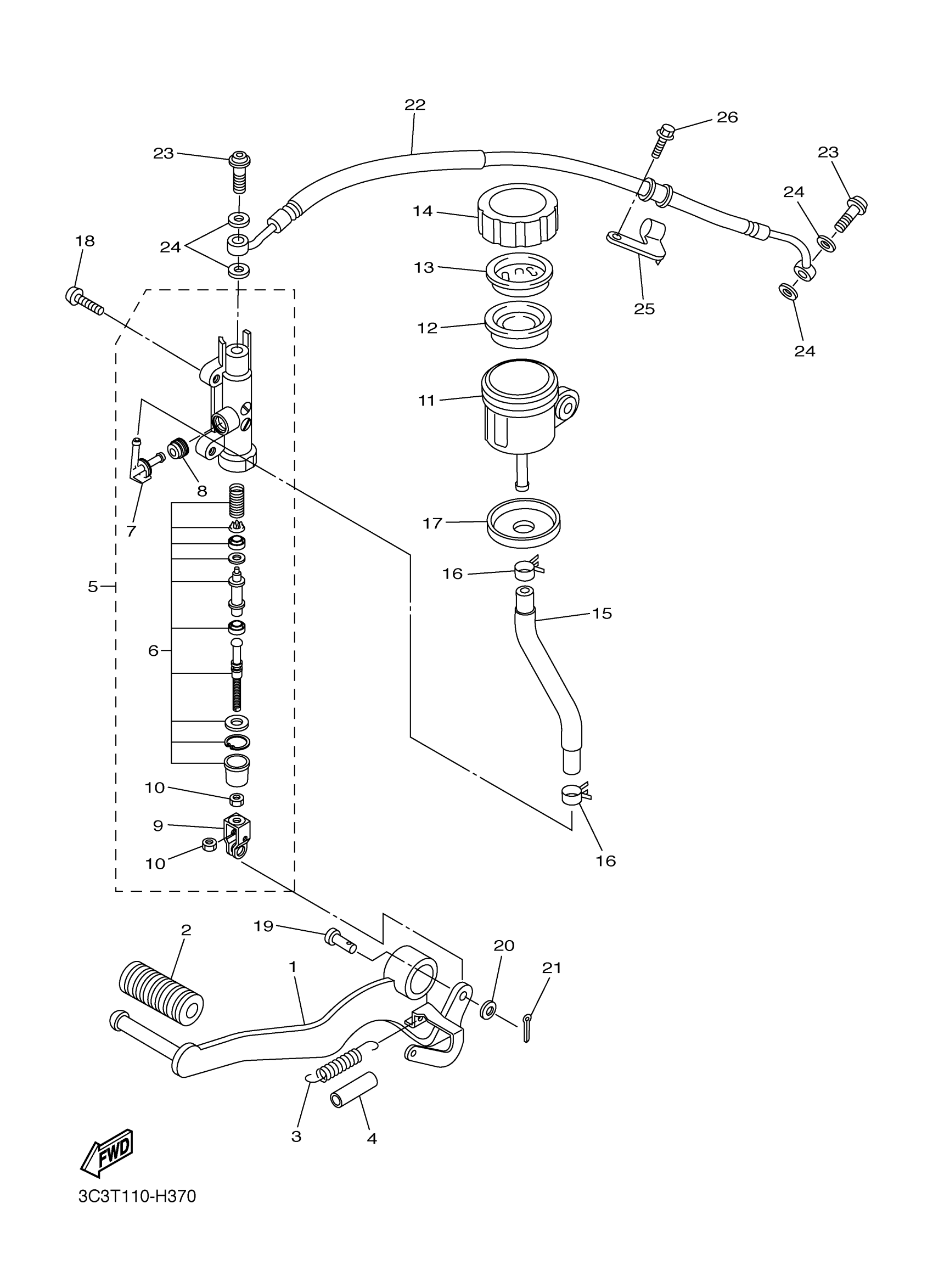

Yamaha FZS10ZR (FZ1) 1CA20 2010 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2D1-27211-00-00

$115.99

2

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

3

SPRING, TENSION

90506-20014-00

Unavailable

4

HOSE

90446-15386-00

$7.49

5

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

6

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

7

JOINT

2D1-2582A-01-00

$5.49

8

O-RING

4BP-2585F-01-00

Unavailable

9

JOINT

4BP-27222-02-00

$29.99

10

NUT

90170-08010-00

$8.49

11

TANK, RESERVOIR

2D1-25894-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

13

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

14

CAP, RESERVOIR

5SL-25852-00-00

$27.99

15

HOSE, RESERVOIR

2D1-25895-00-00

Unavailable

16

CLIP

90467-120A3-00

Unavailable

17

BOOT

5D0-2583H-00-00

Unavailable

18

BOLT, BUTTON

92014-08020-00

Unavailable

19

PIN, CLEVIS

90240-08005-00

Unavailable

20

WASHER, PLATE

90201-08066-00

Unavailable

21

PIN, COTTER (648)

91490-20015-00

Unavailable

22

HOSE, BRAKE 3

2D1-25874-01-00

Unavailable

23

BOLT, UNION

90401-10172-00

Unavailable

24

GASKET

90430-10005-00

Unavailable

25

HOLDER, BRAKE HOSE

2D1-25886-00-00

Unavailable

26

BOLT, WITH WASHER

90119-05021-00

Unavailable
