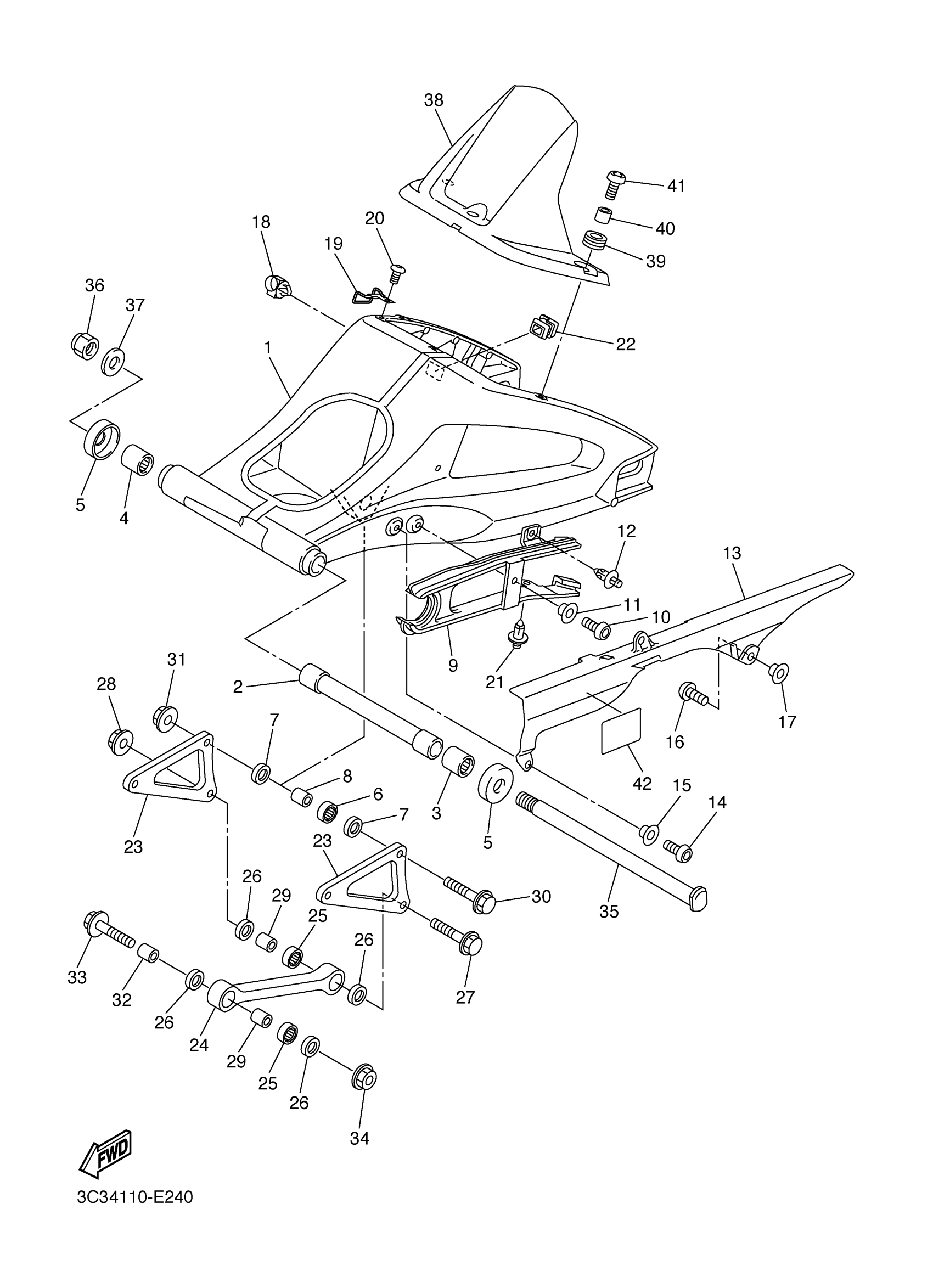

Yamaha FZS10ZR (FZ1) 1CA20 2010 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
2D1-22110-11-00
Unavailable
2
BUSH
39P-22184-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD(1FK)
90110-06102-00
Unavailable
17
COLLAR
90387-06009-00
Unavailable
18
CLAMP
90464-17003-00
Unavailable
19
HOLDER, BRAKE HOSE
2D1-25887-00-00
Unavailable
21
RIVET
90269-07008-00
Unavailable
22
CAP
2D1-22117-00-00
Unavailable
23
ARM, RELAY
2D1-2217A-10-00
Unavailable
24
ARM 1
2D1-2217M-00-00
Unavailable
25
BEARING
93315-31758-00
Unavailable
27
BOLT, FLANGE
90105-10283-00
Unavailable
28
NUT, S/L FLANGE
95602-10200-00
Unavailable
30
BOLT, FLANGE
90105-10283-00
Unavailable
31
NUT, S/L FLANGE
95602-10200-00
Unavailable
32
COLLAR
90387-10043-00
Unavailable
33
BOLT, FLANGE
90105-10211-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
SHAFT, PIVOT
39P-22141-00-00
Unavailable
36
NUT, SELF-LOCKING
90185-18009-00
Unavailable
37
WASHER, PLATE
90201-18013-00
Unavailable
38
REAR FENDER COMP.
2D1-21650-00-00
Unavailable
39
GROMMET
90480-12003-00
Unavailable
40
COLLAR
90387-06219-00
Unavailable
41
SCREW(4DN)
90149-06302-00
Unavailable
42
LABEL, TIRE
14B-21668-01-00
Unavailable
