Description

Price

1

BOLT, UNION

90401-20007-00

Unavailable

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

RELIEF VALVE ASSY

5VY-13490-00-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

STRAINER COVER ASSY

2D1-13400-10-00

Unavailable

6

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

7

GASKET

214-11198-01-00

$3.17

8

PIN, DOWEL

99530-08012-00

Unavailable

9

GASKET, STRAINER COVER

4C8-13414-00-00

$36.99

10

BOLT,SOCKET

91317-06025-00

$5.60

11

PIPE, DELIVERY 1

5VY-13161-00-00

Unavailable

12

BOLT,SOCKET

91317-06012-00

$8.49

13

OIL COOLER ASSY

5VY-13470-00-00

Unavailable

14

BOLT, UNION

5EB-12822-00-00

$74.99

15

GASKET

5EB-13475-00-00

$18.49

16

O-RING

5JW-13473-00-00

Unavailable

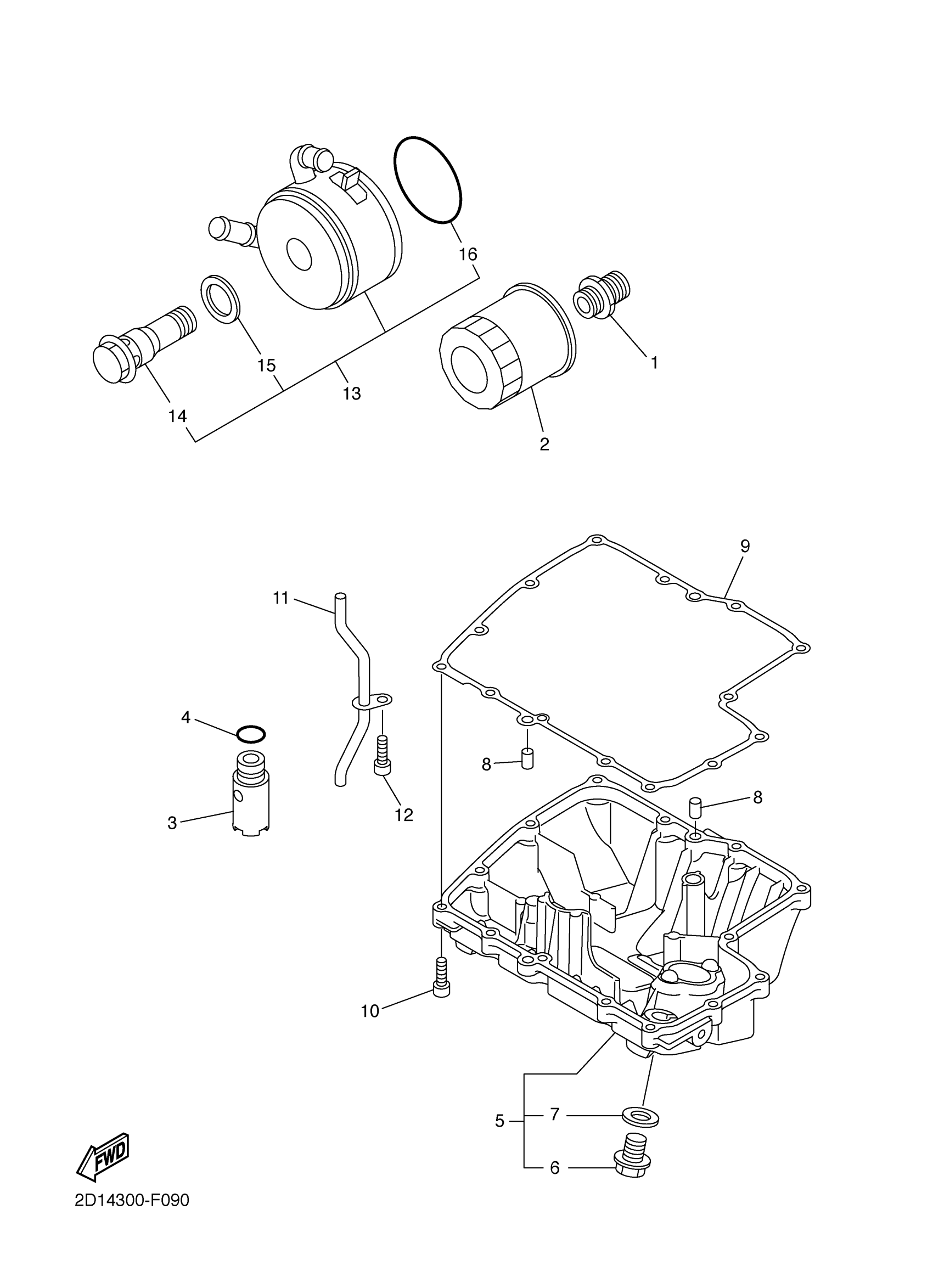

Yamaha FZS10ZR (FZ1) 1CA20 2010 OIL CLEANER Diagram

BOLT, UNION

ELEMENT ASSY, OIL

RELIEF VALVE ASSY

O-RING (22U)

STRAINER COVER ASSY

PLUG, STRAIGHT SCREW(3FA)

GASKET

PIN, DOWEL

GASKET, STRAINER COVER

BOLT,SOCKET

PIPE, DELIVERY 1

BOLT,SOCKET

OIL COOLER ASSY

BOLT, UNION

GASKET

O-RING
