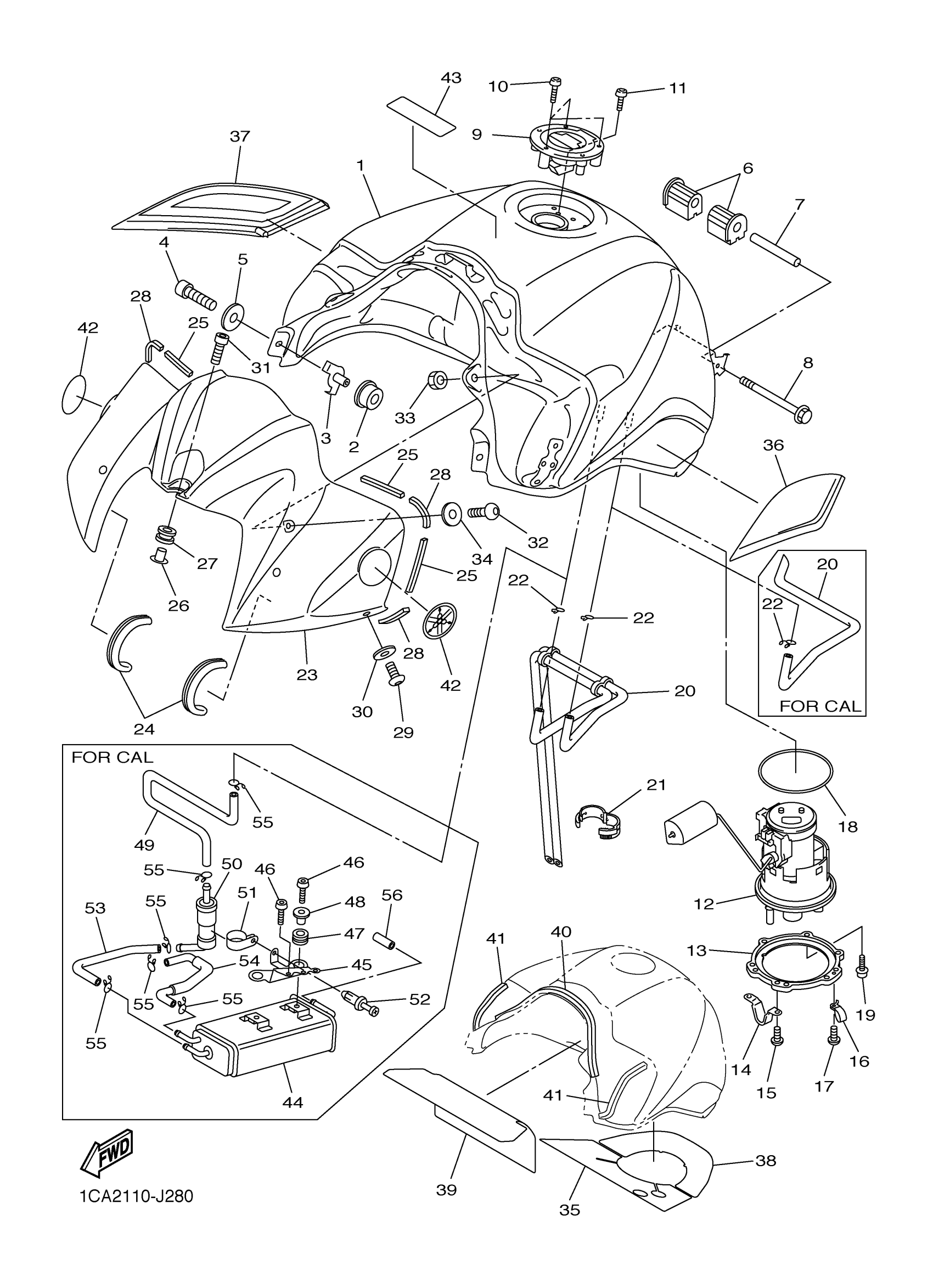

Yamaha FZS10ZR (FZ1) 1CA20 2010 FUEL TANK Diagram
#
7
COLLAR(JF3)
90387-061W6-00
Unavailable
14
BRACKET, FUEL TANK 2
2D1-24192-00-00
Unavailable
16
CLAMP
90461-10010-00
Unavailable
18
O-RING
19B-24486-01-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
20
PIPE 7
2D1-24317-10-00
Unavailable
21
CLAMP
90464-16001-00
Unavailable
22
CLIP
90467-090A2-00
Unavailable
23
COVER, TOP
3C3-2171A-00-P3
Unavailable
24
MOLE 1
2D1-28345-01-00
Unavailable
25
DAMPER
4XV-2834E-00-00
Unavailable
26
COLLAR
90387-06222-00
Unavailable
27
GROMMET(3AA)
90480-12497-00
Unavailable
28
DAMPER, LOCATING 1
2D1-24181-00-00
Unavailable
29
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
30
WASHER, PLATE(MG5)
90202-05224-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
32
BOLT,HEX. SOCKET BUTTON
90111-05024-00
Unavailable
33
NUT
90179-05003-00
Unavailable
34
. WASHER, PLATE
90202-05088-00
Unavailable
35
DAMPER, PLATE 4
2D1-2414N-00-00
Unavailable
36
TANK SIDE COVER ASSY 1
2D1-24106-01-00
Unavailable
37
TANK SIDE COVER ASSY 2
2D1-24108-01-00
Unavailable
38
DAMPER, PLATE 3
2D1-2414K-00-00
Unavailable
39
DAMPER, PLATE 1
2D1-2414H-00-00
Unavailable
40
DAMPER, PLATE 5
2D1-2414P-00-00
Unavailable
41
DAMPER, PLATE 6
2D1-2414R-00-00
Unavailable
42
EMBLEM
5SL-2413B-00-00
Unavailable
43
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
