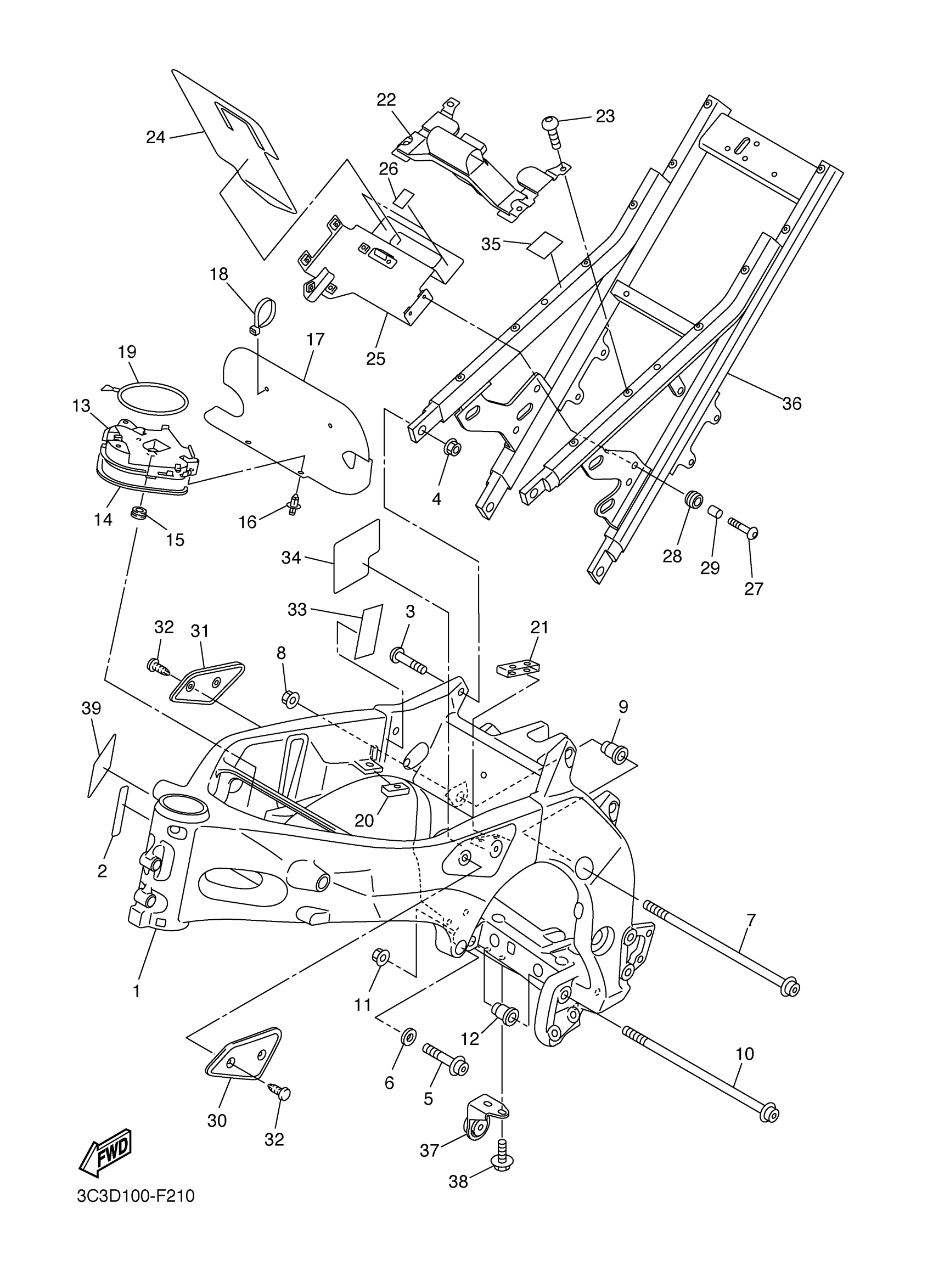

Yamaha FZS10ZR (FZ1) 1CA20 2010 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2D1-21110-03-P0

Unavailable

2

PROTECTOR, FRAME FR

2D1-2197E-00-00

Unavailable

3

SCREW, PAN HEAD

90157-10001-00

$3.18

4

NUT, SELF-LOCKING

90185-10170-00

$9.49

5

BOLT, SMALL FLANGE

95024-10040-00

$3.76

6

WASHER, PLATE

90201-10020-00

$9.49

7

BOLT, HEXAGON SOCKET HEAD

90110-10024-00

$21.99

8

NUT

90179-10025-00

$5.60

9

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-10024-00

$21.99

11

NUT

90179-10025-00

$5.60

12

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

13

COVER 3

2D1-2117N-00-00

Unavailable

14

DAMPER

2D1-2174Y-00-00

$2.29

15

. GROMMET

90480-01333-00

Unavailable

16

RIVET

90269-06001-00

Unavailable

17

PROTECTOR

2D1-2117G-00-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

BAND, TOOL

3YX-21376-00-00

Unavailable

20

DAMPER, LOCATING 4

2D1-24184-00-00

Unavailable

21

DAMPER, LOCATING 5

2D1-24185-00-00

Unavailable

22

BRACKET, TANK FITTING

2D1-21345-01-00

Unavailable

23

SCREW

90149-06164-00

Unavailable

24

DAMPER, LOCATING 3

2D1-24183-01-00

Unavailable

25

BRACKET, REGULATOR

2D1-21287-01-00

Unavailable

26

DAMPER 2

5YU-21639-00-00

Unavailable

27

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

28

GROMMET

90480-14013-00

Unavailable

29

COLLAR (J10)

90387-06026-00

Unavailable

30

COVER, SIDE 1

2D1-24129-00-00

Unavailable

31

COVER, SIDE 2

2D1-24139-00-00

Unavailable

32

RIVET

90269-06003-00

Unavailable

33

DAMPER

4PX-23426-00-00

Unavailable

34

SEAL 1

2D1-21575-00-00

Unavailable

35

SEAL

2D1-21268-10-00

Unavailable

36

REAR FRAME COMP.

2D1-21190-01-P0

Unavailable

37

BRACKET, FOOTREST 2

2D1-27425-02-00

Unavailable

38

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
