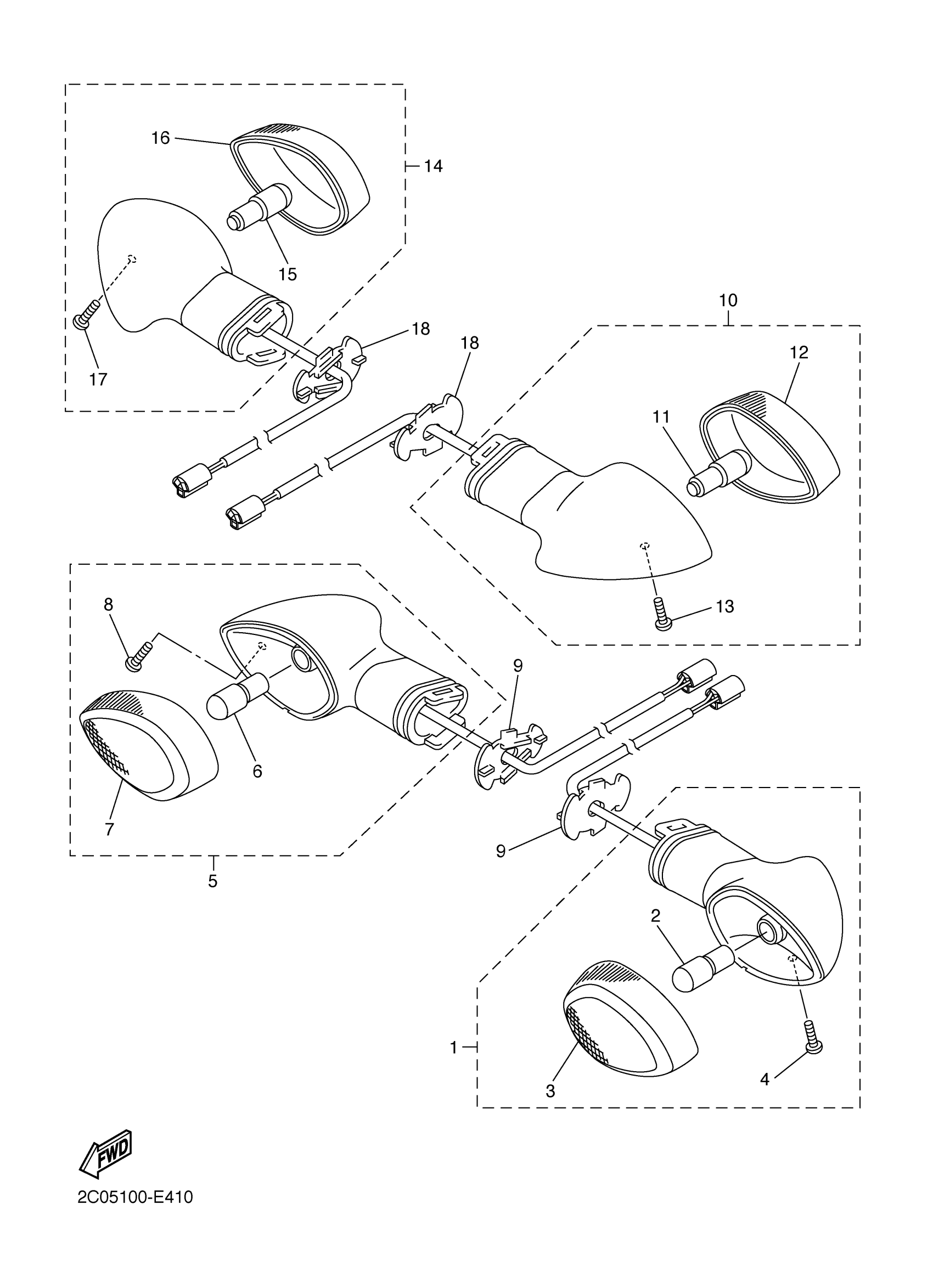

Yamaha FZS10ZR (FZ1) 1CA20 2010 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5PW-83310-10-00

$108.99

2

BULB, FLASHER

5GJ-83331-00-00

$15.49

3

LENS COMP

5PW-8333A-10-00

$33.99

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

FRONT FLASHER LIGHT ASSY 2

5PW-83320-11-00

$51.99

6

BULB, FLASHER

5GJ-83331-00-00

$15.49

7

LENS COMP

5PW-8334A-10-00

$33.99

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

STAY, FLASHER 1

2D1-83318-00-00

$7.99

10

REAR FLASHER LIGHT ASSY 1

3C3-83330-30-00

$82.99

11

BULB, FLASHER

5PW-83331-00-00

$14.49

12

LENS COMP

5PW-8334A-10-00

$33.99

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

REAR FLASHER LIGHT ASSY 2

3C3-83340-30-00

$72.99

15

BULB, FLASHER

5PW-83331-00-00

$14.49

16

LENS COMP

5PW-8333A-10-00

$33.99

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

STAY, FLASHER 1

2D1-83318-00-00

$7.99
