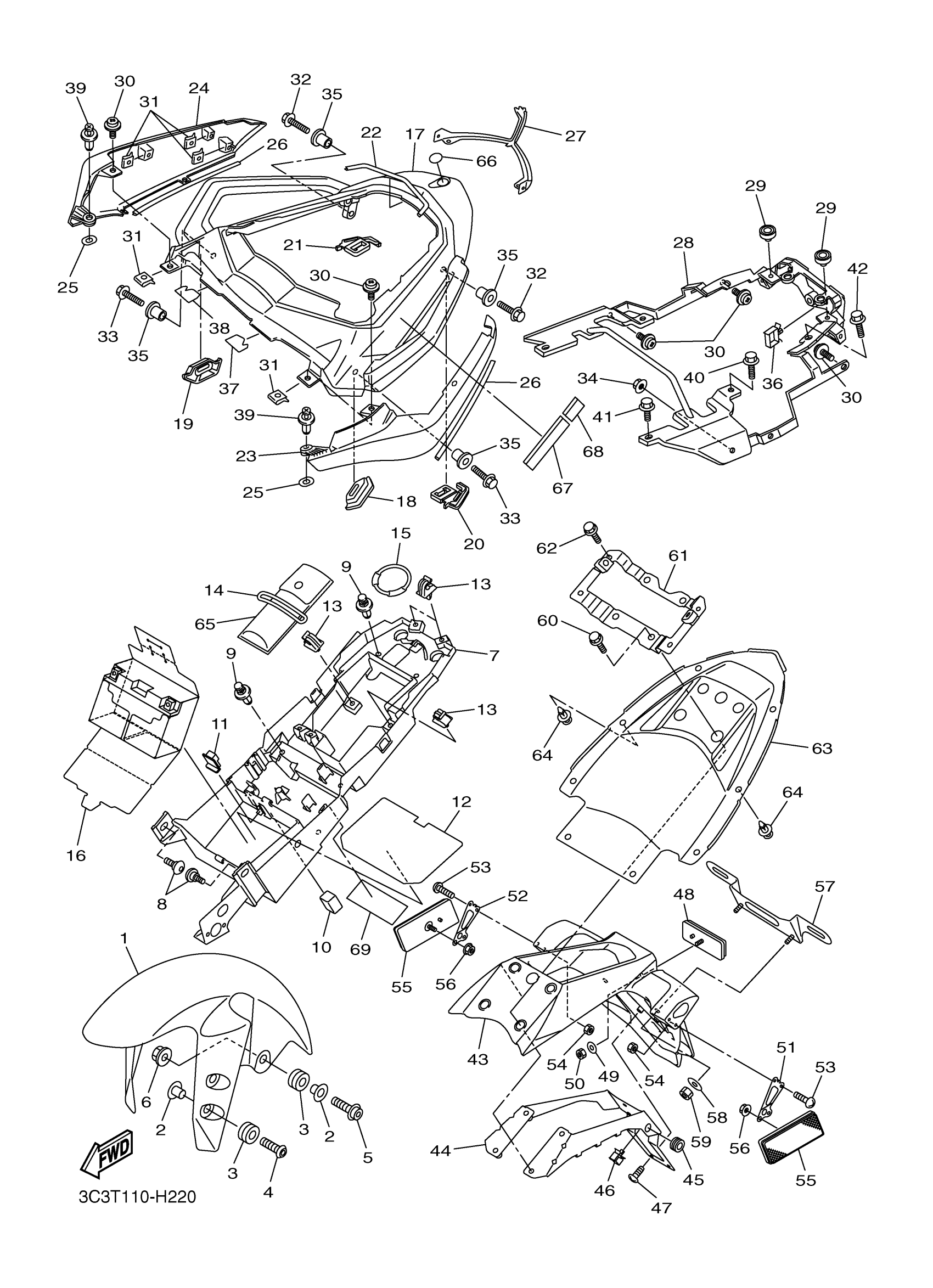

Yamaha FZS10ZR (FZ1) 1CA20 2010 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5PW-21511-02-P6

Unavailable

2

COLLAR

90387-06159-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90109-06031-00

Unavailable

6

NUT, U FLANGE

95604-06200-00

$8.49

7

BOX, BATTERY 1

2D1-8212B-02-00

Unavailable

8

BOLT

90109-06253-00

$5.60

9

RIVET(4PH)

90269-07077-00

$8.49

10

SEAL, 2

2D1-216A2-00-00

Unavailable

11

SEAL, 3

2D1-216A3-00-00

Unavailable

12

DAMPER, LOCATING 2

2D1-24182-00-00

Unavailable

13

CLAMP

90464-07259-00

$3.23

14

BAND, TOOL

4XV-21376-00-00

Unavailable

15

BAND

2D1-21646-00-00

$5.49

16

SEAT, BATTERY

2D1-82122-10-00

Unavailable

17

HANDLE, SEAT

3C3-24773-00-P4

Unavailable

18

DAMPER, SEAT

3C3-24723-00-00

Unavailable

19

DAMPER, SEAT

3C3-24724-00-00

Unavailable

20

DAMPER, SEAT

3C3-24737-00-00

Unavailable

21

DAMPER, SEAT

3C3-24747-00-00

Unavailable

22

DAMPER 1

3C3-21541-00-00

Unavailable

23

COVER, TAIL 1

3C3-2471K-00-P4

Unavailable

24

COVER, TAIL 2

3C3-2472K-00-P4

Unavailable

25

DAMPER

5PW-2174X-00-00

Unavailable

26

PROTECTOR

3C3-2193A-00-00

Unavailable

27

COVER, REAR FENDER 1

3C3-2163A-00-00

Unavailable

28

BRACKET, FENDER

3C3-21617-00-00

Unavailable

29

PAD, SEAT

22W-24741-00-00

Unavailable

30

SCREW, WITH WASHER

90159-05056-00

Unavailable

31

NUT, SPRING

90183-051A0-00

Unavailable

32

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

33

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

34

NUT,FLANGE(J10)

95702-08500-00

Unavailable

35

COLLAR

90387-09012-00

Unavailable

36

CLAMP (1J7)

90464-16021-00

Unavailable

37

PROTECTOR 1

3C3-22825-00-00

Unavailable

38

PROTECTOR 2

3C3-22826-00-00

Unavailable

39

RIVET(4JH)

90269-07076-00

Unavailable

40

BOLT, FLANGE

95822-06025-00

Unavailable

41

BOLT, FLANGE

95817-06014-00

Unavailable

42

BOLT, FLANGE

95817-08012-00

Unavailable

43

GUARD, MUD

2D1-21629-10-00

Unavailable

44

BRACKET, REAR STAY

2D1-21688-02-00

Unavailable

45

GROMMET

90480-13004-00

Unavailable

46

CLAMP (1J7)

90464-16021-00

Unavailable

47

SCREW, TAPPING

97702-50016-00

Unavailable

48

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

49

WASHER, PLATE

90201-05043-00

Unavailable

50

NUT, U

95617-05100-00

Unavailable

51

BRACKET, REAR STAY

5VY-21688-00-00

Unavailable

52

BRACKET, REAR STAY 2

5VY-21689-00-00

Unavailable

53

SCREW, ROUND HEAD(4KM)

90150-04041-00

Unavailable

54

NUT, U (7LY)

95617-04100-00

Unavailable

55

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

56

NUT, FLANGE

95702-05500-00

Unavailable

57

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

58

WASHER, PLATE

90201-06088-00

Unavailable

59

NUT, SELF-LOCKING

95617-06100-00

Unavailable

60

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

61

BRACKET, REAR FENDER

3C3-21261-00-00

Unavailable

62

BOLT, FLANGE

95817-06020-00

Unavailable

63

FENDER, REAR

3C3-21611-00-00

Unavailable

64

RIVET(4PH)

90269-07077-00

$8.49

65

TOOL KIT

2D1-28100-00-00

Unavailable

66

TUNING FORK MARK

4KN-2836B-00-00

Unavailable

67

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

68

LABEL, CAUTION

3TB-24877-A1-00

Unavailable

69

PLATE, EPA (NON CALIFORNIA)

1CA-2179W-00-00

Unavailable
