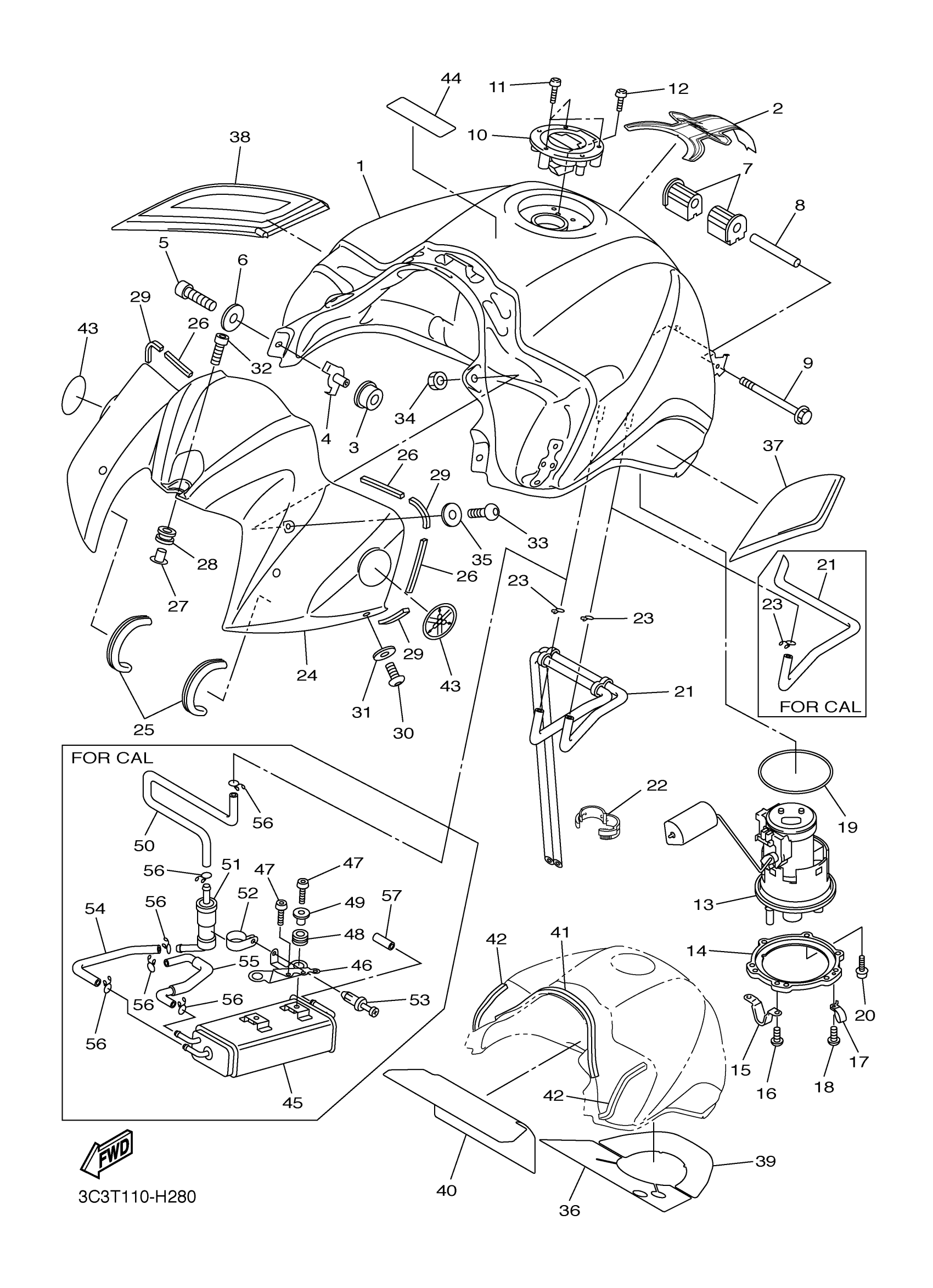

Yamaha FZS10YL (FZ1) 3C3T0 2009 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DARK GRAY METALLIC G)
2D1-Y2410-00-07
Unavailable
2
GRAPHIC, FUEL TANK 1
3C3-24244-10-00
Unavailable
8
COLLAR(JF3)
90387-061W6-00
Unavailable
15
BRACKET, FUEL TANK 2
2D1-24192-00-00
Unavailable
16
SCREW, BIND
98902-05008-00
Unavailable
17
CLAMP
90461-10010-00
Unavailable
18
SCREW, BIND
98902-05008-00
Unavailable
19
O-RING
19B-24486-01-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
21
PIPE 7
2D1-24317-10-00
Unavailable
21
PIPE 7
3C3-24317-00-00
Unavailable
22
CLAMP
90464-16001-00
Unavailable
23
CLIP
90467-090A2-00
Unavailable
23
CLIP
90467-090A2-00
Unavailable
24
COVER, TOP
3C3-2171A-00-P3
Unavailable
25
MOLE 1
2D1-28345-01-00
Unavailable
26
DAMPER
4XV-2834E-00-00
Unavailable
27
COLLAR
90387-06222-00
Unavailable
28
GROMMET(3AA)
90480-12497-00
Unavailable
29
DAMPER, LOCATING 1
2D1-24181-00-00
Unavailable
30
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
31
WASHER, PLATE(MG5)
90202-05224-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-05024-00
Unavailable
34
NUT
90179-05003-00
Unavailable
35
. WASHER, PLATE
90202-05088-00
Unavailable
36
DAMPER, PLATE 4
2D1-2414N-00-00
Unavailable
37
TANK SIDE COVER ASSY 1
2D1-24106-01-00
Unavailable
38
TANK SIDE COVER ASSY 2
2D1-24108-01-00
Unavailable
39
DAMPER, PLATE 3
2D1-2414K-00-00
Unavailable
40
DAMPER, PLATE 1
2D1-2414H-00-00
Unavailable
41
DAMPER, PLATE 5
2D1-2414P-00-00
Unavailable
42
DAMPER, PLATE 6
2D1-2414R-00-00
Unavailable
43
EMBLEM
5SL-2413B-00-00
Unavailable
44
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
45
CANISTER ASSY
3C3-24170-00-00
Unavailable
46
STAY
3C3-24216-00-00
Unavailable
47
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
48
GROMMET (462)
90480-13018-00
Unavailable
49
COLLAR(42G)
90387-062L2-00
Unavailable
50
PIPE 3
3C3-24313-00-00
Unavailable
51
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
52
CLAMP
90464-15014-00
Unavailable
53
RIVET
90269-05001-00
Unavailable
54
PIPE 4
3C3-24314-00-00
Unavailable
55
PIPE
3C3-1443J-01-00
Unavailable
56
CLIP
90467-090A2-00
Unavailable
57
HOSE (L70)
90445-112E0-00
Unavailable
