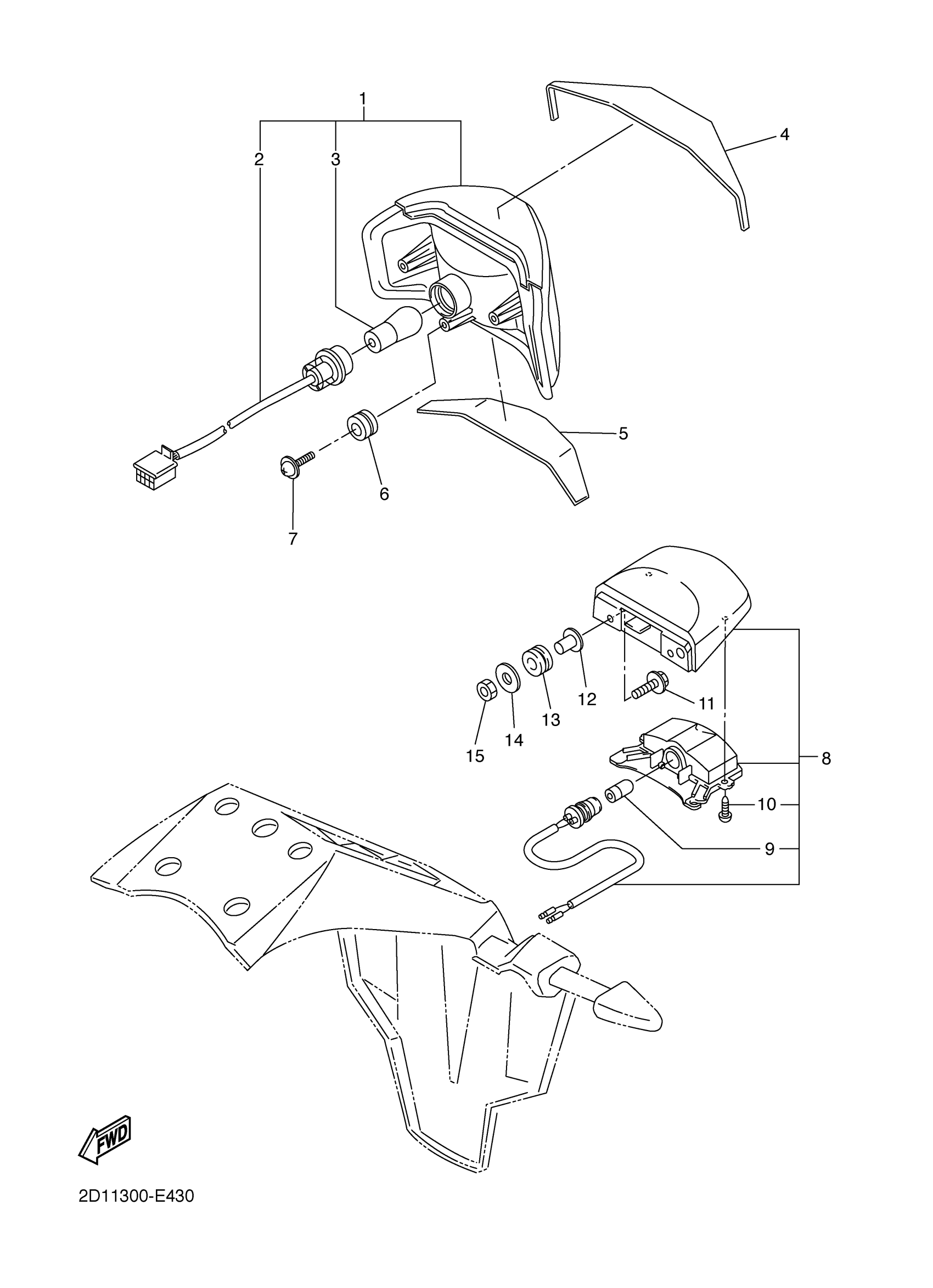

Yamaha FZS10XR (FZ1) 3C3L0 2008 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

2D1-84710-00-00

Unavailable

2

CORD ASSY

2D1-84735-00-00

Unavailable

3

BULB

1A2-84714-50-00

$11.36

4

DAMPER, TAIL 1

3C3-84736-00-00

$6.53

5

DAMPER, TAIL 2

2D1-84737-00-00

$4.92

6

GROMMET (4L0)

90480-18276-00

$6.22

7

SCREW, TAPPING

90164-05001-00

$5.86

8

LICENCE LIGHT UNIT ASSY

2D1-84745-00-00

Unavailable

9

BULB

4SV-84347-00-00

$5.99

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

SCREW, WITH WASHER

90159-05035-00

$5.80

12

COLLAR

90387-05042-00

$4.46

13

GROMMET

90480-11009-00

$0.77

14

. WASHER, PLAIN

92990-05200-00

$4.29

15

NUT, U

95617-05100-00

$6.22
