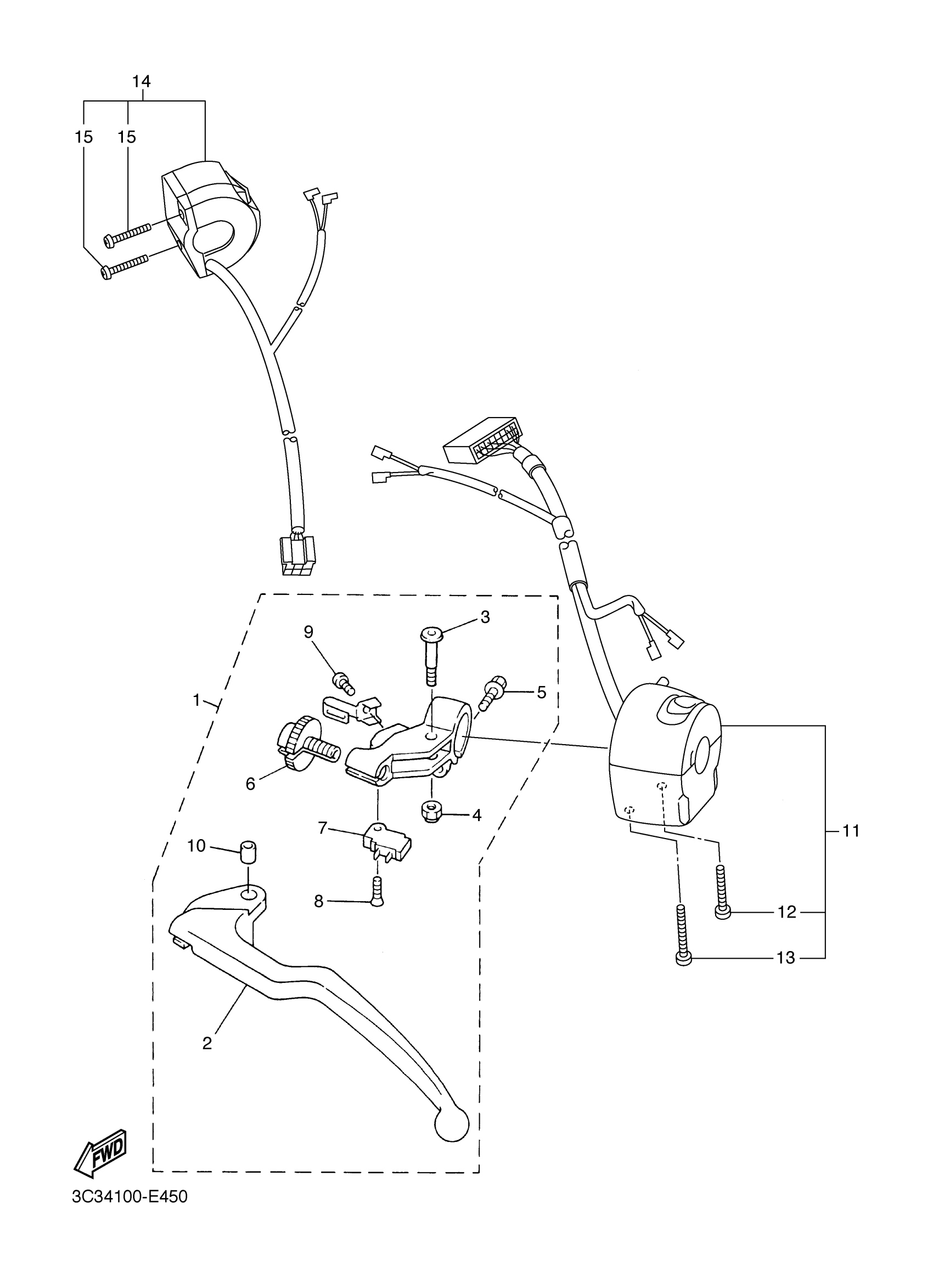

Yamaha FZS10XR (FZ1) 3C3L0 2008 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

4XV-82910-15-00

$211.09

2

LEVER 1

4XV-83912-11-00

$57.70

3

BOLT, LEVER

2C0-83945-00-00

$8.42

4

NUT,SELF-LOCKING

95607-06200-00

$10.09

5

. BOLT, FLANGE

95027-06020-00

$0.93

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$47.04

7

SWITCH

4XV-82917-01-00

$67.31

8

SCREW, FLAT

98707-03016-00

$6.22

9

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.06

10

COLLAR, LEVER 1

5JJ-83913-00-00

$7.01

11

SWITCH, HANDLE 4

3C3-83972-01-00

Unavailable

12

SCREW, PAN HEAD

98517-05030-00

$7.40

13

SCREW, PAN

98507-05045-00

$6.65

14

SWITCH, HANDLE 2

2D1-83975-00-00

Unavailable

15

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable
