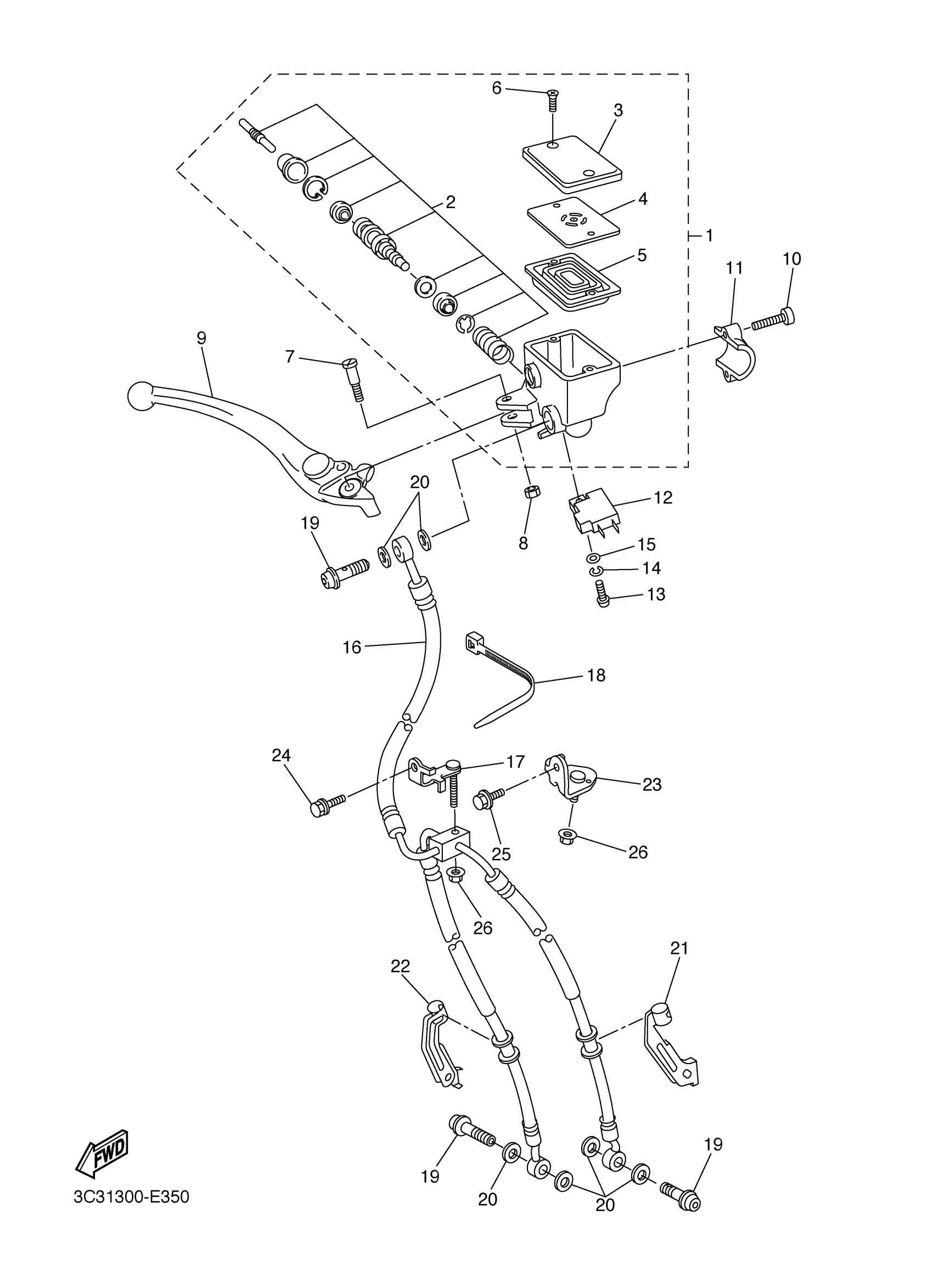

Yamaha FZS10XR (FZ1) 3C3L0 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3C3-W2587-00-00

Unavailable

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HOSE, BRAKE 1

3C3-25872-00-00

Unavailable

17

HOLDER

2D1-23857-00-00

Unavailable

18

BAND

3MA-82591-00-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

GASKET

90430-10005-00

Unavailable

21

HOLDER, BRAKE HOSE 1

2D1-25875-00-00

Unavailable

22

HOLDER, BRAKE HOSE 2

2D1-25876-00-00

Unavailable

23

BRACKET, HORN

3C3-23378-00-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
