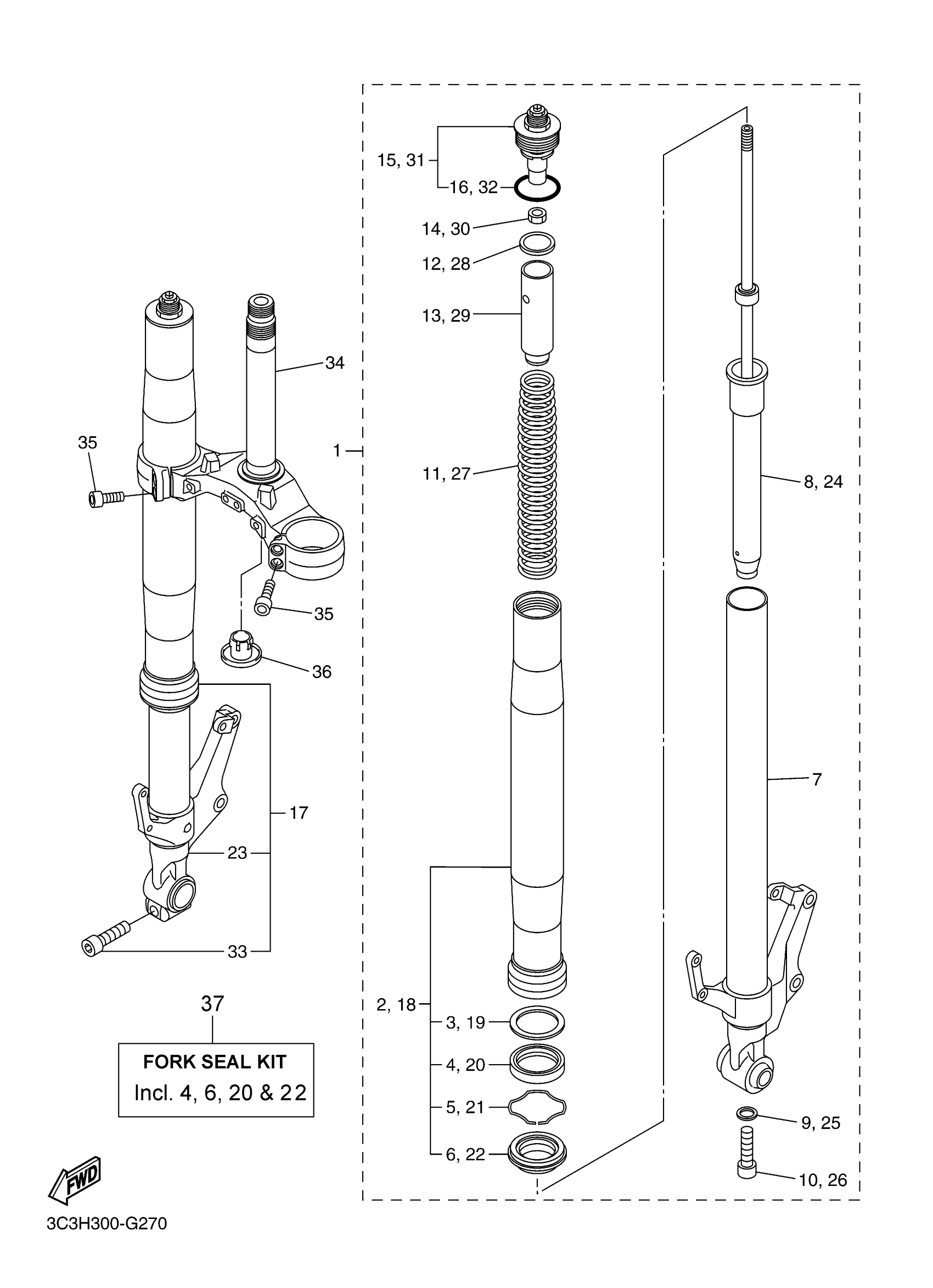

Yamaha FZS10XR (FZ1) 3C3L0 2008 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2D1-23102-13-00

Unavailable

2

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

3

WASHER

4V4-23146-L0-00

$5.55

4

OIL SEAL

4PU-23145-01-00

$19.58

5

RING, SNAP

4V4-23153-L0-00

$8.08

6

SEAL, DUST

4PU-23144-00-00

$18.82

7

INNER TUBE COMP.1

2D1-23110-00-00

Unavailable

8

.. CYLINDER COMP, FRONT FORK

2D1-23170-11-00

Unavailable

9

GASKET

509-23158-L0-00

$13.39

10

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

11

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

12

WASHER

5VY-12277-00-00

$10.20

13

SPACER

5VY-23118-00-00

Unavailable

14

NUT

3LC-23357-00-00

$6.33

15

BOLT, CAP

2D1-23111-10-00

Unavailable

16

O-RING

3XJ-23147-L0-00

Unavailable

17

FRONT FORK ASSY (R.H)

2D1-23103-13-00

Unavailable

18

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

19

WASHER

4V4-23146-L0-00

$5.55

20

OIL SEAL

4PU-23145-01-00

$19.58

21

RING, SNAP

4V4-23153-L0-00

$8.08

22

SEAL, DUST

4PU-23144-00-00

$18.82

23

INNER TUBE COMP.2

2D1-23120-00-00

Unavailable

24

CYLINDER COMP., FRONT FORK

2D1-23170-01-00

Unavailable

25

GASKET

509-23158-L0-00

$13.39

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

27

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

28

WASHER

5VY-12277-00-00

$10.20

29

SPACER

5VY-23118-00-00

Unavailable

30

NUT

3LC-23357-00-00

$6.33

31

BOLT, CAP

2D1-23111-10-00

Unavailable

32

O-RING

3XJ-23147-L0-00

Unavailable

33

BOLT,SOCKET

91314-08040-00

Unavailable

34

UNDER BRACKET COMP.

2D1-23340-10-00

Unavailable

35

BOLT,SOCKET

91314-08030-00

Unavailable

36

COVER, LOWER 1

4KM-23123-01-00

Unavailable

37

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
