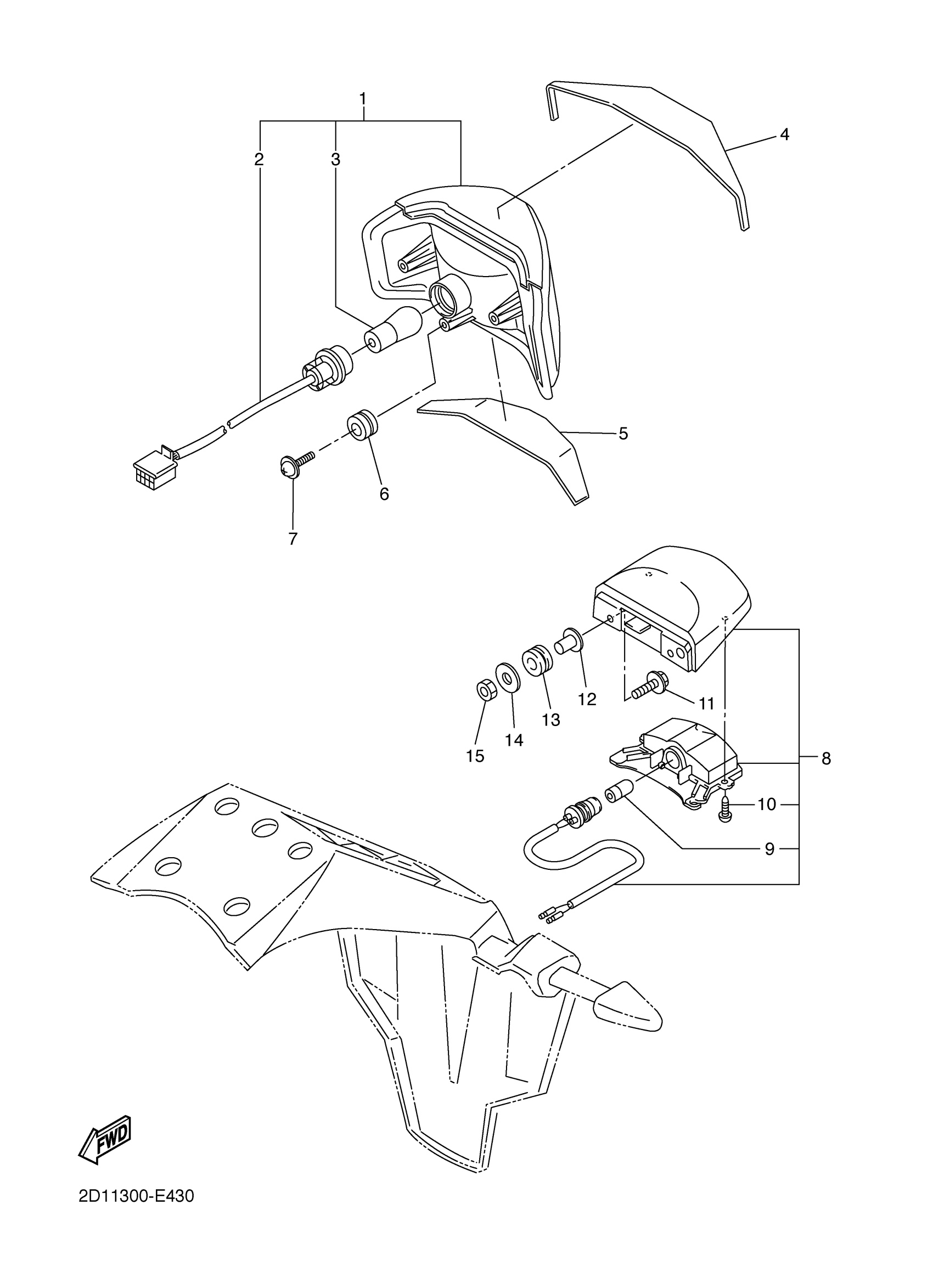

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

2D1-84710-00-00

Unavailable

2

CORD ASSY

2D1-84735-00-00

Unavailable

3

BULB

1A2-84714-50-00

$14.49

4

DAMPER, TAIL 1

3C3-84736-00-00

$7.99

5

DAMPER, TAIL 2

2D1-84737-00-00

$5.49

6

GROMMET (4L0)

90480-18276-00

$8.49

7

SCREW, TAPPING

90164-05001-00

$8.49

8

LICENCE LIGHT UNIT ASSY

2D1-84745-00-00

Unavailable

9

BULB

4SV-84347-00-00

$8.99

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

12

COLLAR

90387-05031-00

Unavailable

13

GROMMET

90480-11009-00

$1.01

14

WASHER, PLAIN LARGE

92907-05200-00

$4.46

15

NUT, U

95617-05100-00

$9.49
