Description

Price

1

GEAR, DRIVEN

2D1-11537-10-00

$253.99

2

ABSORBER 1

5VY-16155-00-00

$30.99

3

WASHER, PLATE

90201-20008-00

$8.49

4

COLLAR

5VY-11478-00-00

Unavailable

5

STARTER CLUTCH ASSY

5VY-15570-00-00

$159.99

6

PLATE, STARTER CLUTCH ASSY

5VY-15586-00-00

Unavailable

7

GEAR 3

5VY-15515-00-00

$230.99

8

SPACER

5VY-11445-00-00

Unavailable

9

WASHER, PLATE

90201-20017-00

Unavailable

10

O-RING (1L9)

93210-18322-00

$5.60

11

BEARING

93306-20230-00

$55.99

12

GEAR, IDLER 2

5VY-15517-00-00

Unavailable

13

SHAFT 1

5VY-15521-00-00

$9.99

14

WASHER, PLATE

90201-06104-00

$5.60

15

BOLT

91312-06045-00

$4.08

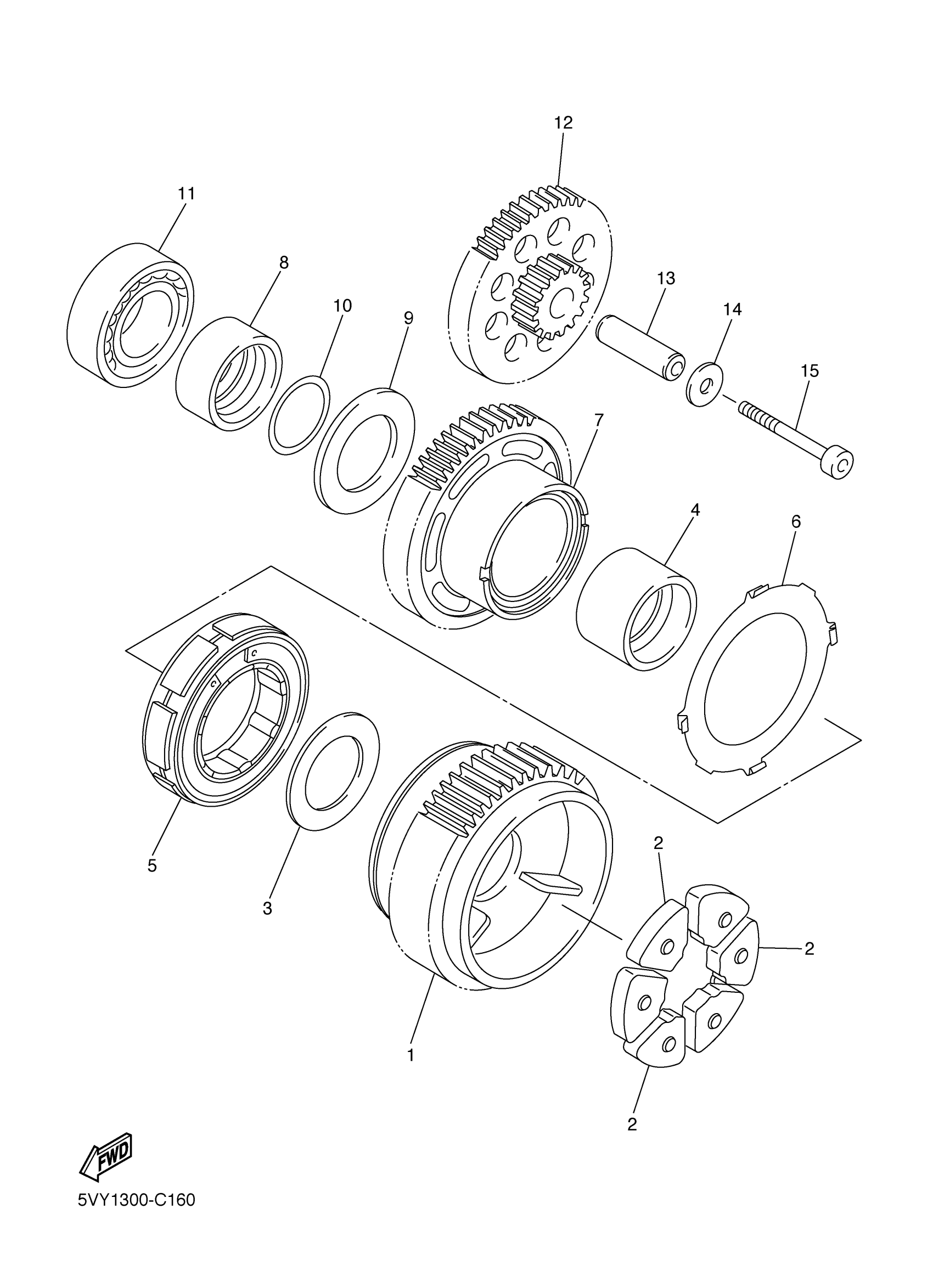

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 STARTER Diagram

GEAR, DRIVEN

ABSORBER 1

WASHER, PLATE

COLLAR

STARTER CLUTCH ASSY

PLATE, STARTER CLUTCH ASSY

GEAR 3

SPACER

WASHER, PLATE

O-RING (1L9)

BEARING

GEAR, IDLER 2

SHAFT 1

WASHER, PLATE

BOLT
