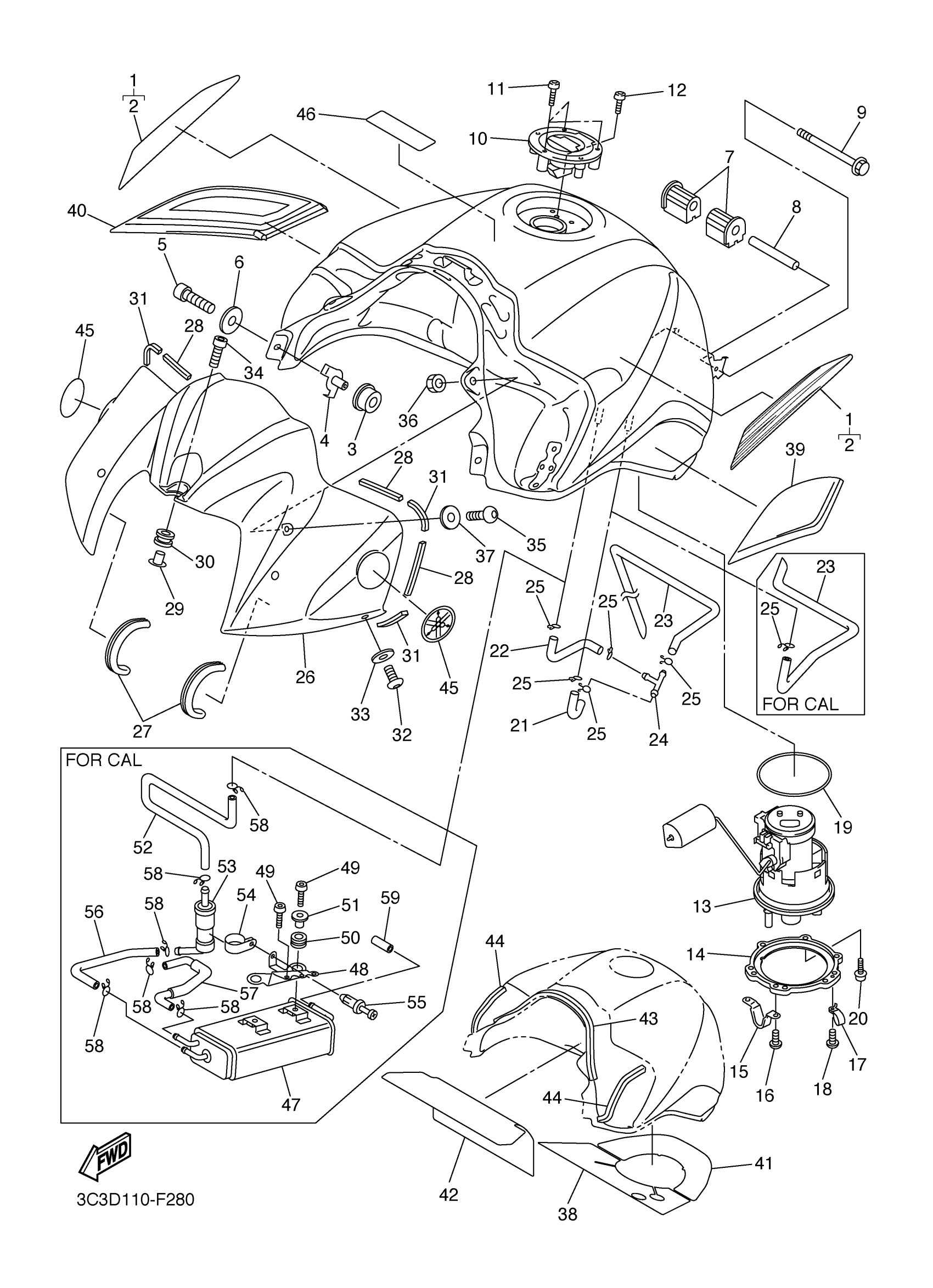

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (BLACK METALLIC X)

2D1-Y2410-00-02

Unavailable

1

FUEL TANK COMP.

2D1-WK241-01-P3

$801.99

2

. GRAPHIC SET (BLACK METALLIC X)

3C3-24240-00-00

Unavailable

3

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

4

COLLAR

2D1-2412G-00-00

$25.99

5

BOLT,SOCKET

91317-06016-00

$1.25

6

WASHER, PLATE

90201-06086-00

$7.49

7

DAMPER, LOCATING 1

5VX-24181-00-00

$14.49

8

COLLAR(JF3)

90387-061W6-00

Unavailable

9

BOLT, SOCKET

91317-06090-00

$4.24

10

CAP ASSY

39P-24602-00-00

$257.99

11

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

12

BOLT, SOCKET

91317-05010-00

$2.55

13

FUEL PUMP COMP

2D1-13907-04-00

$559.99

14

BRACKET, FUEL PUMP

1EC-24491-00-00

$42.99

15

BRACKET, FUEL TANK 2

2D1-24192-00-00

Unavailable

16

SCREW, BINDING

98907-05008-00

Unavailable

17

CLAMP

90461-10010-00

Unavailable

18

SCREW, BINDING

98907-05008-00

Unavailable

19

O-RING

19B-24486-01-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-05014-00

Unavailable

21

PIPE 5

2D1-24315-00-00

Unavailable

22

PIPE 6

2D1-24316-00-00

Unavailable

23

PIPE 7

2D1-24317-00-00

Unavailable

23

PIPE 7

3C3-24317-00-00

Unavailable

24

WAY 3 (10L)

90413-07007-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

COVER, TOP

3C3-2171A-00-P0

Unavailable

26

COVER, TOP

3C3-2171A-00-P3

Unavailable

27

MOLE 1

2D1-28345-01-00

Unavailable

28

DAMPER

4XV-2834E-00-00

Unavailable

29

COLLAR

90387-062Y6-00

Unavailable

30

GROMMET(3AA)

90480-12497-00

Unavailable

31

DAMPER, LOCATING 1

2D1-24181-00-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-05019-00

Unavailable

33

WASHER, PLATE(MG5)

90202-05224-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

35

BOLT,HEX. SOCKET BUTTON

90111-05024-00

Unavailable

36

NUT

90179-05003-00

Unavailable

37

. WASHER, PLATE

90202-05088-00

Unavailable

38

DAMPER, PLATE 4

2D1-2414N-00-00

Unavailable

39

TANK SIDE COVER ASSY 1

2D1-24106-01-00

Unavailable

40

TANK SIDE COVER ASSY 2

2D1-24108-01-00

Unavailable

41

DAMPER, PLATE 3

2D1-2414K-00-00

Unavailable

42

DAMPER, PLATE 1

2D1-2414H-00-00

Unavailable

43

DAMPER, PLATE 5

2D1-2414P-00-00

Unavailable

44

DAMPER, PLATE 6

2D1-2414R-00-00

Unavailable

45

EMBLEM

5SL-2413B-00-00

Unavailable

46

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

47

CANISTER ASSY

3C3-24170-00-00

Unavailable

48

STAY

3C3-24216-00-00

Unavailable

49

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

50

GROMMET (462)

90480-13018-00

Unavailable

51

COLLAR(42G)

90387-062L2-00

Unavailable

52

PIPE 3

3C3-24313-00-00

Unavailable

53

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

54

CLAMP

90464-15014-00

Unavailable

55

RIVET

90269-05001-00

Unavailable

56

PIPE 4

3C3-24314-00-00

Unavailable

57

PIPE

3C3-1443J-00-00

Unavailable

58

CLIP

90467-090A2-00

Unavailable

59

HOSE (L70)

90445-112E0-00

Unavailable
