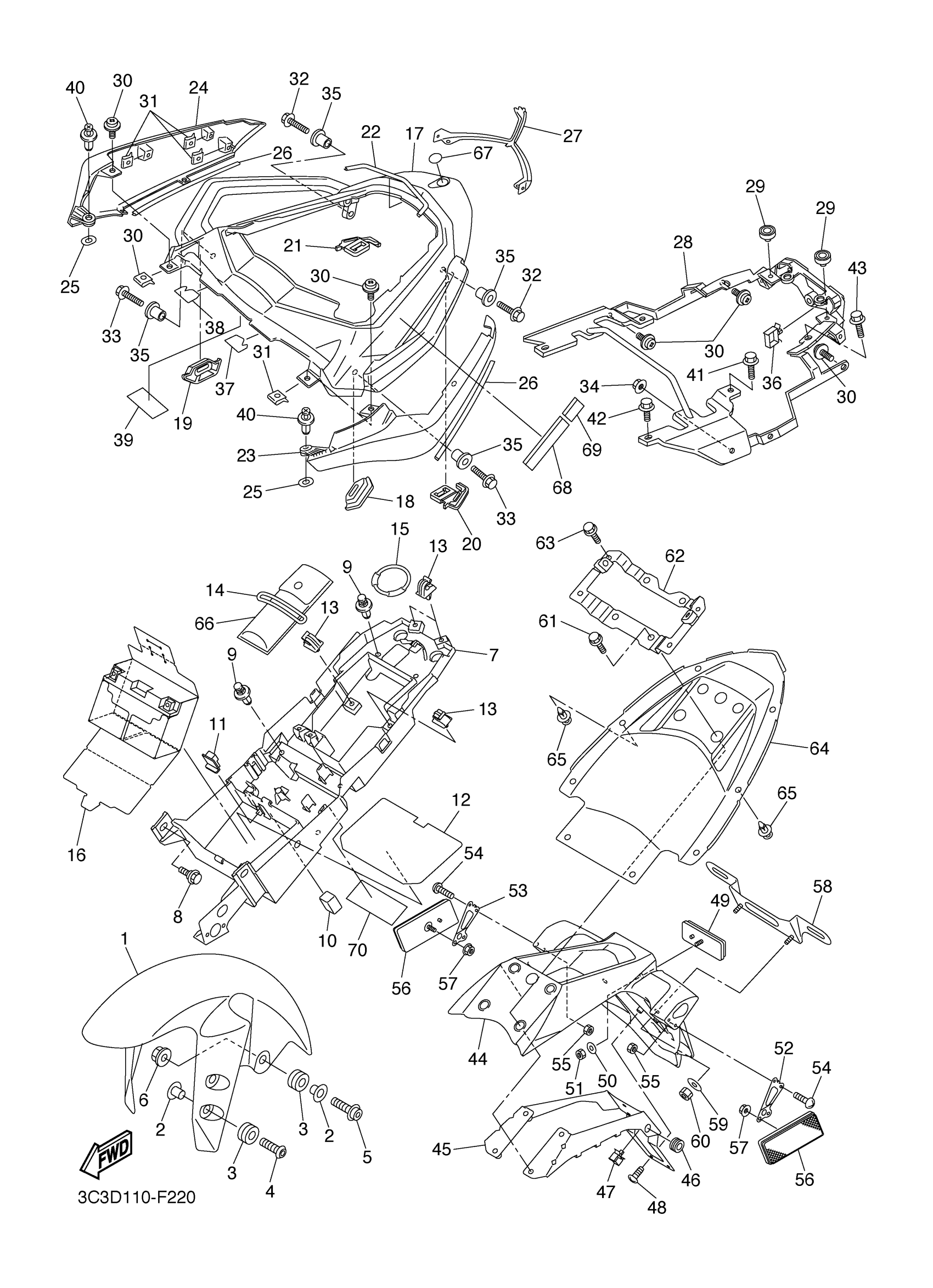

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 FENDER Diagram
#
1
FENDER, FRONT
5PW-21511-02-P6
Unavailable
5
BOLT
90109-06031-00
Unavailable
7
BOX, BATTERY 1
2D1-8212B-02-00
Unavailable
10
SEAL, 2
2D1-216A2-00-00
Unavailable
11
SEAL, 3
2D1-216A3-00-00
Unavailable
12
DAMPER, LOCATING 2
2D1-24182-00-00
Unavailable
14
BAND, TOOL
4XV-21376-00-00
Unavailable
15
BAND
2D1-21646-00-00
Unavailable
16
SEAT, BATTERY
2D1-82122-10-00
Unavailable
17
HANDLE, SEAT
3C3-24773-00-P0
Unavailable
17
HANDLE, SEAT
3C3-24773-00-P4
Unavailable
18
DAMPER, SEAT
3C3-24723-00-00
Unavailable
19
DAMPER, SEAT
3C3-24724-00-00
Unavailable
20
DAMPER, SEAT
3C3-24737-00-00
Unavailable
21
DAMPER, SEAT
3C3-24747-00-00
Unavailable
22
DAMPER 1
3C3-21541-00-00
Unavailable
23
COVER, TAIL 1 (DARK PURPLISH BLUE METALLIC U)
3C3-2471K-00-P0
Unavailable
23
COVER, TAIL 1
3C3-2471K-00-P4
Unavailable
24
COVER, TAIL 2 (DARK PURPLISH BLUE METALLIC U)
3C3-2472K-00-P0
Unavailable
24
COVER, TAIL 2
3C3-2472K-00-P4
Unavailable
25
DAMPER
5PW-2174X-00-00
Unavailable
26
PROTECTOR
3C3-2193A-00-00
Unavailable
27
COVER, REAR FENDER 1
3C3-2163A-00-00
Unavailable
28
BRACKET, FENDER
3C3-21617-00-00
Unavailable
29
PAD, SEAT
22W-24741-00-00
Unavailable
30
SCREW, WITH WASHER
90159-05056-00
Unavailable
31
NUT, SPRING
90183-051A0-00
Unavailable
32
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
33
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
34
NUT,FLANGE(J10)
95702-08500-00
Unavailable
35
COLLAR
90387-09012-00
Unavailable
36
CLAMP (1J7)
90464-16021-00
Unavailable
37
PROTECTOR 1
3C3-22825-00-00
Unavailable
38
PROTECTOR 2
3C3-22826-00-00
Unavailable
39
DAMPER 2
2D1-21639-00-00
Unavailable
40
RIVET(4JH)
90269-07076-00
Unavailable
41
BOLT, FLANGE
95817-06025-00
Unavailable
42
BOLT, FLANGE
95817-06014-00
Unavailable
43
BOLT, FLANGE
95817-08012-00
Unavailable
44
GUARD, MUD
2D1-21629-10-00
Unavailable
45
BRACKET, REAR STAY
2D1-21688-02-00
Unavailable
46
GROMMET
90480-13004-00
Unavailable
47
CLAMP (1J7)
90464-16021-00
Unavailable
48
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
49
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
50
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
51
NUT, U
95617-05100-00
Unavailable
52
BRACKET, REAR STAY
5VY-21688-00-00
Unavailable
53
BRACKET, REAR STAY 2
5VY-21689-00-00
Unavailable
54
SCREW, ROUND HEAD(4KM)
90150-04041-00
Unavailable
55
NUT, U (7LY)
95617-04100-00
Unavailable
56
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
57
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
58
BRACKET, LICENSE
5MT-84751-00-00
Unavailable
59
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
60
NUT, SELF-LOCKING
95617-06100-00
Unavailable
61
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
62
BRACKET, REAR FENDER
3C3-21261-00-00
Unavailable
63
BOLT, FLANGE
95817-06020-00
Unavailable
64
FENDER, REAR
3C3-21611-00-00
Unavailable
66
TOOL KIT
2D1-28100-00-00
Unavailable
67
TUNING FORK MARK
4KN-2836B-00-00
Unavailable
68
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
69
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
70
PLATE, EPA 2 (CALIFORNIA)
3C3-2179R-10-00
Unavailable
70
PLATE, EPA (NON CALIFORNIA)
3C3-2179W-10-00
Unavailable
