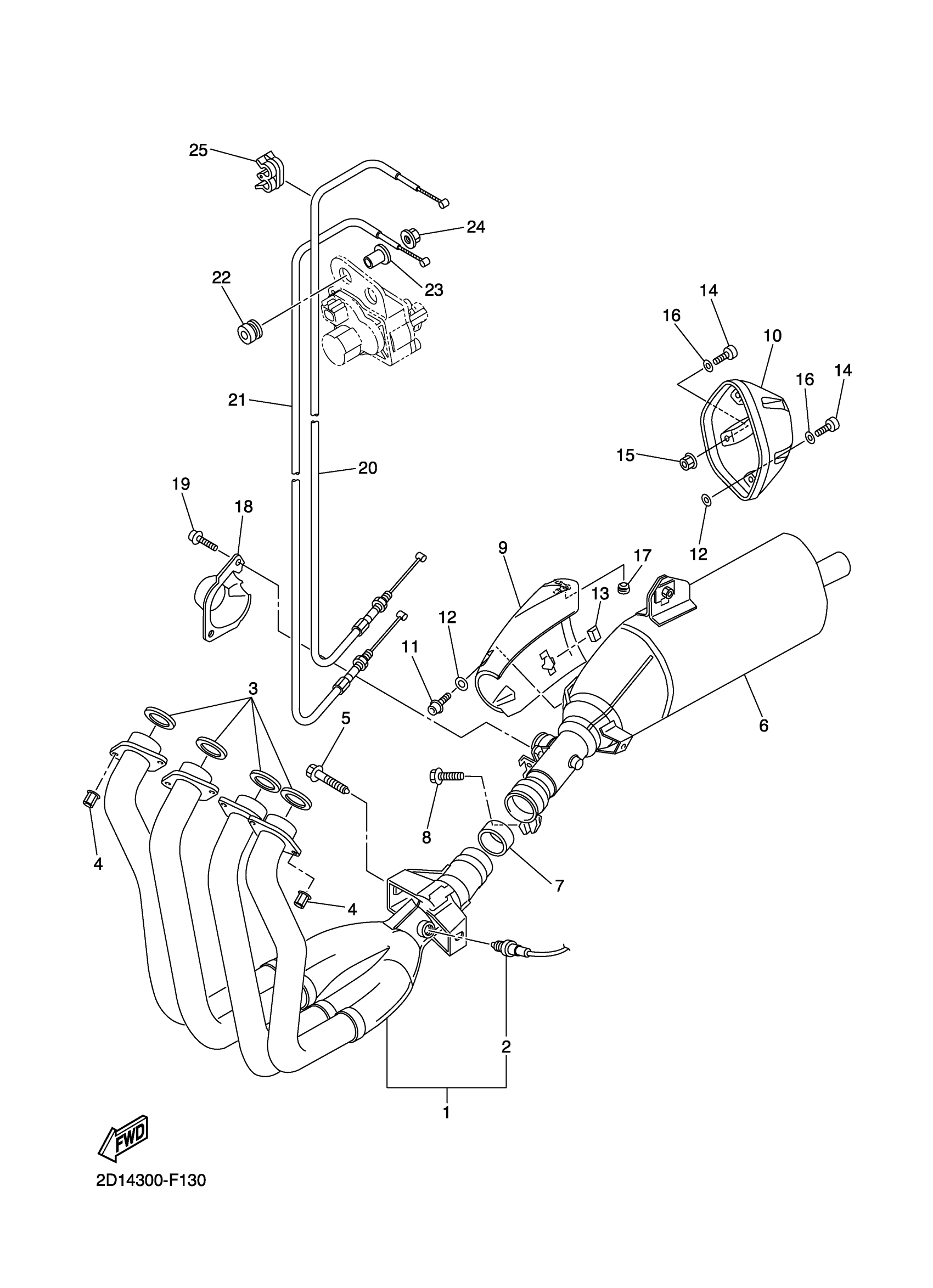

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE COMP.
2D1-14602-10-00
Unavailable
2
SENSOR
2D1-8592A-00-00
Unavailable
6
MUFFLER COMP. 1
2D1-14703-00-00
Unavailable
9
PROTECTOR, MUFFLER 1
2D1-14718-10-00
Unavailable
12
WASHER, PLATE
90201-05017-00
Unavailable
16
WASHER, PLAIN (646)
92990-06600-00
Unavailable
17
DAMPER, MUFFLER
2D1-14737-01-00
Unavailable
18
PROTECTOR, EXHAUST
2D1-14826-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-06110-00
Unavailable
20
CABLE, PULLEY 1
2D1-1133E-01-00
Unavailable
21
CABLE, PULLEY 2
2D1-1133F-11-00
Unavailable
22
GROMMET(4TX)
90480-14604-00
Unavailable
23
COLLAR
90387-06M60-00
Unavailable
25
CLAMP
90464-04001-00
Unavailable
