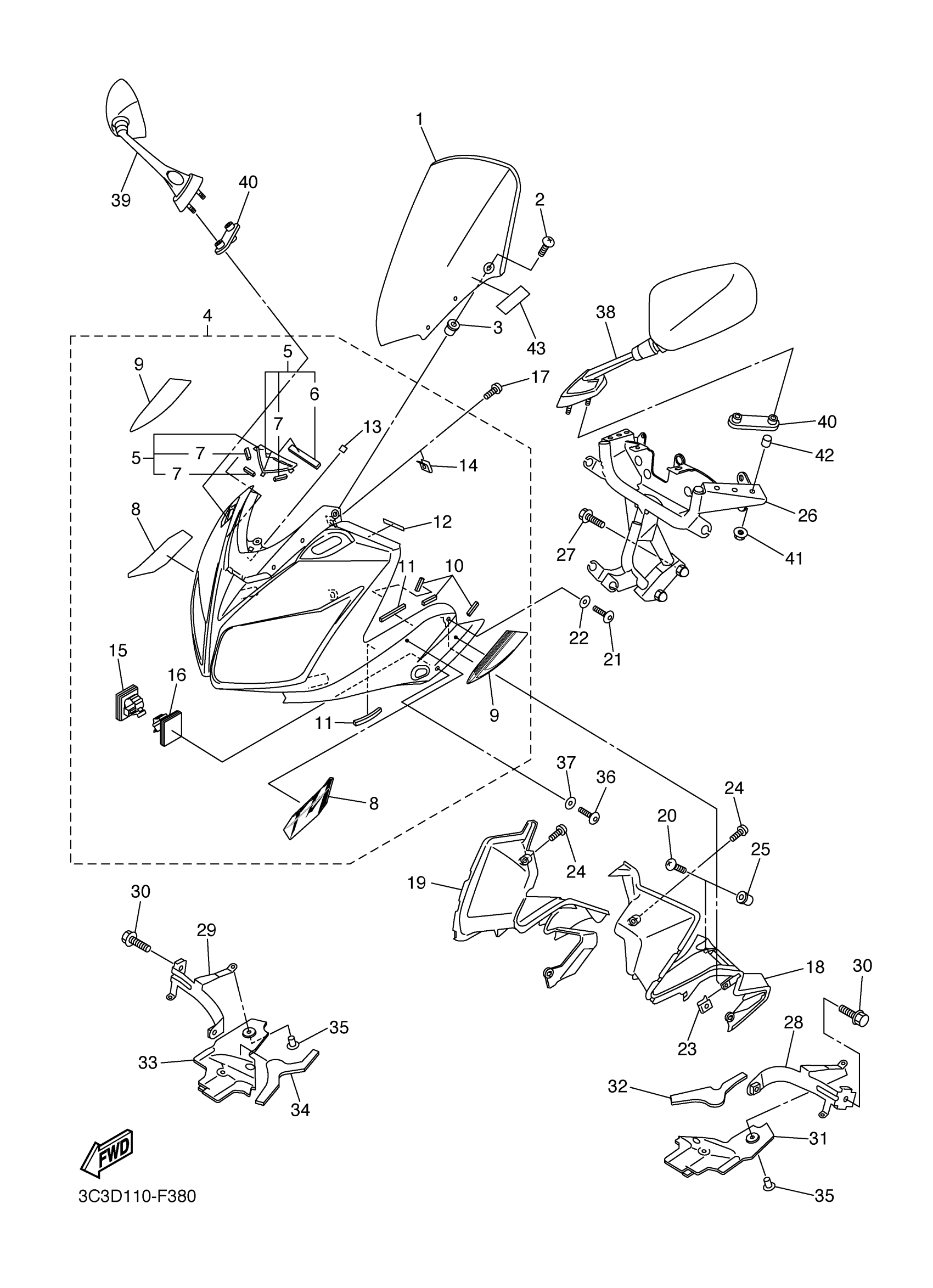

Yamaha FZS10WC (FZ1 CA) 3C3E 2007 COWLING 1 Diagram
#
1
WINDSHIELD
3C3-28381-10-00
Unavailable
4
BODY, FRONT UPPER 1 (BLACK METALLIC X)
3C3-Y283G-E0-P4
Unavailable
5
COVER ASSY
3C3-Y283W-10-00
Unavailable
8
. EMBLEM 1 (DARK PURPLISH BLUE METALLIC U)
2D1-2163G-40-00
Unavailable
8
EMBLEM 1
2D1-2163G-50-00
Unavailable
9
. GRAPHIC SET (BLACK METALLIC X)
3C3-283B2-00-00
Unavailable
14
NUT, SPRING
90183-050A6-00
Unavailable
15
CLAMP(1NL)
90464-62085-00
Unavailable
16
CLAMP
90464-20021-00
Unavailable
17
SCREW, BINDING
90154-05007-00
Unavailable
18
PANEL, INNER 1
3C3-2836K-00-00
Unavailable
19
PANEL, INNER 2
3C3-2836L-00-00
Unavailable
20
SCREW, BINDING
90154-05007-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
22
WASHER, PLATE
90202-06170-00
Unavailable
23
NUT, SPRING(4ES)
90183-06069-00
Unavailable
24
SCREW, BINDING
90154-05007-00
Unavailable
26
STAY 1
3C3-28356-00-00
Unavailable
27
BOLT, FLANGE
95817-08035-00
Unavailable
28
BRACKET 1
3C3-2836A-00-00
Unavailable
29
BRACKET 2
3C3-2836E-00-00
Unavailable
30
BOLT, FLANGE
95817-06010-00
Unavailable
31
PANEL 1
3C3-2835U-00-00
Unavailable
32
DAMPER 1
3C3-2834E-00-00
Unavailable
33
PANEL 2
3C3-2835V-00-00
Unavailable
34
DAMPER
3C3-2834F-00-00
Unavailable
35
RIVET
90269-06008-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
37
WASHER, PLATE
90202-06170-00
Unavailable
38
REAR VIEW MIRROR ASSY (LEFT)
3C3-26280-01-00
Unavailable
39
REAR VIEW MIRROR ASSY (RIGHT)
3C3-26290-01-00
Unavailable
40
PLATE, MIRROR FITTING 1
3C3-26298-00-00
Unavailable
41
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
42
COLLAR(J45)
90387-064T3-00
Unavailable
43
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
