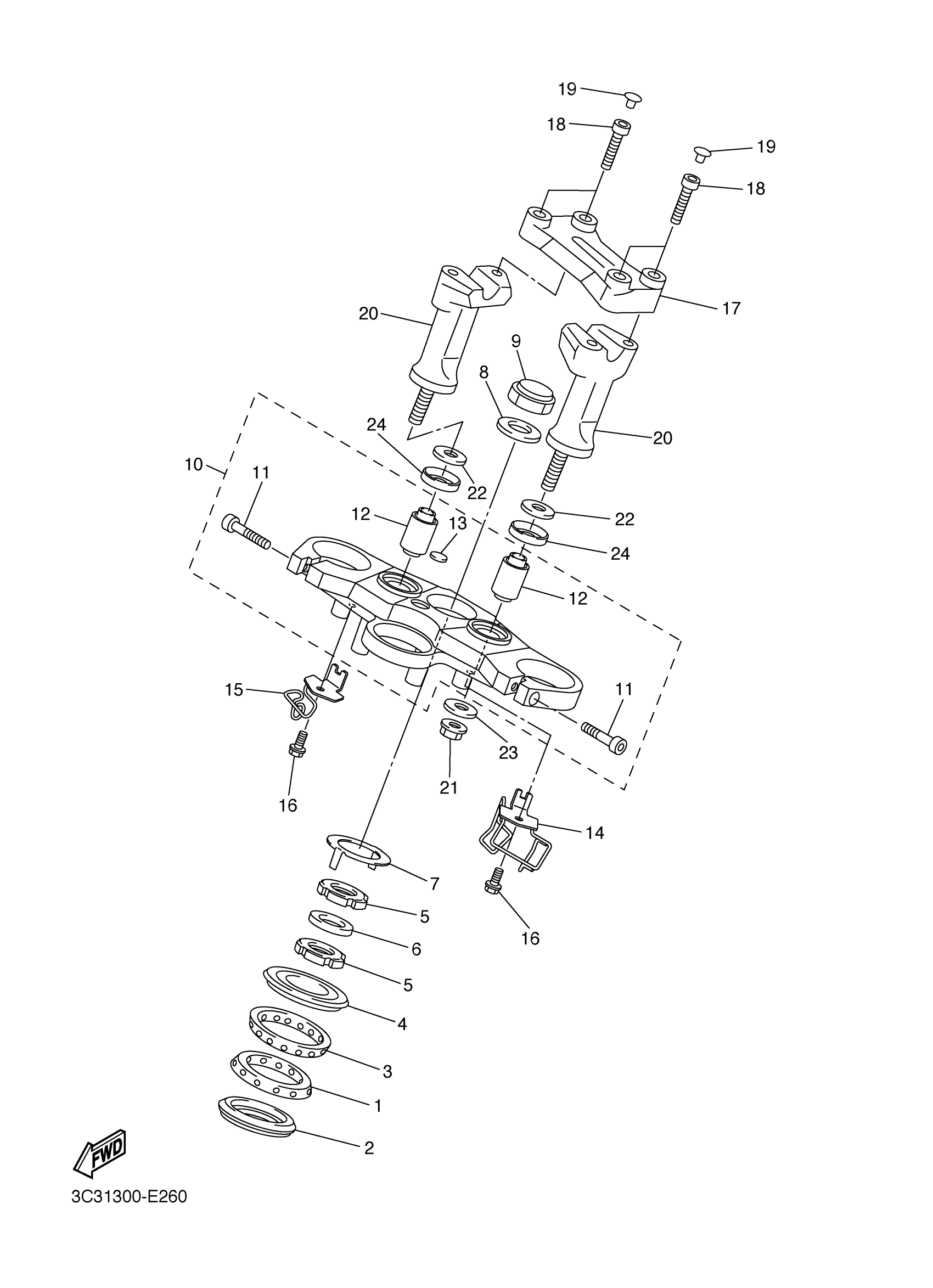

Yamaha FZS10VC (FZ-1 CA) 3C35 2006 STEERING Diagram

#

Description
Price

1

BEARING

93399-99957-00

$70.99

2

SEAL, STEERING

3FV-23462-00-00

$24.99

3

BEARING(3FV)

93399-99932-00

$63.99

4

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

5

NUT

90179-30691-00

$33.99

6

WASHER, PLATE

90202-30235-00

$8.49

7

WASHER, SPECIAL

4XV-23418-00-00

$17.49

8

WASHER, PLATE

90201-281U8-00

$11.49

9

NUT, CROWN

90176-28083-00

$38.99

10

CROWN, HANDLE ASSY

2D1-23405-11-00

Unavailable

11

BOLT,SOCKET

91314-08030-00

$2.34

12

HOLDER, DAMPER

5A8-23434-01-00

Unavailable

13

EMBLEM

4XV-2341B-00-00

$28.99

14

HOLDER, CABLE 1

3C3-23318-00-00

Unavailable

15

HOLDER, CABLE 2

3C3-23319-00-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

17

HOLDER, HANDLE UPPER

2D1-23441-00-00

Unavailable

18

BOLT, SOCKET

91317-08030-00

Unavailable

19

PLUG(42X)

90338-08163-00

Unavailable

20

HOLDER, HANDLE LOWER

2D1-23442-00-00

Unavailable

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

22

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

23

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

24

DAMPER

5YU-23445-00-00

Unavailable
