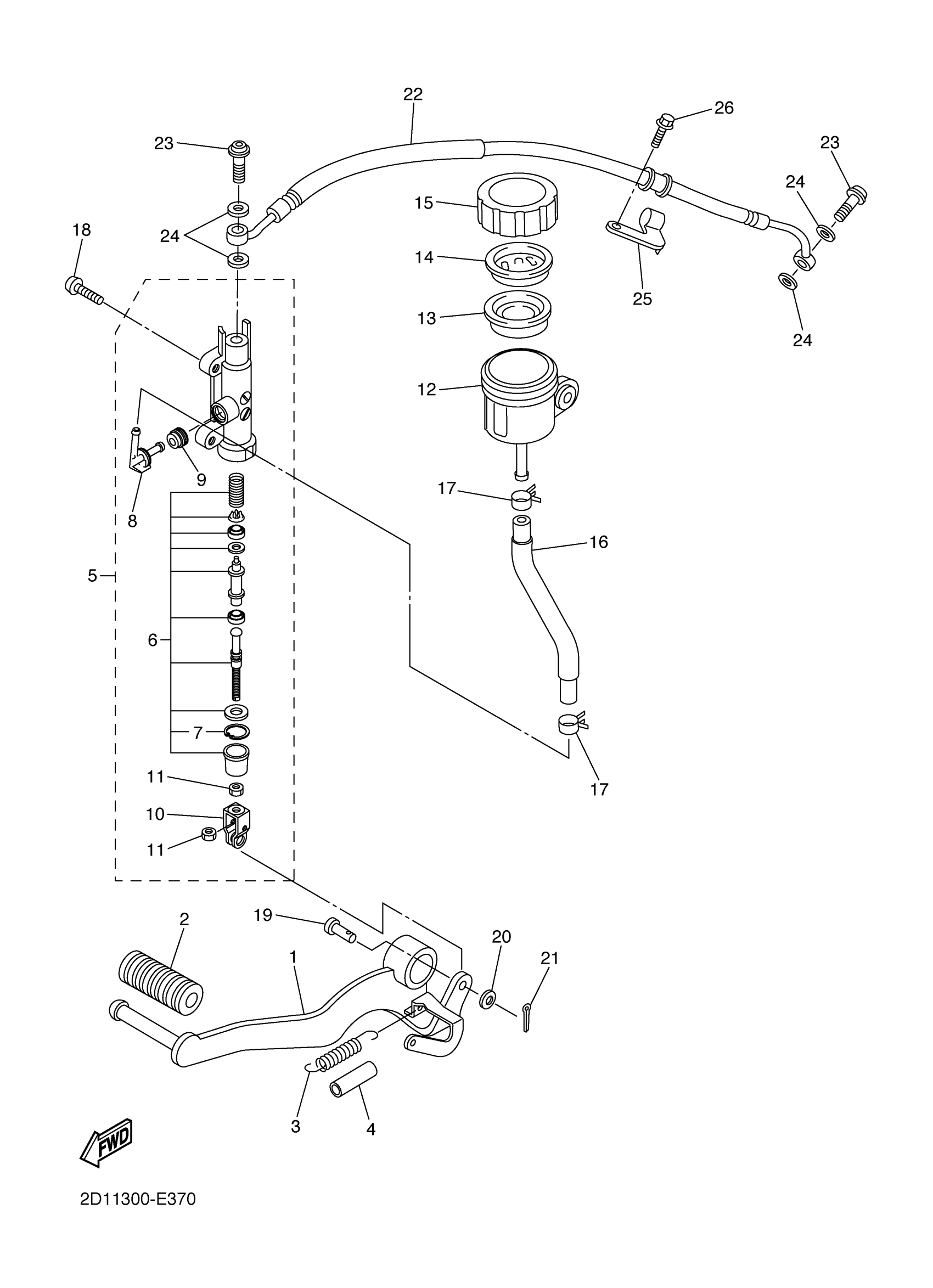

Yamaha FZS10VC (FZ-1 CA) 3C35 2006 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2D1-27211-00-00

$106.38

2

COVER, SHIFT PEDAL

5EB-18113-00-00

$6.66

3

SPRING, TENSION

90506-20014-00

Unavailable

4

HOSE

90446-15386-00

$5.53

5

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

6

CYLINDER KIT, MASTER

5VX-W0042-51-00

$80.52

7

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$2.86

8

JOINT

2D1-2582A-01-00

$97.44

9

O-RING

4BP-2585F-01-00

Unavailable

10

JOINT

4BP-27222-02-00

$25.70

11

NUT

90170-08010-00

$5.87

12

TANK, RESERVOIR

2D1-25894-00-00

$6.30

13

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$17.03

14

BUSH,DIAPHRAGM

5SL-25855-00-00

$6.29

15

CAP, RESERVOIR

5SL-25852-00-00

$22.28

16

HOSE, RESERVOIR

2D1-25895-00-00

Unavailable

17

CLIP

90467-120A3-00

Unavailable

18

BOLT, BUTTON

92014-08020-00

Unavailable

19

PIN, CLEVIS(2YK)

90240-08124-00

Unavailable

20

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

21

PIN, COTTER (648)

91490-20015-00

Unavailable

22

HOSE, BRAKE 3

2D1-25874-01-00

Unavailable

23

BOLT, UNION

90401-10172-00

Unavailable

24

GASKET

90430-10005-00

Unavailable

25

HOLDER, BRAKE HOSE

2D1-25886-00-00

Unavailable

26

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable
